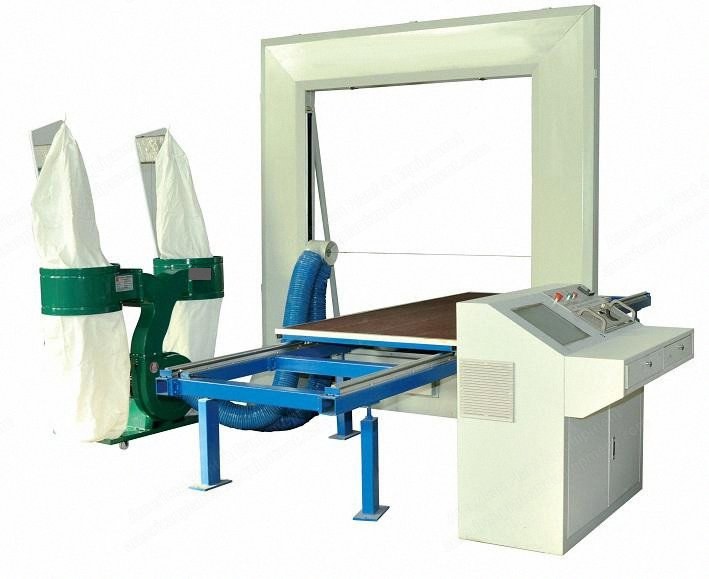

NovaStar, FN368, CNC Horizontal Fast Wire Contour Cutting Machine, 3050x2040x1300mm Max Block Size, 10 kW (New)

NovaStar, FN368, CNC Horizontal Fast Wire Contour Cutting Machine, 3050x2040x1300mm Max Block Size, 10 kW

Description

  1. Overview
    1. Operating system: Windows 7
    2. Acceptable file formats: DXF/DWG
    3. Cutting wire diameter: 1.3 to 1.5 mm
    4. Flying wheel diameter: 300 mm
    5. Cutting speed: 0 to 6 meters per minute
    6. Precision: ±0.5 mm
  2. Specifications
    1. Max. block size: 3050 mm long x 2040 mm wide x 1300 mm tall
    2. Overall dimensions: 6700 x 3100 x 2550 mm
    3. Gross weight: 1800 kg
    4. Power: 10 kW, 380/220 volts, 50 Hz (or as per client’s request)
  3. Motor And Drive
    1. ABB motor, 3 kW
    2. Speed of the wheel: 2860 rpm
    3. Panasonic inverter for 3 kW motor
  4. Included Equipment
    1. Vacuum suction unit for dust
