Babcock & Wilcox, FM-120-124, Natural Gas Boiler, 200,000 lbs/hr, 650 PSIG, 750°F

Babcock & Wilcox, FM-120-124, Natural Gas Boiler, 200,000 lbs/hr, 650 PSIG, 750°F

Description

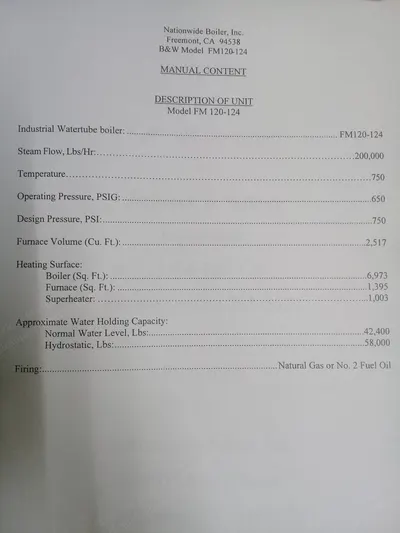

  1. Overview
    1. Natural gas fired boiler
    2. Steam flow: 200,000 lbs per hour
    3. Outlet pressure: 650 psig
    4. Steam outlet temperature: 750°F
    5. Feedwater temperature: 227°F

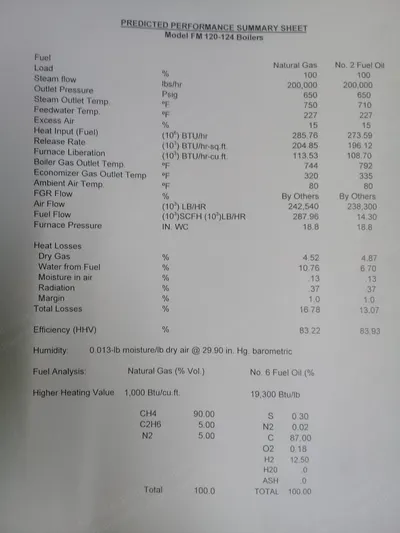

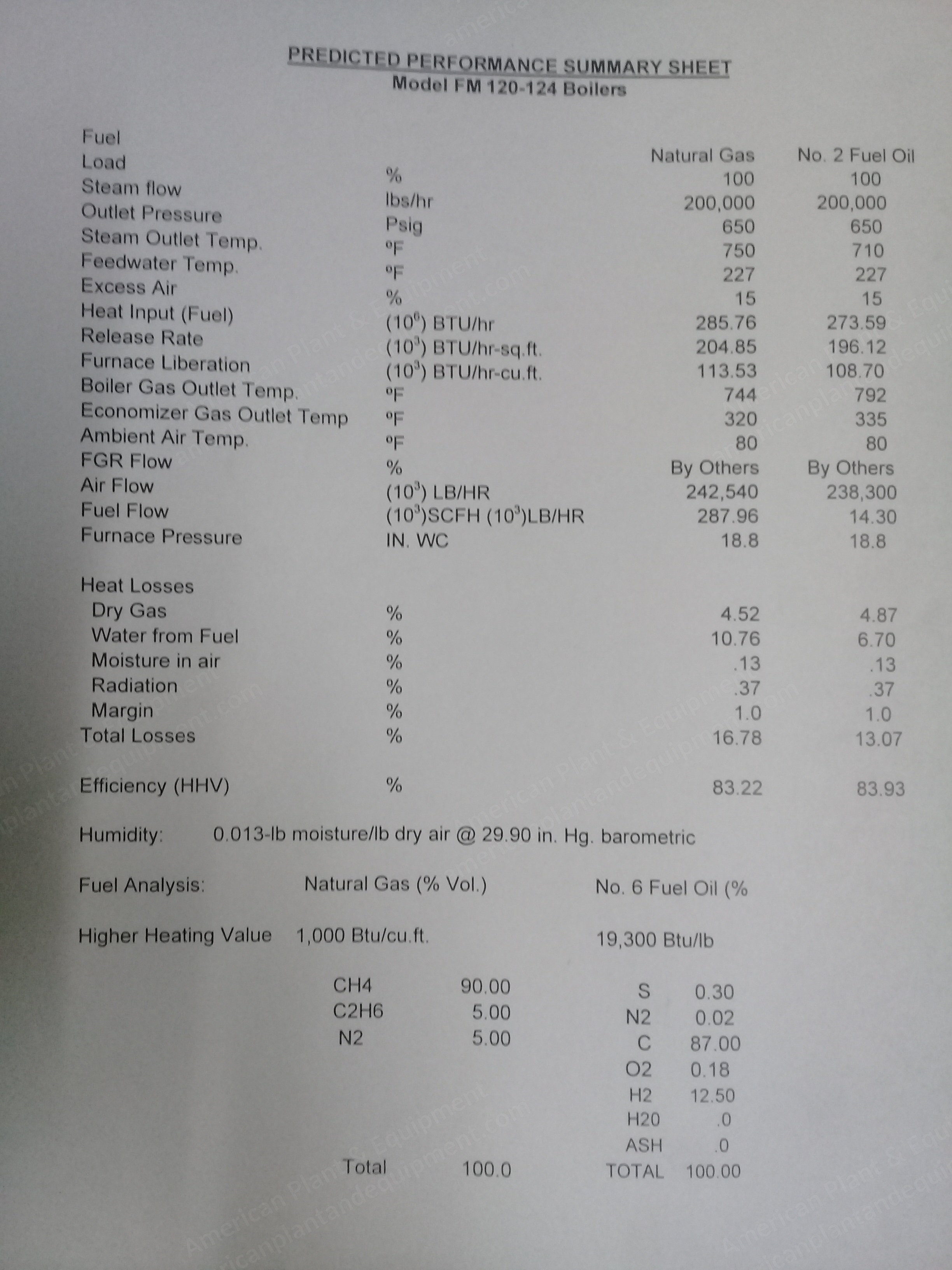

  2. Specifications
    1. Excess air: 15%
    2. Heat input: 285.76 btu
    3. Release rate: 204.85 btu per hr-sq.ft
    4. Furnace liberation: 113.53 btu per hr-sq.ft
    5. Boiler gas outlet temperature: 744°F
    6. Economizer gas outlet temperature: 320°F
    7. Ambient air temperature: 80°F
