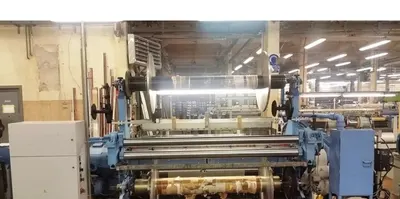

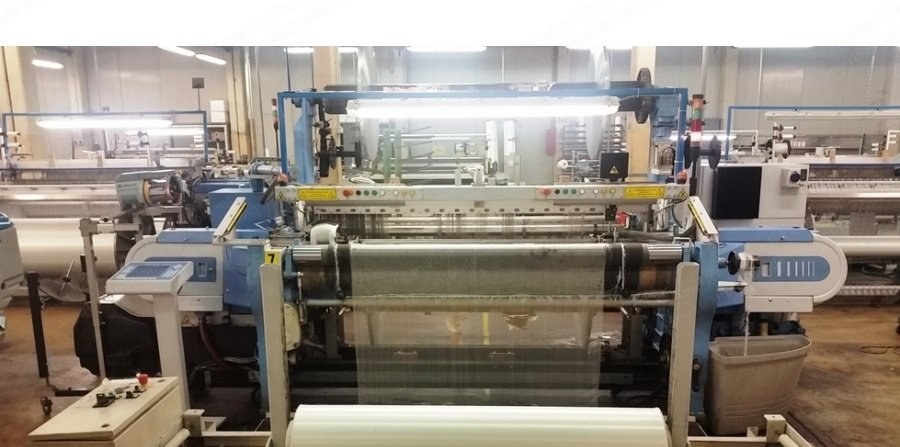

Smit, GS920, 2010, 1900mm Width, 4 Colors, Staubli Dobby 2688, For Fiberglass

Smit, GS920, 2010, 1900mm Width, 4 Colors, Staubli Dobby 2688, For Fiberglass

Description

  1. Overview
    1. Width: 1900 mm
    2. Electronic weft selector for 8 colors, 4 installed
    3. Top double beam system
    4. With inverter
    5. With Staubli dobby 2688, 20 lever capacity (12 installed)
    6. Looms are prepared for weaving fiberglass
    7. Special suction system for yarn dust removal
    8. Reinforced selvedge cutters
    9. Smooth chromium fabric press roller
    10. Fabric geometry with horizontal path
  2. Included Accessories
    1. 1 x weft feeder ROJ Chrono X2 with creel for 4 heads and 8 bobbins
    2. 6 x heald frames
    3. 2 x warp beams with flange diameter 800 mm
    4. 1 x cloth roller or available with batching motion for big rolls up to 1000 mm
  3. Quantity
    1. 2 units available
