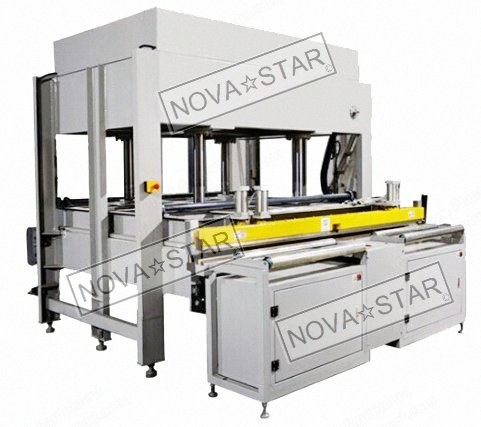

NovaStar, NG-21M, Automatic Mattress Compressing and Sealing Machine, 2100x2300mm Pressure Plate, 100 Tons Working Pressure, 380V (New)

NovaStar, NG-21M, Automatic Mattress Compressing and Sealing Machine, 2100x2300mm Pressure Plate, 100 Tons Working Pressure, 380V

Description

  1. Overview
    1. Fully automatic mattress compressing machine
    2. With automatic vacuum and heat sealing function
  2. Specifications
    1. Size of pressure plate: 2100 x 2300 mm
    2. Working pressure: 100 tons
    3. Maximum compressed height: 550 mm
    4. Distance of the opening gear: 500 mm
    5. 4 oil cylinders
    6. 6 air cylinders
    7. 5.5 kW oil pressure
    8. 3 kW heating power
    9. 3 kW pumping power
    10. 3 kW transmission power
    11. Power: 380 volts, 3 phase, 50 Hz
  3. Dimensions and Weight
    1. Machine weight: 4000 kg
    2. Machine dimensions: 5500 x 2800 x 2300 mm
  4. Additional Information
    1. More information is available upon request
