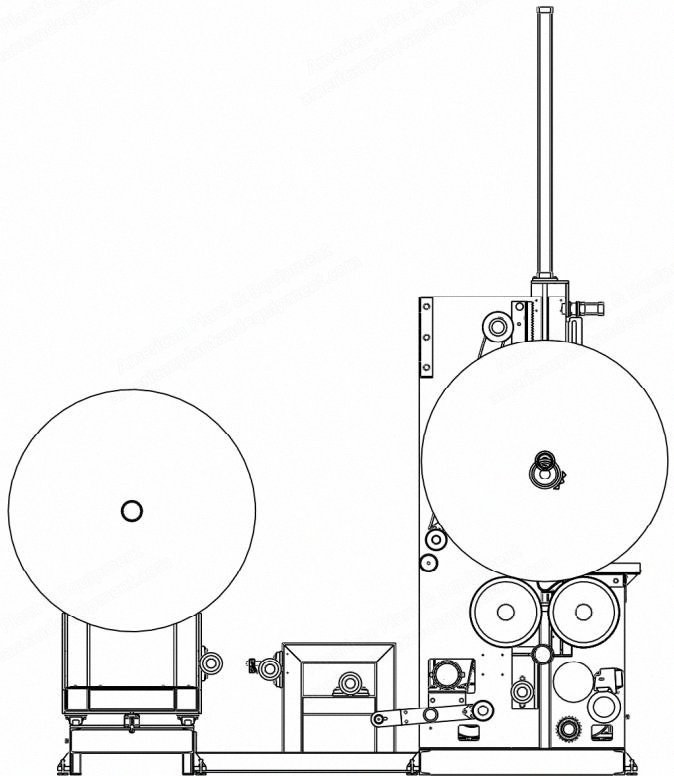

NovaStar, SR192, Spunlace Winder and High Speed Slitter, 2000mm / 2500mm Working Width, 100m/min (New)

NovaStar, SR192, Spunlace Winder and High Speed Slitter, 2000mm / 2500mm Working Width, 100m/min

Description

  1. Overview
    1. Spunlace winder and high speed slitter for industrial use
    2. Working width of winder: 2000 mm
    3. Working width of slitter: 2500 mm
  2. Spunlace Winder Specifications
    1. Design speed: max. 120 meters per minute, running 100 meters per minute
    2. Max. rolled diameter: 1200 mm
    3. 5.5 kW inverter, 1.5 kW moving motor, 1.5 kW inverter
    4. Driven roller is made of high quality nitrile butadiene rubber
    5. Linear guiding of the front and back pressing rollers
    6. Linear air cylinder
    7. All pneumatic components with Airtac product
    8. Equipped with 2 air shafts and 1 platform
    9. Emergency stop button
    10. 4 knives
  3. High Speed Slitter Specifications
    1. Design speed: 150 meters per minute
    2. With magnetic particle clutch
    3. Tension control
    4. Micro tension fuzzy and PID control
    5. Hold-down gear
    6. Pressure device with unloading push system
    7. Safety cover
    8. Independent PLC control
  4. Condition and Included Items
    1. More information is available upon request
