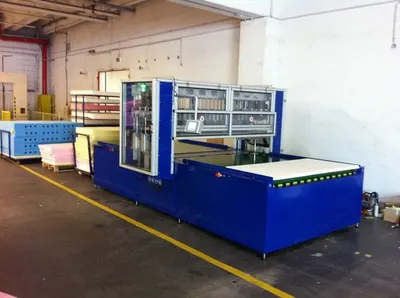

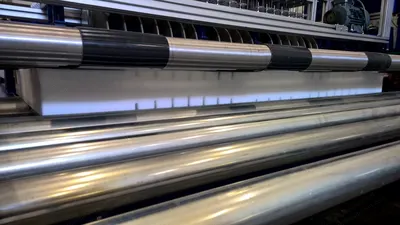

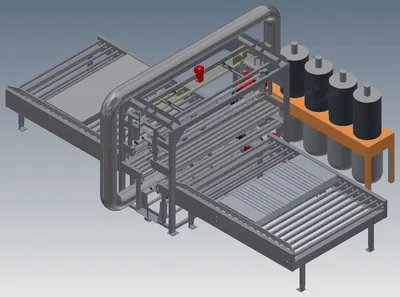

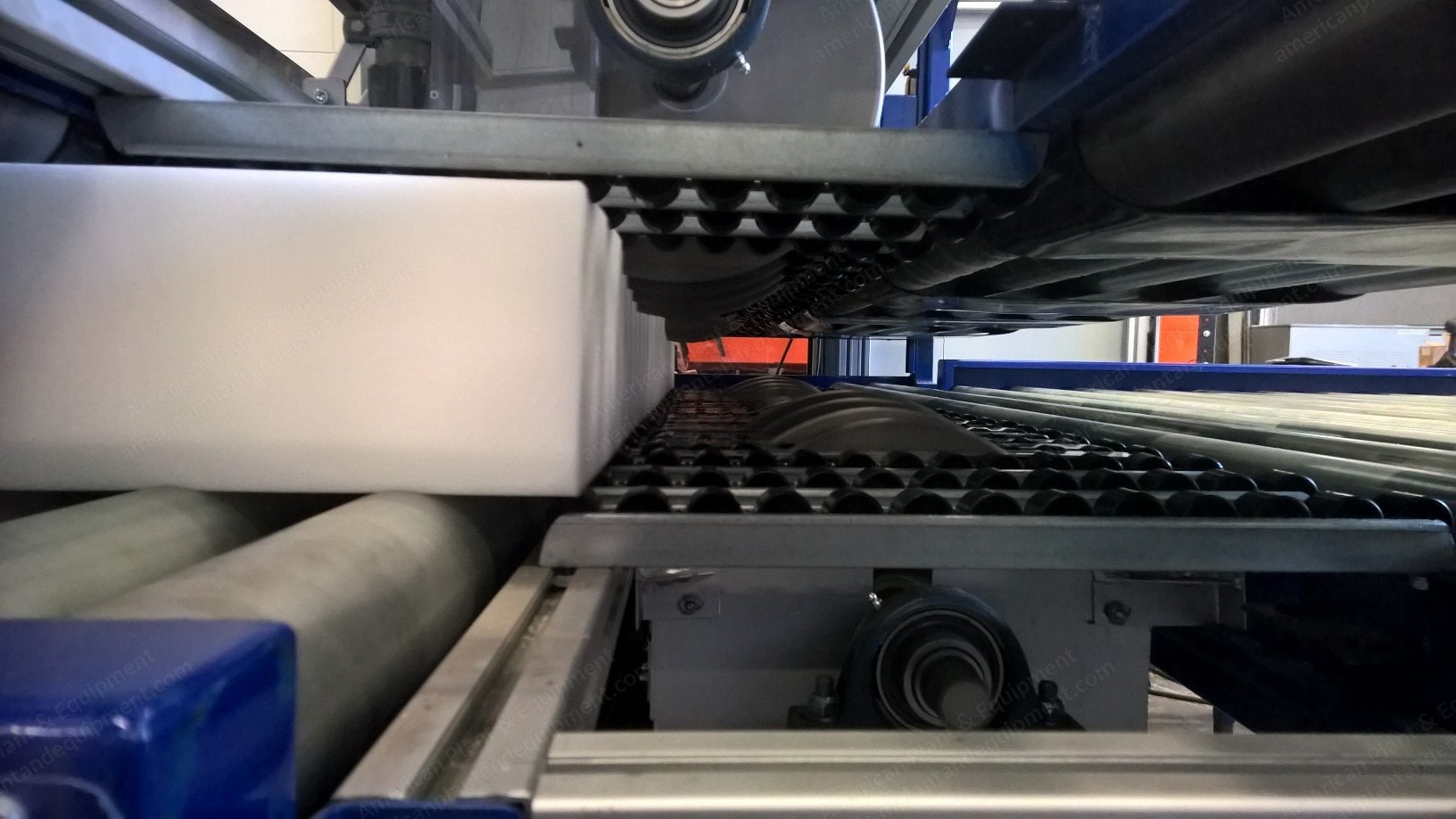

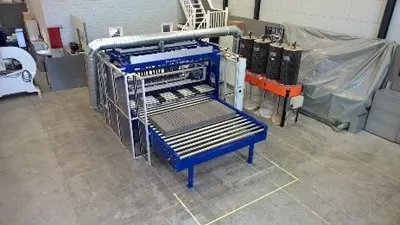

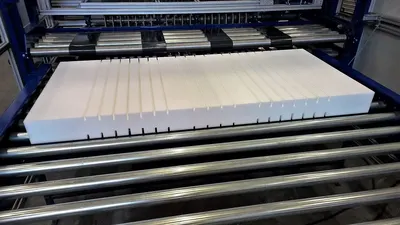

Description Overview Mattress milling machine designed for milling foam sheets Can process various types of foam, but not all kinds are possible Plates can be milled in the length or in the width The sheet must have enough body to go through the milling station The milling cutters are fixed but the depth can be adjusted Dust is extracted but a small amount may remain in the foam Position of the sheets, thickness, and depth of milling below and on top can be easily changed Machine can be built as required by the customer Specifications Dimensions: 8.5 meters long x 3 meters wide x 2.5 meters tall Length of pillow: max 2200 mm, min 800 mm Width of pillow: max 2000 mm, min 700 mm Thickness of pillow: max 300 mm, min 40 mm Production speed: 2 meters per minute Power: 380 volts, 50 Hz, 16 A Number of frees: 2 x 18 (see drawing) Condition More information is available upon request
