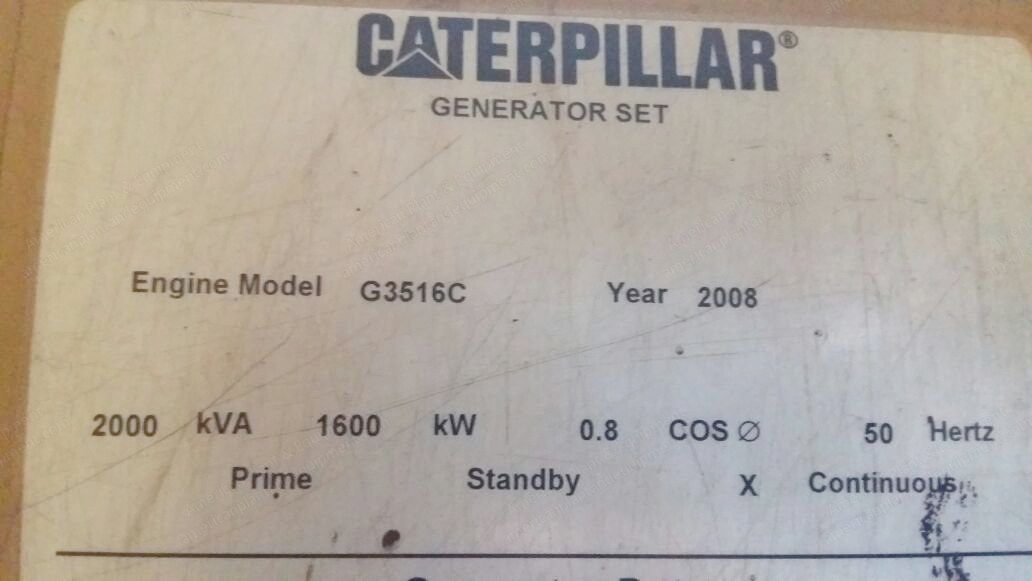

Caterpillar, G3516C, 2008, 1665 kW, 1500 RPM, 50 Hz

Caterpillar, G3516C, 2008, 1665 kW, 1500 RPM, 50 Hz

Description

  1. Overview
    1. Quantity: 3 engines

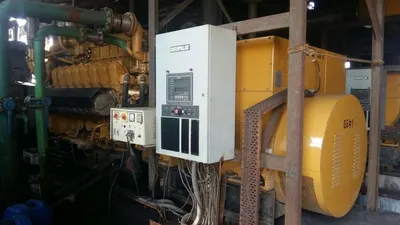

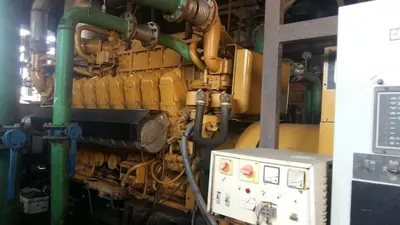

  2. Gas Engine
    1. Make: Caterpillar
    2. Model: G3516C
    3. Year of make: 2008
    4. Speed: 1500 rpm
    5. Power: 1665 kW
    6. Kva: 2000 kVA
    7. Cylinder arrangement: 16V (60 degree)
  3. Alternator
    1. Make: Caterpillar
    2. Type: SR4B - HV
    3. Serial numbers: A5A00178 / 179 / 181
    4. Voltage: 11 kV
    5. Capacity: 2000 kVA
    6. Speed: 1500 rpm
    7. Frequency: 50 Hz
    8. Power factor: 0.8
    9. Number of poles: 4
  4. Gg - Lt Pump
    1. Make: KSB
    2. Type: Mega G 40 - 160
    3. Discharge (Q): 30 m³/hr
    4. Head (H): 35 m
    5. Rpm: 2900
    6. Impeller diameter: 166 mm
    7. Motor: 7.5 kW (10.0 hp)
    8. Coupling: RRL 100/100
    9. Motor shaft diameter: 38.0
    10. Key: 10 mm x 8 mm
    11. Pump shaft diameter: 24.0
    12. Key: 8 mm x 8 mm
  5. Gg - Ht Pump
    1. Make: KSB
    2. Type: Mega G 65 - 160
    3. Discharge (Q): 95 m³/hr
    4. Head (H): 35 m
    5. Rpm: 2900
    6. Impeller diameter: full
    7. Motor: 15 kW (20.0 hp)
    8. Coupling: RRL 110/110
    9. Motor shaft diameter: 42.0
    10. Key: 12 mm x 10 mm
    11. Pump shaft diameter: 32.0
    12. Key: 10 mm x 8 mm
  6. Phe
    1. Make: Alfa Laval
    2. Type: M15 - BFM
    3. Volume: 79 ltr
    4. Design pressure: 10 bar
    5. Design temperature: 100 degree C
  7. Radiator
    1. Make: Gem Eqipments Ltd.
    2. Motor: 5.5 kW (7.5 hp)
    3. Rpm: 960.0
    4. Fan quantity: 2 nos. in each radiator (total 6 fans)
  8. Blower Fan
    1. Motor: 9.5 kW
    2. Rpm: 1455
  9. Whrb Boiler
    1. Make: Thermax - Energen
    2. Model: ENSG G8 (3E)
    3. Capacity: 3.5 ton/hr
    4. Pressure (safety valve set pressure): 17.5 kg/cm²
    5. Dryness fraction: 0.97
    6. Heating surface area of boiler: 388 m²
    7. Water holding capacity: 10.25 m³
    8. Economiser heating surface area: 131.86 m²
    9. Fuel: gas engine exhaust gas
    10. Registration number: GT / 6206
    11. Divert valve: 3 nos.
    12. Chimney: height 30 mtr, bottom dia 250 mm
    13. Exhaust gas pipeline from gas engine outlet to WHRB inlet and WHRB outlet to chimney
  10. Ibr Pipeline (Feed Pump To Whrb Inlet)
    1. Size: 2"
    2. Length: 25 mtr approx.
    3. Control valve: 1 nos.
  11. Gas Engine Accessories
    1. Gas skid (with gas filter)
    2. PRV
    3. SOV
    4. Gas flowmeter installed in individual gas engine
    5. Bellows in jacket water inlet/outlet, in after cooler inlet/outlet
    6. Gas pipeline (4"), 20 mtr approx.
  12. Eot Gantry And Supporting Structure
    1. Connected to power plant
    2. Quantity: 1 set

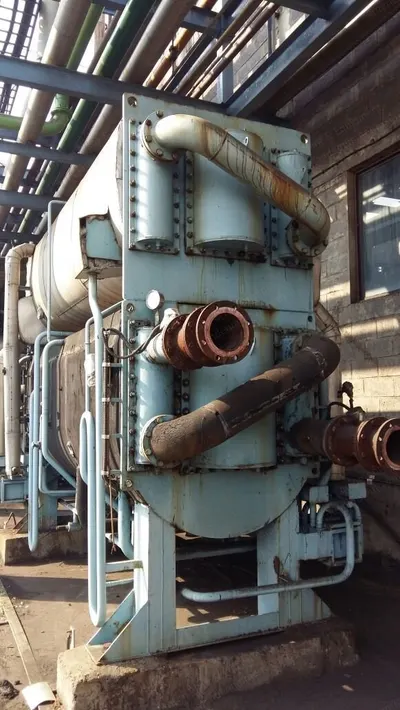

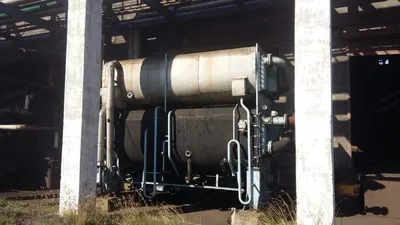

  13. Vam Machine
    1. Hot water piping with three way valve
    2. Quantity: 1 set
  14. Meter Readings
    1. GG#1: last meter reading 5440.04, total unit generated 16320120, running hrs 19963
    2. GG#2: last meter reading 5124, total unit generated 15372000, running hrs 19804
    3. GG#3: last meter reading 5836.54, total unit generated 17509620, running hrs 20269
