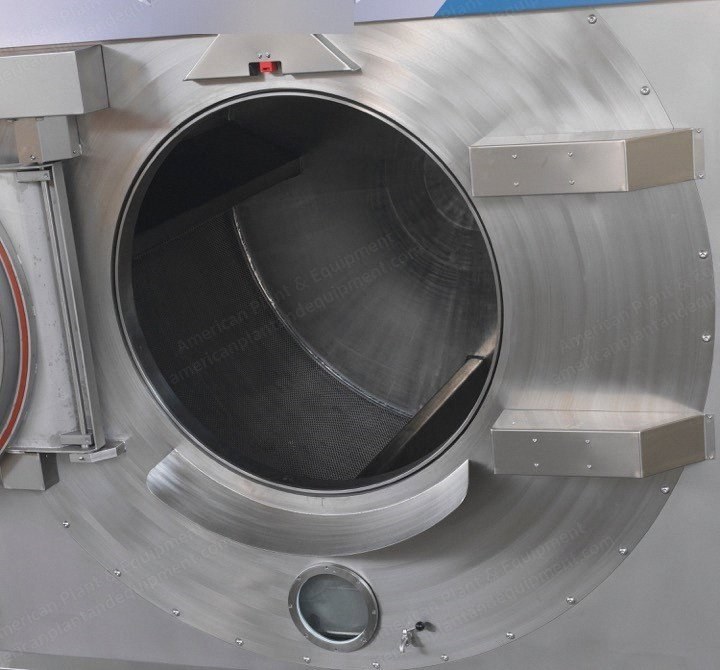

NovaStar, DG427, Stone Washing Machine, 160 to 180 kgs Capacity, 4218 Liters Volume (New)

NovaStar, DG427, Stone Washing Machine, 160 to 180 kgs Capacity, 4218 Liters Volume

Description

  1. Overview
    1. Capacity: 160 to 180 kg
    2. Drum thickness: 5 mm
    3. Diameter: 1865 mm
    4. Depth: 1545 mm
    5. Volume: 4218 lt
  2. Specifications
    1. Spin speed: 550 rpm
    2. Steam connection: Ø 1"1/4
    3. Water inlet connection: Ø 2x2"
    4. Bath drain dimension: Ø DN 150
    5. Compressed air inlet connection: Ø 1/4"
    6. Steam in max pressure: 8 bar
    7. Water in max pressure: 4 bar
    8. Compressed air max pressure: 8 bar
    9. Powered installed: 27 kW
    10. Voltage: 400 V-50/60 Hz
    11. Products tank: 90 lt
    12. Tank rinsing valve: Ø ¾"
  3. Machine Size
    1. Width: 2250 mm
    2. Depth: 3050 mm
    3. Height: 2900 mm
  4. Additional Information
    1. More information is available upon request.
