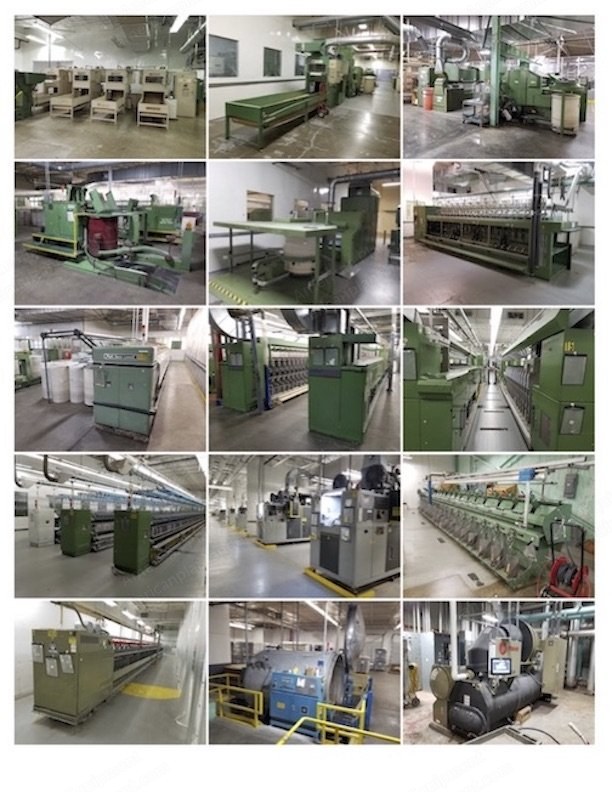

Ring and Open End Spinning Plant, 135,000 lbs/week Capacity, Polyester/Rayon/Wool/Technical Yarns

Ring and Open End Spinning Plant, 135,000 lbs/week Capacity, Polyester/Rayon/Wool/Technical Yarns

Description

  1. Overview
    1. Capacity: 135,000 lbs per week open end yarn balanced on 12/1 Ne
    2. 125,000 lbs per week ring spun yarn balanced on 16/1 Ne
    3. Runs polyester, rayon acetate, wool, technical yarns up to 2.5” staple
  2. Opening And Blending
    1. 18 x Fiber Control (USA) opening/blending lines with manual feed
  3. Cards
    1. 18 x Marzoli cards type CX300 – sliver data – 1991/1996 year
    2. 06 x Trutzschler cards type DK903 – 2000 year
  4. Draw Frames
    1. 30 x Rieter draw frames models SB51, SB851, RSB 851 and RSB 951 – 1990/1998 year
  5. Roving Frames
    1. 06 x Saco Lowell Rovematic roving frames type FB 1D – 1975/1982 year
    2. 06 x Zinser roving frames type 670 – 1998/2000 year
  6. Ring Spinning Frames
    1. 06 x Zinser ring spinning frames type 350 linked to Schlafhorst 338V – 75 mm ga - 48 mm ring Ø – 2002 yr
      1. 5 x 1080 spindles each linked to 28 position winders
      2. 1 x 480 spindles linked to 12 position winder
    2. 12 x Zinser ring spinning frames type 321E linked to Schlafhorst 238 – 75 mm ga - 42 mm ring
      1. 6 x 1080 spindles each linked to 28 position winders
      2. 2 x 640 spindles linked to 20 position winders
      3. 4 x 484 spindles linked to 12 position winders
    3. 16 x Whitin ring spinning machines – 288/216 spindles each – 65 mm ring
  7. Open End Spinning Machines
    1. 07 x Savio open end spinning machines type RFS T2C – 1998/99 year – 240 positions each
    2. 01 x Savio open end spinning machine type RFS – 1998 year – 48 positions each
  8. Twisting And Winding
    1. 01 x Saurer precision assembly winder – 2002 year
    2. 06 x Saurer Allma 2/1 twisters – 2002 year – 144 positions each
    3. 03 x Savio automatic winders type Espero – 2002 year
      1. 2 x 40 positions each
      2. 1 x 16 positions
  9. Conditioning And Packing
    1. 01 x Xorella conditioning machine – 2011 year
    2. 01 x packing line with automatic strapper
  10. Quality Control And Utilities
    1. 01 x Uster yarn lab with UT4, Classmate II, Booth auto reel, twist checker, etc.
    2. 01 x Trane chiller type CVHE 500 – 500 ton – 2016 year
