Thread type: textured thread linear density from 9 tex to 25
Year: 1999
Productivity: 600-1200 kg/day, depending on the range of produced yarn
Number of sections: 9
Number of texturizers: 108
Number of workplaces: 54
Two-level machine
Single side machine
Optimal working thread receiving speed: 550 m/min
Input package weight: 15 kg
Output package weight: 4.0 kg
Output cartridge diameter: 69 mm, with rolled side 57 mm, length 290 mm
On the creel, it is possible to tie the reserve end of the yarn of one package to the beginning of another package
Texturizers consist of 2 discs ceramic (input and output), 7 polyurethane

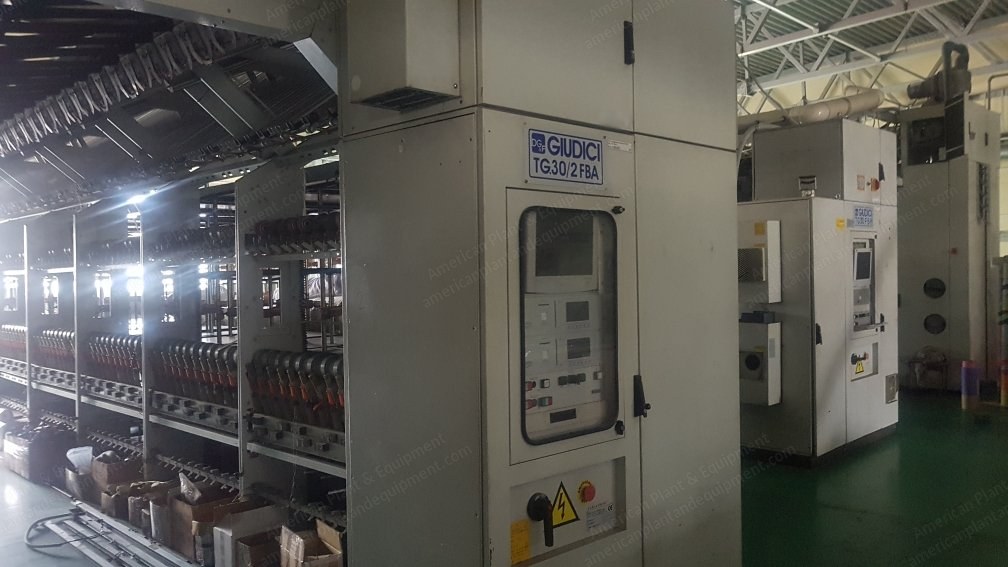

Machine 2: Ssm Giudici Tg. 30/2 Fba (Dty)
Thread type: textured textured pneuma thread of the following structures: from 12 tex x 2 (linear density 24 tex) up to 25 tex x 2 (linear density 50 tex)
Year: 1999
Productivity: 1200-1800 kg/day, depending on the range of produced yarn
Number of sections: 13
Number of texturizers: 156
Number of workplaces: 78
Three-level machine
Single side machine
Optimal working thread receiving speed: 550 m/min
Input package weight: 15 kg
Output package weight: 4.0 kg
Output cartridge diameter: 69 mm, with rolled side 57 mm, length 290 mm
On the creel, it is possible to tie the reserve end of the yarn of one package to the beginning of another package
Texturizers consist of 2 discs ceramic (input and output), 7 polyurethane
There are nozzles for obtaining a textured pneumatically connected yarn
It is possible to produce a textured pneumatically connected yarn in two pieces
