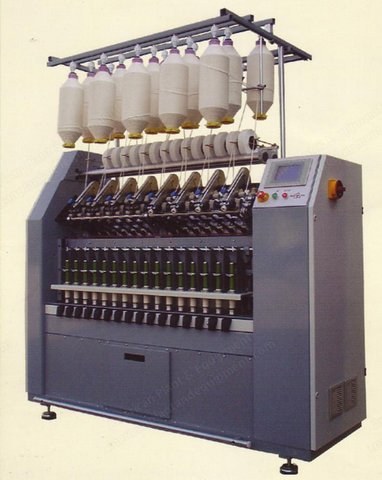

Sermates, I-Spin, 2014, Laboratory Spinning Frame, 16 Spindles, Gauge 75mm, Ring 42mm

Sermates, I-Spin, 2014, Laboratory Spinning Frame, 16 Spindles, Gauge 75mm, Ring 42mm

Description

  1. Overview
    1. One front feeding kampatzu bobbin holders
    2. 16 spindles
    3. Manual doffing
    4. Lycra device
    5. Siro device
    6. Multicount and multi-visit
  2. Specifications
    1. Gauge: 75 mm
    2. Ring: 42 mm
    3. Nose bars: 40 mm
    4. Cradle small for nose bars of 40 mm
    5. Drafting 3 over 3
    6. Drafting range for 60 fiber length
    7. Anti-balloon diameter: 45 mm
    8. Spindles tube: 230 mm
    9. Spindles drive by type
    10. Meter counter with display
    11. Voltage: 380 volts, 3 phase, 50 Hz
  3. Drafting Components
    1. Tex parts drafting, PK-2025
    2. Tex parts bearing for the bottom rollers
    3. Texparts bottom rollers bearing
  4. Yarn Handling
    1. Yarn brakes suction spindle by spindle
    2. Air discharge into the floor
    3. Outlet of main cables and air compressor piping from the floor
