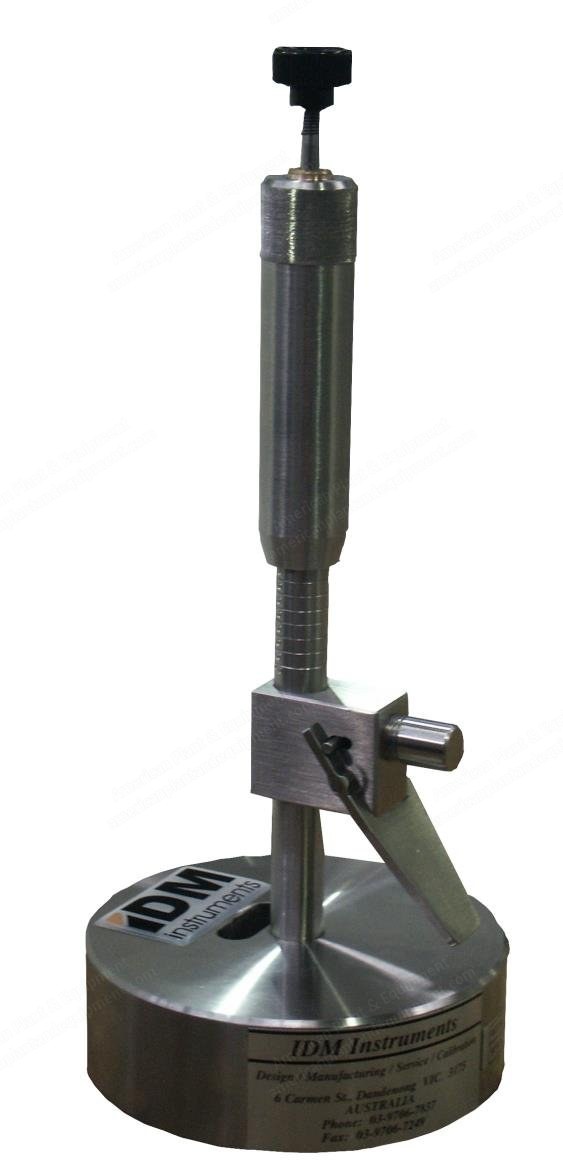

IDM, I0003, Small Ball Impact Tester, 0-90N Spring Force, Stainless Steel (New)

IDM, I0003, Small Ball Impact Tester, 0-90N Spring Force, Stainless Steel

Description

  1. Overview
    1. Used to measure the resistance of impact on laminated surfaces and floor covering elements by the minimum impact force needed to cause visible damage to the surface under test.
    2. Applications: laminated surfaces and floor coverings.
  2. Specifications
    1. Height: 320 mm
    2. Width: 120 mm
    3. Depth: 120 mm
    4. Weight: 3.5 kg
  3. Standards
    1. ISO 24335:2006
    2. ISO 4586-2
    3. EN 438-2:2005
  4. Features
    1. Newton-force scale
    2. Adjustable spring compression force: 0 - 90 N
    3. 100 mm long compression spring
    4. Impact release lever
    5. Force-setting barrel
    6. 10 steel balls (5 mm)
    7. Stainless steel construction
  5. Condition
    1. More information is available upon request.
