NovaStar, QL207, Computerized Single Needle Quilting Machine, New, Lock Stitch, 3000 stitches/min (New)

NovaStar, QL207, Computerized Single Needle Quilting Machine, New, Lock Stitch, 3000 stitches/min

Description

  1. Overview
    1. Multi-needle quilting machine available in four models: 2526, 2628, 2830, and 3232.
    2. Stitch type: lock stitch.
    3. Stitch length: 2 to 6 mm.
    4. Maximum quilting density: 2100 g/m².
    5. Speed: 3000 stitches per minute.
  2. Specifications by Model

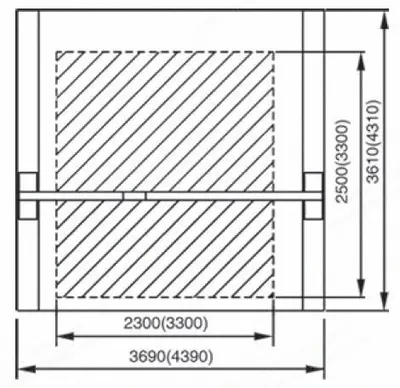

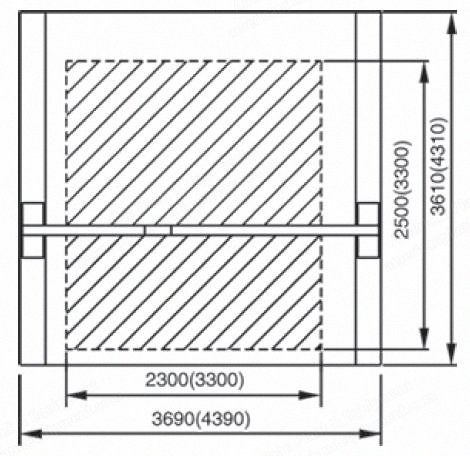

    1. Model 2526: material size 2750 x 2850 mm, max quilting size 2500 x 2600 mm, dimensions 4030 x 4060 x 1500 mm, packing size 4060 x 2050 x 1470 mm (steel stand), weight 1750 kg.
    2. Model 2628: material size 2900 x 3100 mm, max quilting size 2600 x 2800 mm, dimensions 4100 x 4140 x 1500 mm, packing size 4300 x 2050 x 1470 mm (wooden box), weight 1830 kg.
    3. Model 2830: material size 3100 x 3300 mm, max quilting size 2800 x 3000 mm, dimensions 4340 x 4280 x 1500 mm, packing size 4420 x 2050 x 1470 mm (wooden box), weight 1940 kg.
    4. Model 3232: material size 3500 x 3550 mm, max quilting size 3200 x 3200 mm, dimensions 4800 x 4640 x 1500 mm, packing size 4830 x 2050 x 1470 mm (steel stand), weight 2050 kg.
  3. Standard Features
    1. Automatic thread cutter.
    2. Walking presser foot.
    3. 5 x Panasonic servo motors.
    4. 10.4-inch touch screen computer.
    5. Computer functions: auto thread trimming, thread break detection, remembering stop position and automatic return to stopping point, emergency stop with one push of a button, can enhance sewing by back stitching after sewing a pattern, stitch length can be defined, automatic speed adjustment, automatic needle and rotary hook adjustment, jump quilting function, stitch statistic to count machine output, set bobbin change time by stitch or sheet number (can set the machine to stop automatically before the bobbins run out), can store up to 300,000 stitches and 200 patterns, surge protection, USB or WiFi input pattern.
  4. Optional Equipment
    1. Safety protection.
    2. Easy frame changer.
    3. Automatic frame changer.
    4. WiFi/USB pattern transfer.
    5. Quilting frame and clamps.
    6. Quilting patterns.
  5. Additional Information
    1. More information is available upon request.
