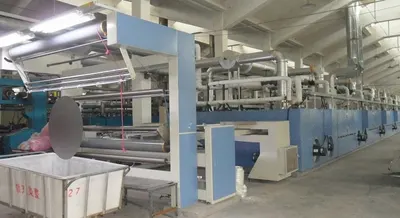

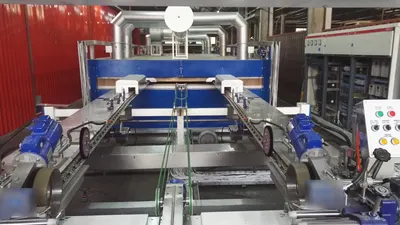

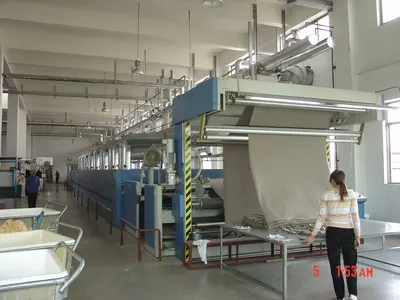

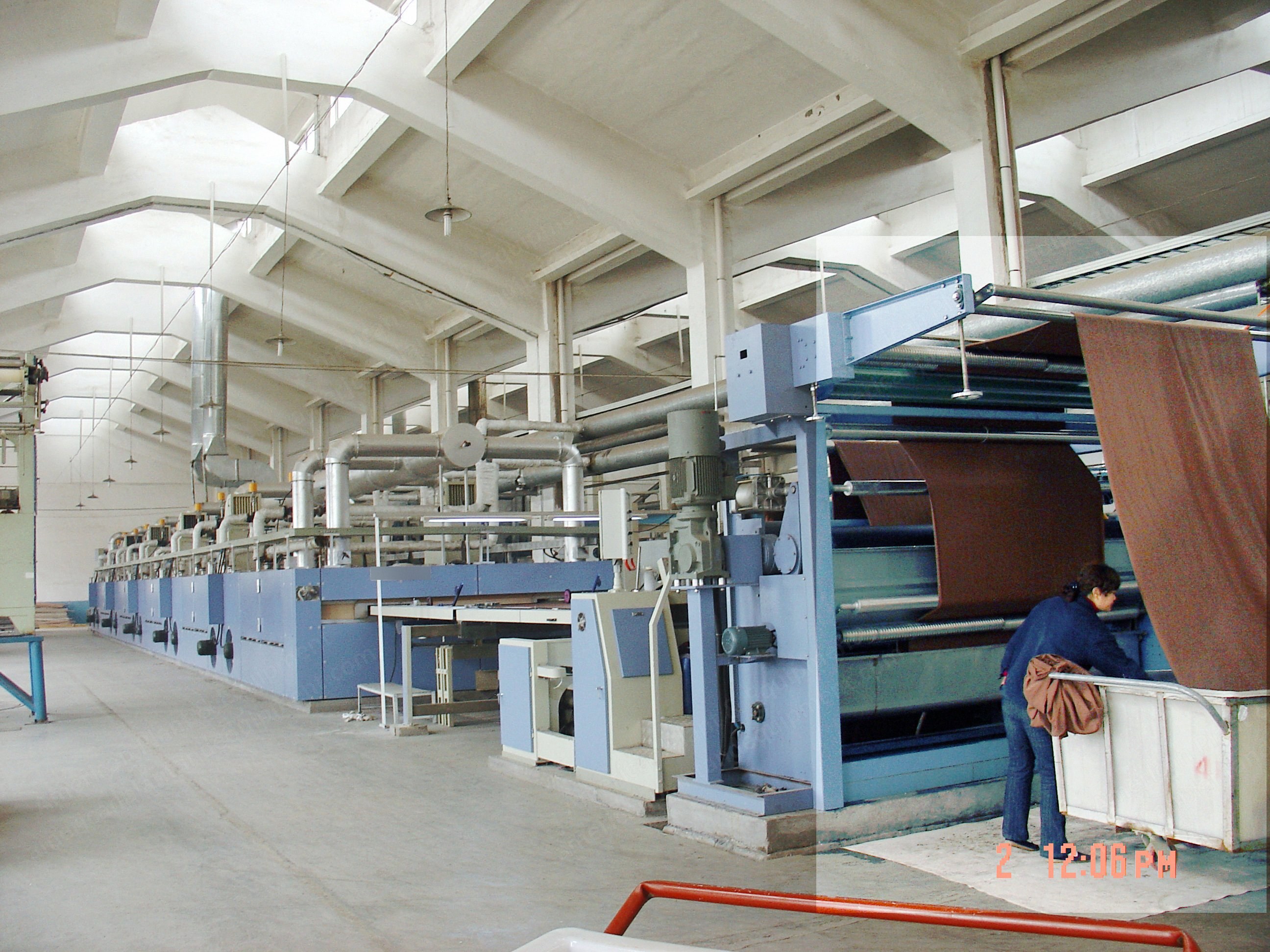

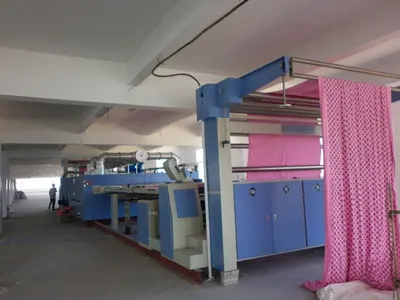

Description Overview Chain travel is horizontal Heat setting pattern: hot air circulation Chains pattern: pitch 60 mm, stainless steel chains Rail pattern: stainless steel rail, graphite strip, non oil lubrication Main chain driven pattern: right and left chains are driven separately Working width control pattern: working width of each chamber adjusts separately Air delivery pattern of the heating chamber: upper blower chamber and lower blower chamber control air volume separately Power And Utility Specifications Machine standard power: 480 V (±5%) 60 Hz 3PH (or as per customer’s requirements) Control power: 220 V, 24 V Applicable steam specification: 3-6 kg/cm² saturated steam Steam consumption: 0-150 kg/hour Applicable compressed air specification: 0.3-0.6 MPa compressed air without moisture Maximum temperature of the heating chamber: 220 °C Circulation oil consumption: 80000-140000 kcal/h·chamber (0.33-0.6 GJ) Natural gas consumption: 8-15 m³/h·chamber (about 6.5-12 kg) Dimensions And Working Parameters Pin plate maximum working width: 2000 mm-3000 mm Heating chamber width: 000 mm/chamber Mechanical speed: 5-80 m/min Machine dimension (max): L = 18000 + 3000 mm/chamber * n chamber, W = 2700 + working width, H = 3000 Machine weight: about 12 tons + 4.5 ton/chamber Insulated panel thickness: 150 mm Machine colour: jewelry blue + crystal white Power Distribution Padder/foulard: 12.5 kW Glueing, cutting, sucking device: 6.74 kW (optional) Pneumatic edge spreader: 3 kW Driven device: 45 kW Each chamber power: 15.75 kW
