Complete Weaving Preparation, Compressor Room, and Weaving Batch

Complete Weaving Preparation, Compressor Room, and Weaving Batch

Description

  1. Preparation

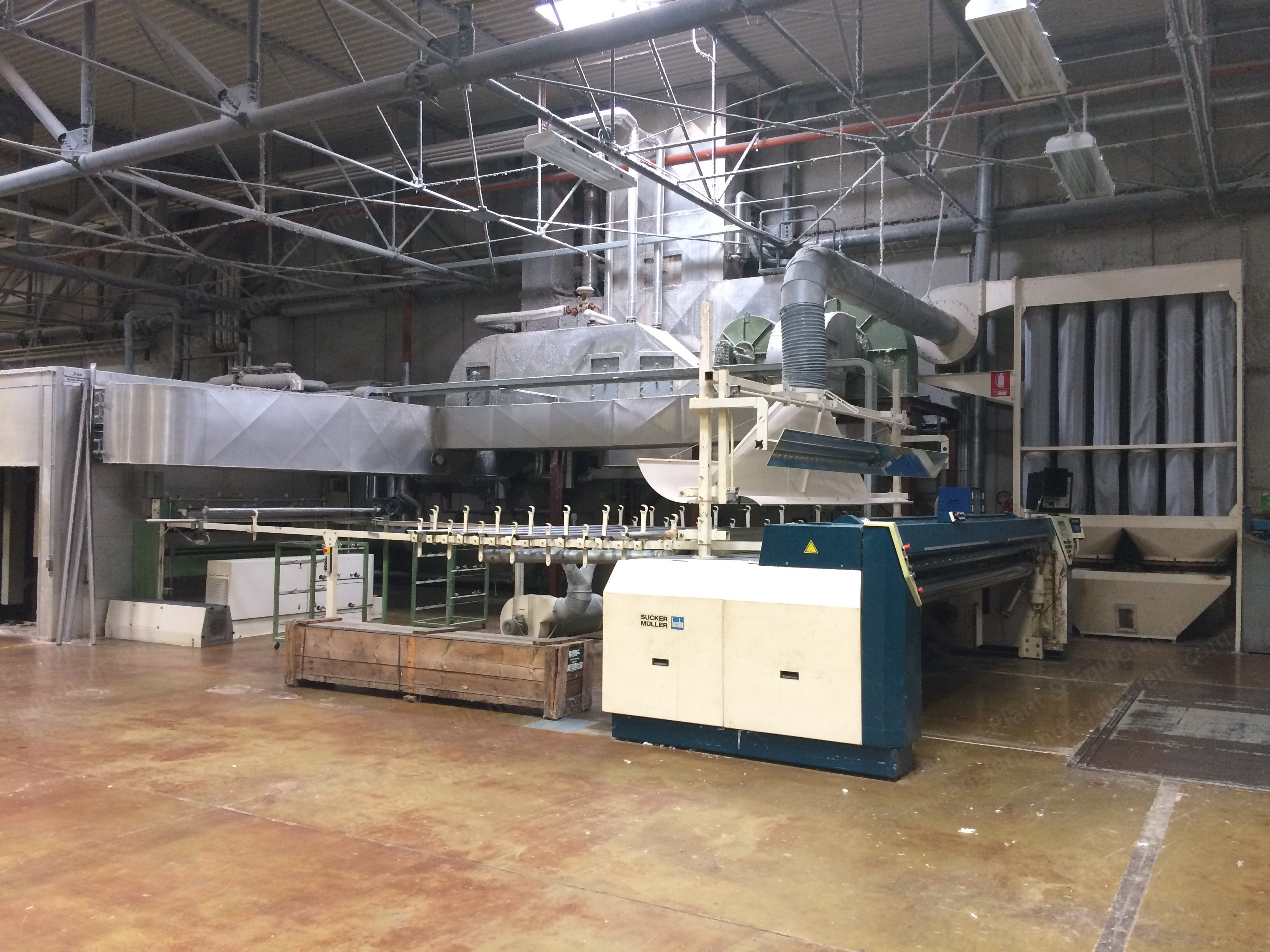

    1. Complete sizing machine Sucker Müller Hacoba
    2. Consisting of creel for 32 warp beams (4 x 8 frames) diameter 1000 mm with pneumatic disc brakes, max. working width warp beams 2000 mm

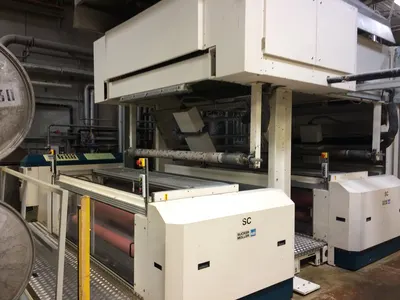

    3. Double Sucker Müller sizing bath type SC50, serial numbers S120001321 / S120001322, year of construction 07/2001, max. size width 2200 mm, computerized
    4. Preparation kitchen Sucker-Müller type RK, serial number BLS-003545 with display panels
    5. 2 + 10 heated drying cylinders, of these 8 x Teflon-coated
    6. 1 beaming machine Sucker Müller type WE-10PC, construction year 2001, computerized, max. width 4400 mm, for beams with max. diameter 1100 mm
  2. Direct Warping Machine

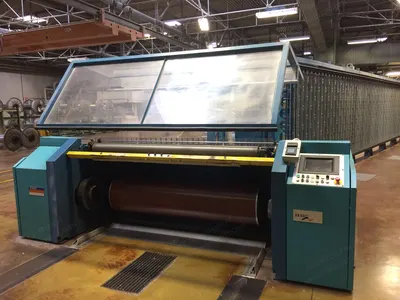

    1. Benninger direct warping machine type Ben-Direct ZS98-1000, serial number 300745010/02, year of construction 2002, for warp beams maximum working width 2000 mm and maximum diameter flanges 1000 mm

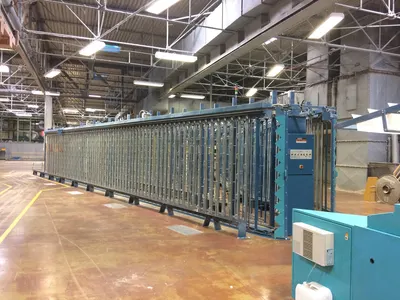

    2. With V-creel Benninger of (2x) 720 positions type GE/Benstop 720 which has been automatized by Primon in 2008, with full-automatic filling system of the creel (robot) Staubli type RX 260L year of construction 2008, including 50 warp beams
  3. Compressor Room
    1. Compressor Atlas Copco type ZR500, serial number APF S99494901, year of construction 2010, 500 kW - 671 hp, water-cooled oil free air fixed speed screw compressor, maximum working pressure 8.6 bar, input power 437 kW, 1485 r/min, compressor output 92 m³/min - 1533 liter/sec, with maintenance manual, inclusive visit reports Atlas Copco
    2. Compressor Atlas Copco type ZR500 VSD 8.6, serial number APF144091, year of construction 2009, 500 kW - 671 hp, water-cooled oil free air fixed speed screw compressor, maximum working pressure 8.6 bar, input power 497 kW, 2180 r/min, compressor output 92 m³/min - 1533 liter/sec, with maintenance manual, inclusive visit reports Atlas Copco
    3. Compressor Atlas Copco type ZR4-52, serial number ATF007397, year of construction 1993, 250 kW, water-cooled oil free compressor, maximum pressure 8 bar, compressor output 38.5 m³/min
    4. Air dryers Atlas Copco type FD1600 W FS, year of construction 2010, 11.8 kW, maximum working pressure 13 bar - 188 psi, compressor output 107.6 m³/min
    5. Air dryer Atlas Copco type FD560, working pressure 20 bar
  4. Weaving Batch
    1. 4 x Picanol air jet weaving looms type Omniplus800-4-P-280, year of construction 2005, working width 2800 mm, 4 colours, cam box Staubli type 1751A with 6 levers installed, each equipped with 3 weft accumulators 2231 Canplus, easing motion, 4 heald frames, QSC, 1 warp beam Ø 1100 mm, air tucking L&R, batching motion Ferber, 5 warp stop motion bars
    2. 4 x Picanol air jet weaving looms type Omniplus800-4-R-360, year of construction 2005, working width 3600 mm, 4 colours, electronic Staubli dobby type 2861B with 16 levers, each equipped with 4 weft accumulators 2231 Canplus (3 looms) / 1131 Canplus (1 loom), easing motion, 8 heald frames, 1 warp beam Ø 1100 mm, 3 to 6 warp stop motion bars, batching motion Ferber
    3. 12 x Picanol air jet weaving looms type Omniplus800-4-P-340, year of construction 2005, working width 3400 mm, 4 colours, cam box Staubli type 1751A (11x) / 1761A autolevel (1x), each equipped with 3 weft accumulators 2231 Canplus or 1131 Canplus, easing motion, 4 heald frames, QSC, 1 warp beam Ø 1100 mm, air tucking L&R, batching motion Ferber, 5 warp stop motion bars
    4. 16 x Picanol air jet weaving looms type Omniplus800-4-P-340, year of construction 2010, working width 3400 mm, 4 colours, cam box Staubli type 1751A with 6 levers installed, each equipped with 3 weft accumulators 2231 x2, easing motion, 4 heald frames, QSC, 1 warp beam Ø 1100 mm, air tucking L&R, batching motion Giovanelli, with LDEC
  5. Auxiliary Equipment
    1. 1 x paternoster creel make Giovanelli type Mag.Orizz.4P, serial number 25071086, year of construction 2005, for 36 warp beams, maximum diameter warp beams 1100 mm, width of the beams 3165/3765/4165 mm, max weight per beam 800 / 1500 kg, distance between the bars 1680 mm, total length of the chain 60.480 mm, average search time 4 minutes, total length of the installation 15.600 mm x total height 5.460 mm x total width 5.360 mm
    2. 1 x paternoster creel make Giovanelli, year of construction 2010, for 20 warp beams, maximum diameter warp beams 1100 mm, width of the beams 3165/3765/4165 mm, max weight per beam 800 / 1500 kg, distance between the bars 1680 mm, total length of the chain 30.240 mm, average search time 4 minutes, total length of the installation 8.020 mm x total height 5.460 mm x total width 5.250 mm
    3. 1 x electrical beam transporter T380 Jungheinrich type EJE22, serial number 80552423/723, year of construction 1996, for moving warp beams until 380 cm length, max. loading 2200 kg
    4. 1 x electrical beam lifter transporter T200 Jungheinrich type EMC, for moving warp beams until 200 cm length, max. loading 1000 kg
    5. 1 x electrical QSC lifter Giovanelli type Toplift CR, serial number 3001292, year of construction 2010, CE, usable for changing quick style change modules T340 from weaving machines width maximum width T340, load capacity 2000 kg
    6. 1 x electrical beam/frame lifter Giovanelli type Toplift L1100, serial number 30031293, year of construction 2010, CE, usable for changing warp beams and heald frames until width T360 from weaving machines, load capacity 2000 kg
    7. 1 x electrical beam/frame lifter Ferber type ET-2002-F35, serial number A11538, year of construction 2001, CE, usable for changing warp beams diameter until 1100 mm and heald frames until width T360 from weaving machines, carrying weight maximum 3000 kg, battery 48 volt, max. speed 4 km/h
    8. 1 x electrical pallet side transporter Giovanelli type Semov. Elettron. TPT, serial number 31051349, construction year 2011
    9. 1 x semi-automatic drawing machine Knotex type HM/V8 340 1A Plus, serial number 619 920/831, used for selecting the warp ends coming from the weaving beam when making new heald mountings during the manual drawing in preparation, maximum working width 3400 mm
