Complete Terry Dyeing & Finishing Plant

Complete Terry Dyeing & Finishing Plant

Description

  1. Overview
    1. For the production of high quality terry towel.
    2. For sale as one whole plant or individually.
    3. 14 7604 – our V-1066.

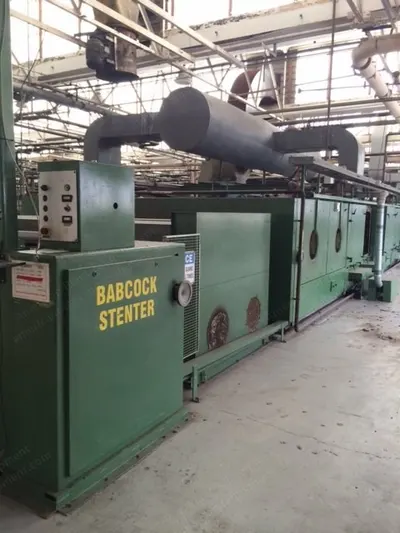

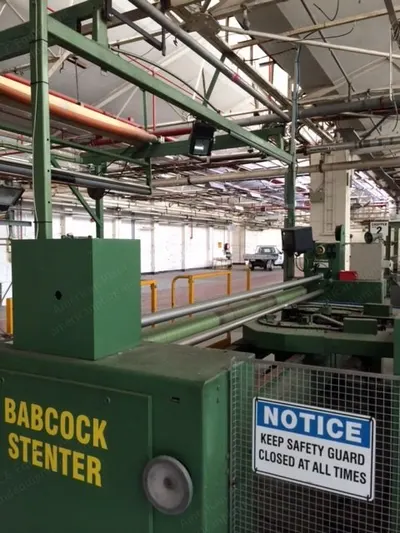

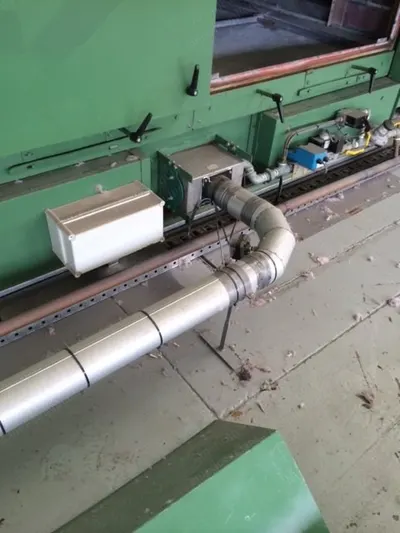

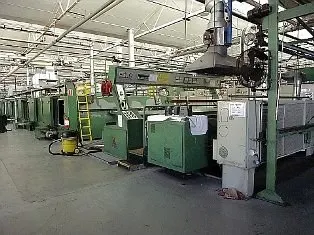

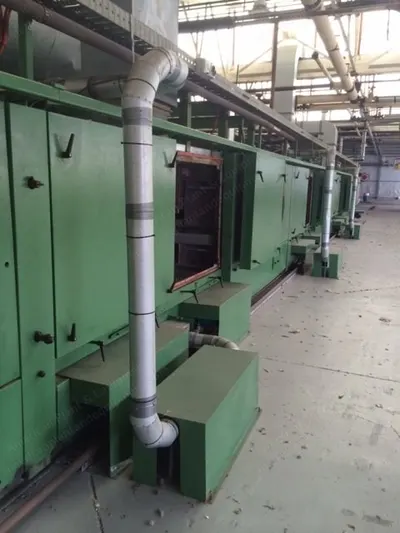

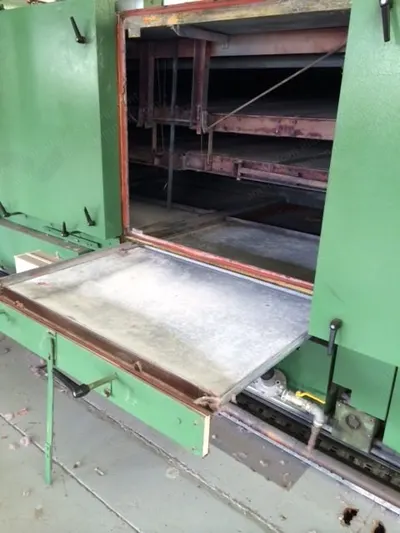

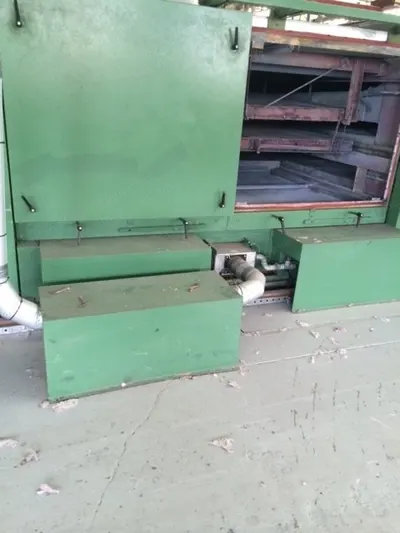

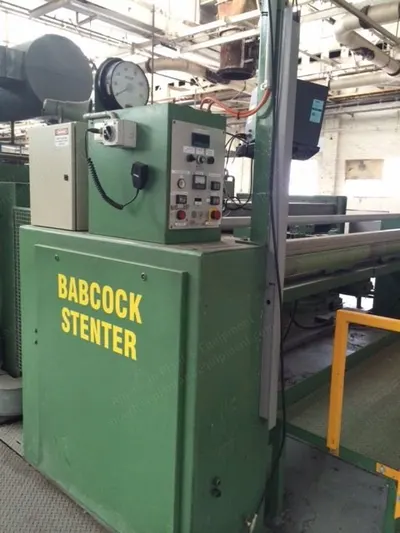

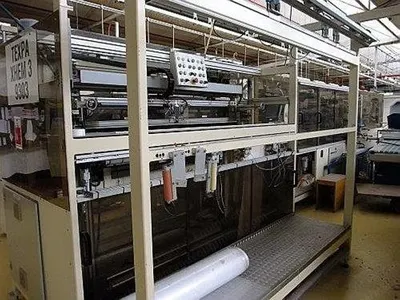

  2. Babcock Stenter
    1. Type 5000-5800, year 1990.
    2. 8 chambers, 300 cm max. width.

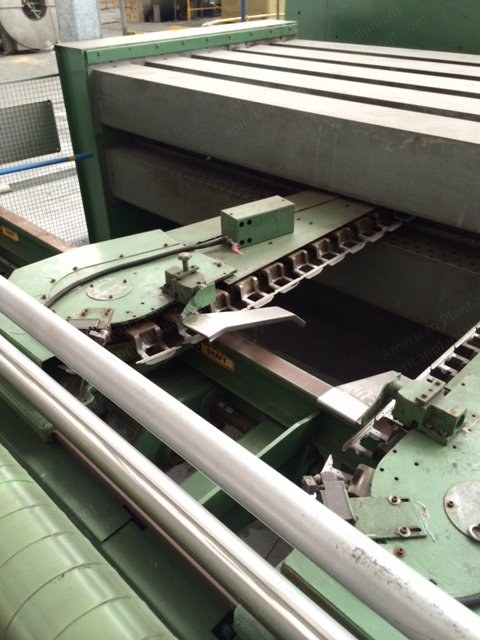

    3. Horizontal return pin chain (originally pin/clip).
    4. Entry with Heinz Hergeth Pol Rotor type PH D GF 300.
    5. Mahlo weft straightener type RF MD 76 AS.

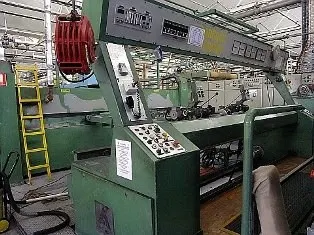

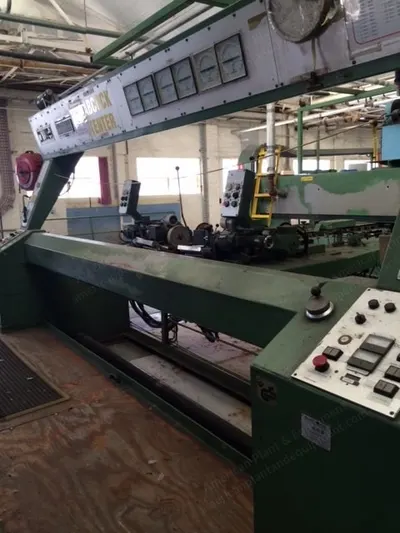

    6. Stenter entry with operator platform, high control gantry.

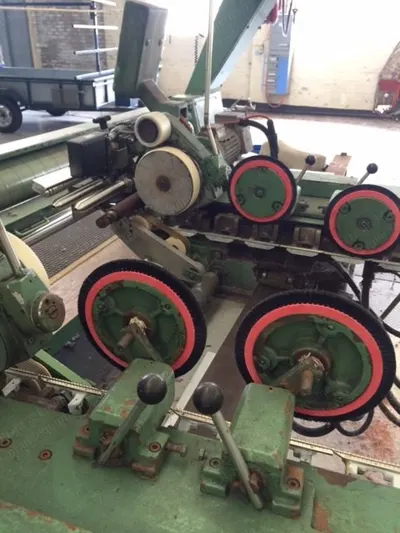

    7. Entry zone 3 mts with E+L uncurlers and photocell edge guiders.

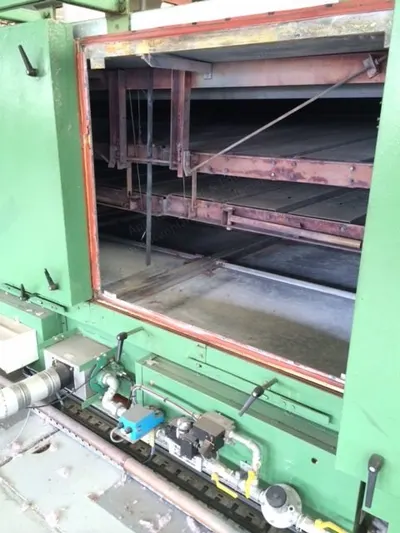

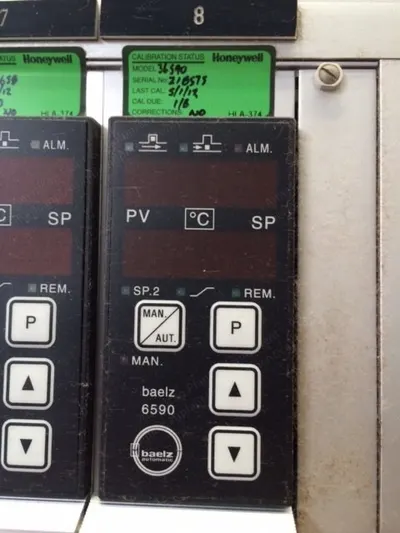

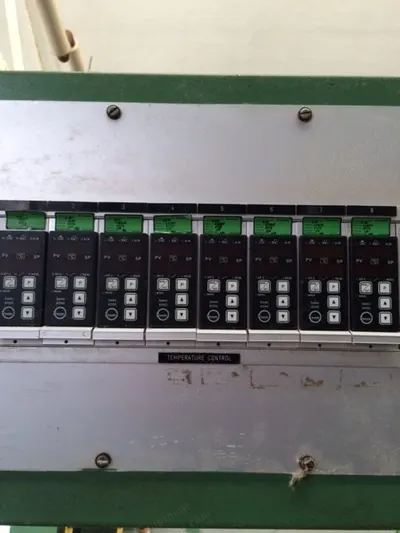

    8. 8 thermostatically controlled bays, all fans are 2/speed, maximum working temperature of 220 °C.
    9. Exit zone 3 mts with cooling unit, web slitting unit.

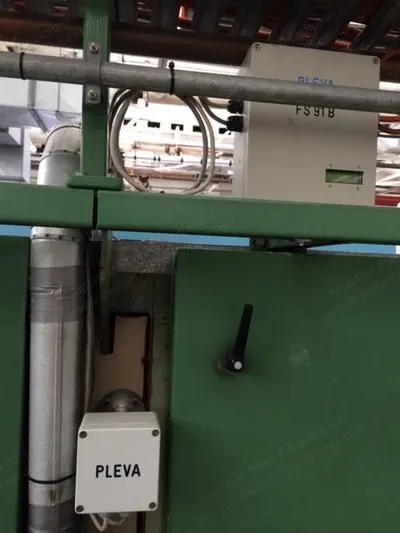

    10. Additional equipment: 4 pyrometers, Pleva moisture monitor/speed controller.
    11. Front and rear monitoring cameras and screens.
    12. The maximum operating speed is 150 m/min.
  3. Franz Muller Shearing (Cropping) Machines
    1. 2 Franz Muller shearing (cropping) machines, type PPS32, max working width 2000 mm.
  4. Kusters Pad Mangle
    1. Type 222.53 - 3000.
    2. Equipped with a Zollig batchwinder, working width of 3000 mm.

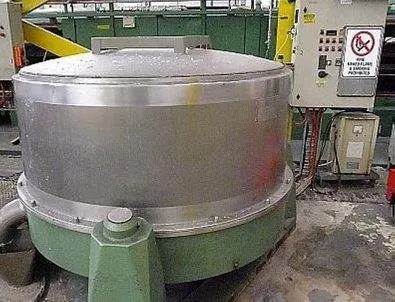

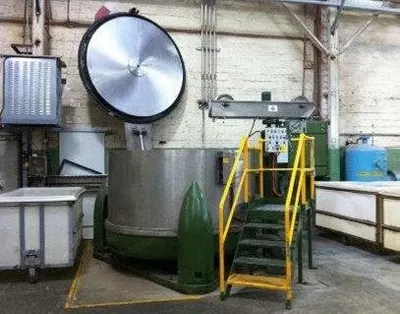

  5. Atyc Hydro Extractor
    1. Type CRF-1500, year 1992.
    2. Equipped with unloader, 180 kg maximum capacity.

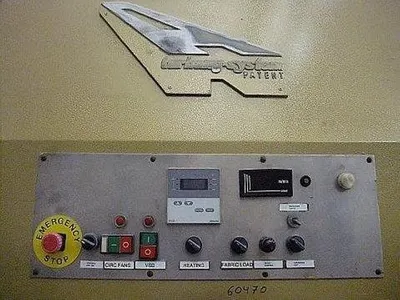

  6. Anglada Turbang System Relax Dryer
    1. 2 compartments, steam heated, 1800 mm working width, plaiter exit.

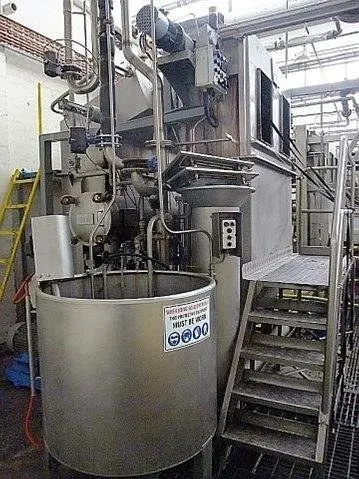

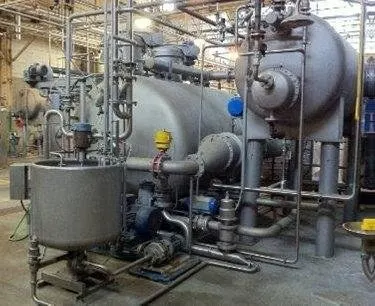

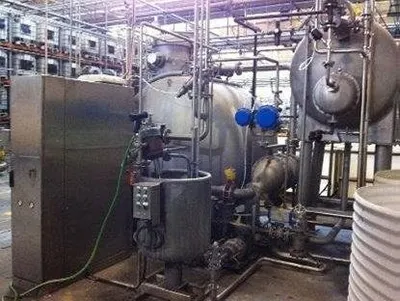

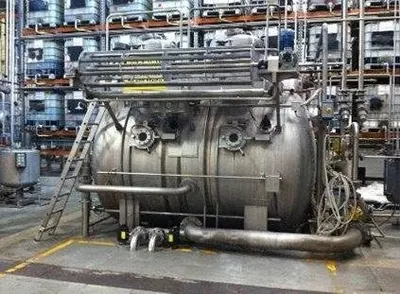

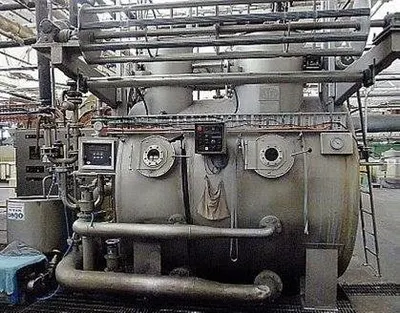

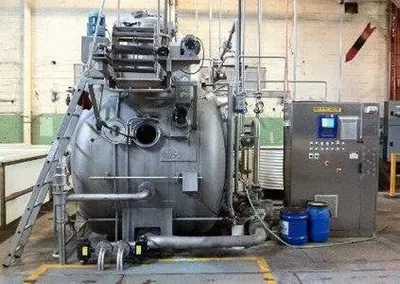

  7. High Temperature Softflow Dyeing Machines
    1. 24 7874/1: Atyc HT jet, year 2003, overflow HT 2, capacity 2 x 250 kg chambers, max temperature 135 °C.
    2. 24 7875: Atyc HT jet, year 2004, machine type overflow HT 2, capacity 2 x 250 kg chambers, max temperature 135 °C.
    3. 24 7874/2: Atyc HT jet, year 2003, machine type overflow HT 2, capacity 2 x 250 kg chambers, max temperature 135 °C.
    4. 24 7876/1: Atyc HT jet, year 2004, machine type overflow HT FP1 RS, capacity 1 x 250 kg chambers, max temperature 135 °C.
    5. 24 7876/2: Atyc HT jet, year 2004, machine type overflow HT FP1 RS, capacity 1 x 250 kg chambers, max temperature 135 °C.
    6. Each jet has 200 mm jet diameter, low pressure with high flow circulation pump, filter system, pump assisted rapid drain capability.
    7. 1 addition tank, 1 bath preparation tank, allows the next bath to be prepared while the current dyeing process is running reducing processing time.
    8. Low liquor ratio processing and Arel APC 504 controller.

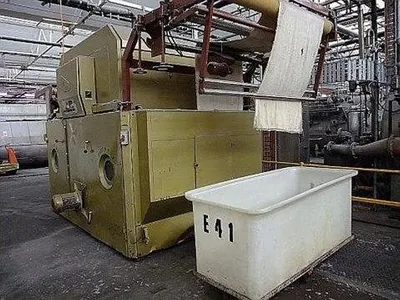

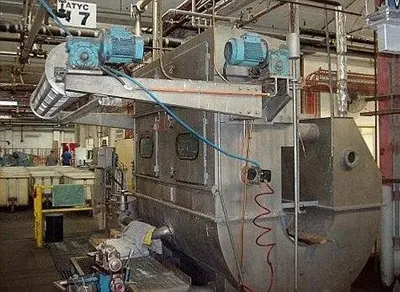

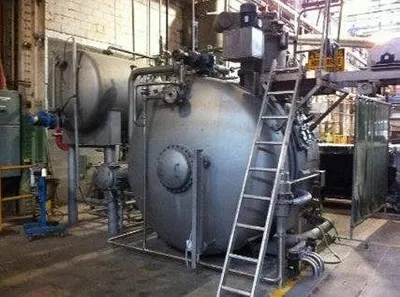

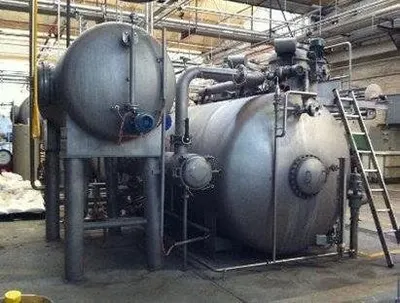

  8. Atmospheric Temperature Softflow Dyeing Machines
    1. 23 7750: 2 Atyc atmospheric jets, type BT-3FL 450, year 1992, 3 chambers atmospheric jet dyeing machine for heavy weight terry towelling fabric, each chamber can hold up to 133 kg, total capacity of 400 kg, equipped with unloading winch, heat exchanger and filter, main motor and pump, 1 addition tank, electrical panel with Arel 304+ controller.
    2. 23 7752: Fong atmospheric jet, type GN9-100-2T, year 1998, Fong 2 chambers atmospheric jet dyeing machine for heavy weight terry towelling fabric, each chamber can hold up to 180 kg, total capacity of 360 kg, equipped with unloading winch, heat exchanger and filter, main motor and pump, 1 additional tank, electrical panel with Arel 304+ controller.
    3. 23 7751: 2 Fong atmospheric jets, type GN9-100-4T, year 1998, 4 chambers suitable for heavy weight terry towelling fabric, each chamber can hold up to 180 kg, total capacity 720 kg, equipped with unloading winch, heat exchanger and filter, main motor and pump, 1 addition tank, electrical panel with Arel 304+ controller.
    4. 23 7749: Atyc atmospheric jet, type BT.Duplex 4F.X, year 1988, 4 chambers atmospheric jet dyeing machine suitable for heavy weight terry towelling fabric, each chamber can hold up to 90 kg, total capacity of 360 kg, equipped with unloading winch, heat exchanger and filter, main motor and pump, 1 addition tank, electrical panel with Arel 304+ controller.
  9. Arel On Time Volumetric Chemical Dispenser (Otd)
    1. 24 chemicals.
    2. Automatic dispensing system for liquid chemicals.
    3. The system measures the required quantity of liquid chemicals specified in the dyeing recipe and automatically delivers the measured chemical to the specified dyeing machine at the specified time.
  10. Additional Information
    1. More information is available upon request.
