Feilong, Nonwoven Fabric Production Line, 2015, Spunlaced, 3600mm Width, 30-80 GSM

Feilong, Nonwoven Fabric Production Line, 2015, Spunlaced, 3600mm Width, 30-80 GSM Sold

Description

  1. Overview
    1. Spun laced, water interlaced non-woven production line
    2. Year: 2015
    3. Control system: Siemens
    4. Non-woven width: max. 3600 mm
    5. Gsm: 30~80 g/m²

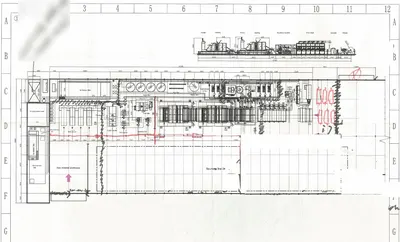

    6. Space required: 17 m x 90 m x 8 m (height needed for piping)

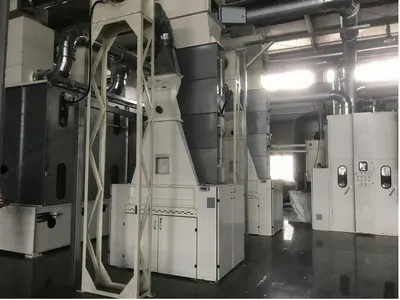

  2. Opening Section
    1. Electronic weighing opener x3 sets, size: 1500 mm, capacity: 500 kg/hr
    2. Pre-opener x1 set, size: 1200 mm, capacity: 800 kg/hr
    3. Blender x1 set, big cabin blender type, size: 2000 mm, cabin volume: 20 m²
    4. Fine opener x2 sets
    5. Distributer: ￠320 mm, automatic hydraulic type

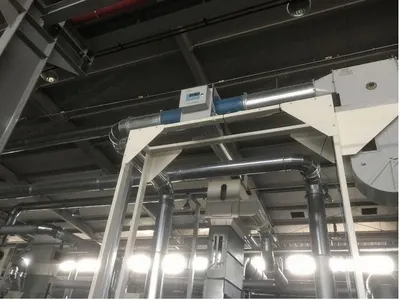

    6. Blow fan and pipe magnet x5 sets
    7. Plc automatic control system Siemens
    8. Multi drum dust filtering unit, 45 kW

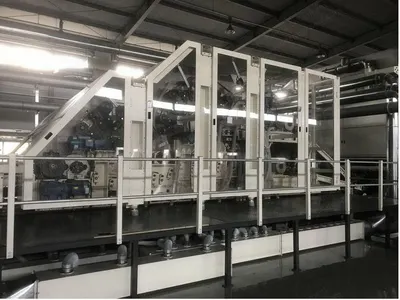

  3. Main Carding
    1. Reserve box with fan x2 sets, width: 12500 mm, capacity: 700 kg/hr, blower type
    2. Air pressure feeder x2 sets, capacity: 700 kg/hr, w3,600 x d1,000 x 3,000 mmh, blower: 1.5 kW x 3 ea

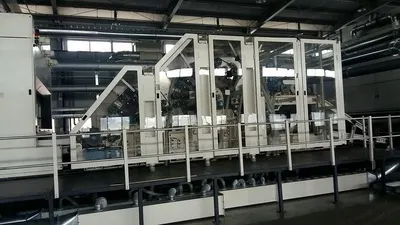

    3. High speed carding machine x2 sets, speed: 130 m/min, main cylinder: ￠1,500 x 3,800 mml, control box: Siemens

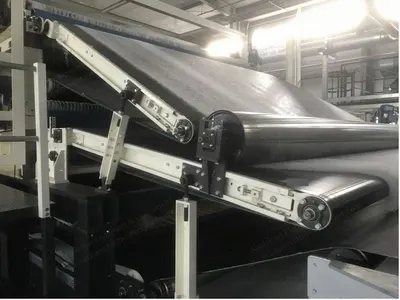

    4. Combined conveyor x1 set, w3,800 x 10,000 mml
  4. Spunlace Machine
    1. Working width: 3500 mm
    2. Working speed: 130 m/min
    3. Prewetting spunlace units x1 set
    4. Drum spunlace units x3 sets
    5. Vacuum pump x1 set, drum roll type

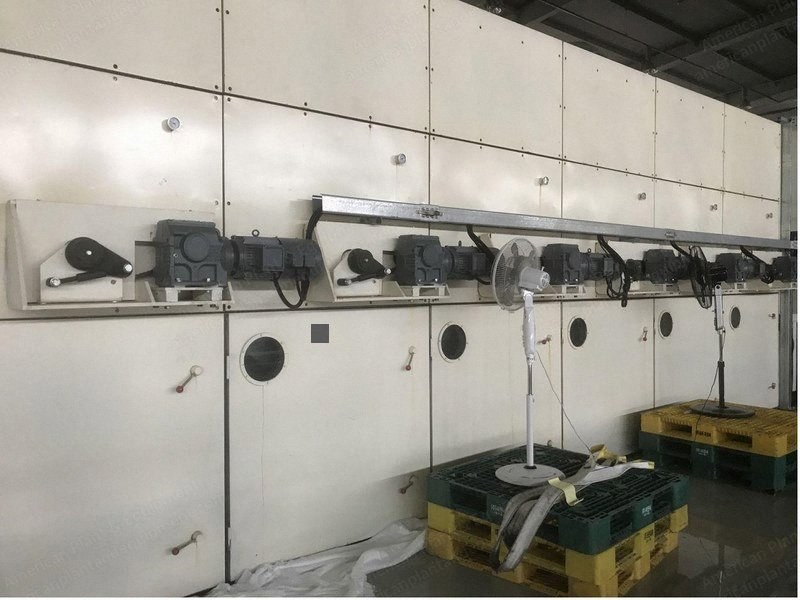

  5. After-Finishing, Dryer Part
    1. Working width: 3600 mm
    2. Working speed: 130 m/min

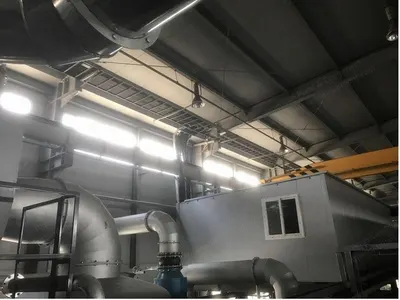

    3. 6 drum dryer x1 set, drum: ￠1,400 mm
    4. Accumulator x1 set, 4 roll, capacity: 3 m
    5. Stain detector x1 set, speed: 150 m/min
    6. Gram and moisture detector x1 set

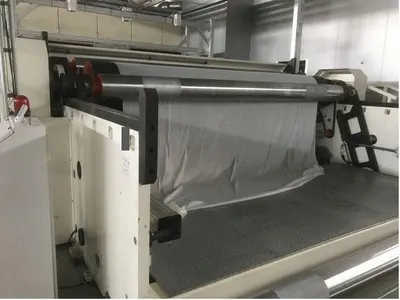

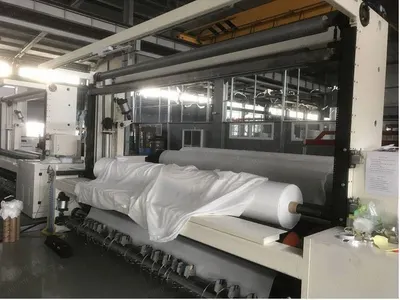

    7. Automatic winder x1 set, main roll: rubber roll, plc type, spin winding: ￠76 mm
    8. Heater boiler 1 set, blower: 45 kW

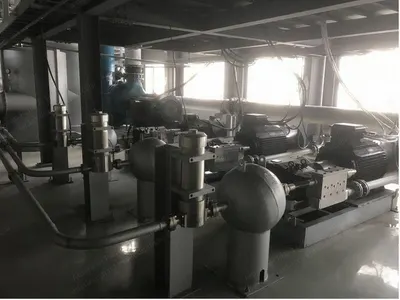

  6. High Pressure Water Supply System

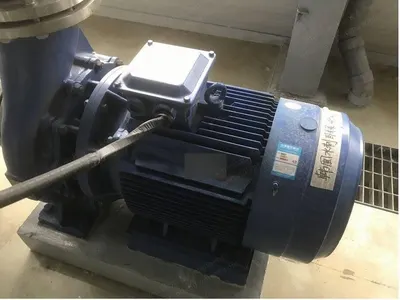

    1. High pressure auxiliary pump station, stabilizer, filtration, connecting pipe x6 sets, pump: 132 kW x 2 ea, 90 kW x 2 ea, 75 kW, 37 kW
    2. Middle pressure pump x1 set, 45 kW
    3. Low pressure water supplying pump valve x1 set, 11 kW
  7. Water Suction System
    1. High pressure water separation censored x2 sets, 25,000 pa, 12,000 pa

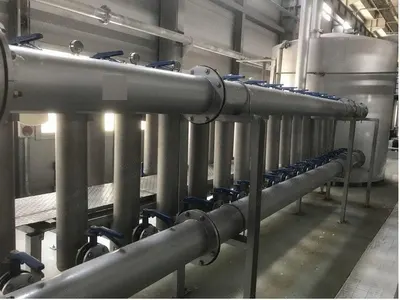

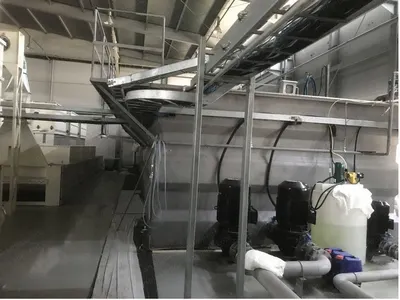

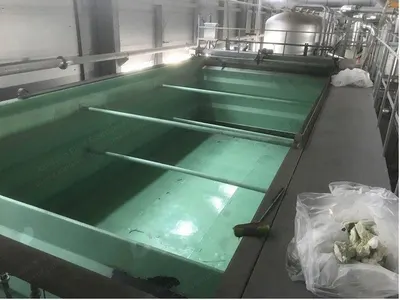

  8. Water Filtration
    1. Circulation volume: 200 ton/hr
    2. High pressure pump: max 100 bar

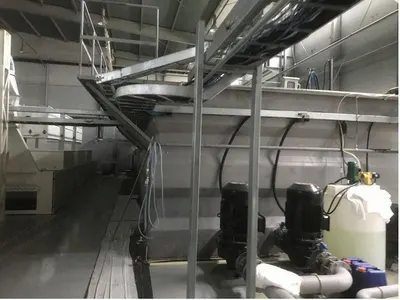

    3. Floating filtration system x1 set, water tank: w4,000 x 2,500 h x 16,000 mml
    4. Sand filtration system x4 sets, shell type

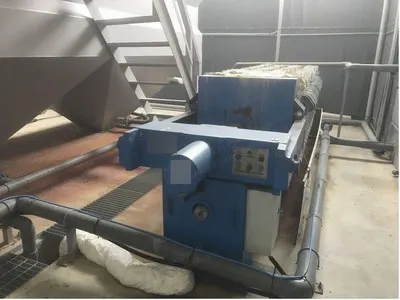

    5. Bag filtration system, metal filtration water tank, belt press
    6. Tank, level, control, etc.
    7. Fine filtration
    8. Process connect fitting
  9. Main Control System
    1. Plc bus control system (without secondary wiring)
  10. Auxiliary Equipment and Optional Parts
    1. Spare needle board x4 sets
    2. Spare net (50#, aperture drum) x1 set
    3. Needle board cleaning machine, heating box x1 set
    4. Slitter machine x1 set
