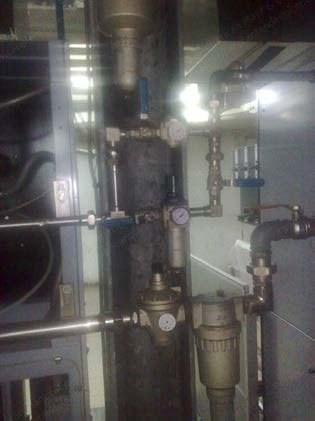

Leonard, Complete POY Yarn Lines, 1988, 200kg/hr Capacity, 60 to 280 Denier

Leonard, Complete POY Yarn Lines, 1988, 200kg/hr Capacity, 60 to 280 Denier

Description

  1. Overview
    1. Four production lines (lines A, B, C, D) for POY (partially oriented yarn) manufacturing.
    2. Lines A and B were built in 1988; lines C and D were built in 1997.
    3. Each line produces 4700 kg per day.
    4. The range of denier or dtex is 60 to 280 denier/dtex.
  2. Lines A and B – Year 1988

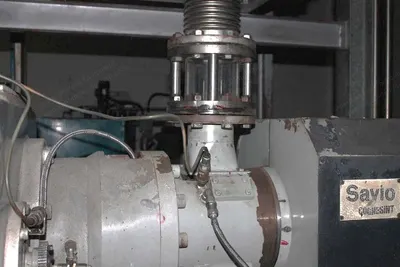

    1. 2 Leonard extruders EOC 105, capacity +/- 200 kgs/hour each with controllers; motor 92 kW, resistance 52 kW, ventilators 1.65 kW, average temperature 285 °C.
    2. 1 complete system of transportation, packaging and weighting of POY reels.
    3. 2 air conditioning centrals AEL.
    4. 1 system of loading polymer to the silos.
    5. 2 manifolds.
    6. 2 filters CPF (Fluid Dynamics).
    7. 6 heating boilers with 12 final positions each (6 + 6).
    8. 12 cooling threads closets.
    9. 12 silage oil pumps Slack & Parr.
    10. 1 dosing device Engin Plast for production of colour threads/additives.
  3. Lines C and D – Year 1997
    1. Ventilator model AEL 4.5 kW, power resistance 90 kW, capacity 10000 m³/hour.
    2. Ventilator model AEL 15 kW, power resistance 45 kW, capacity 16000 m³/hour.
    3. 6 cooling yarns store rooms.
    4. 1 chiller Carrier GH60, power 95 kW, average working temperature 7 °C, year 1998.
    5. Water pumps and deposit connected with chiller working systems.
    6. Cooling yarns store rooms in weighting.

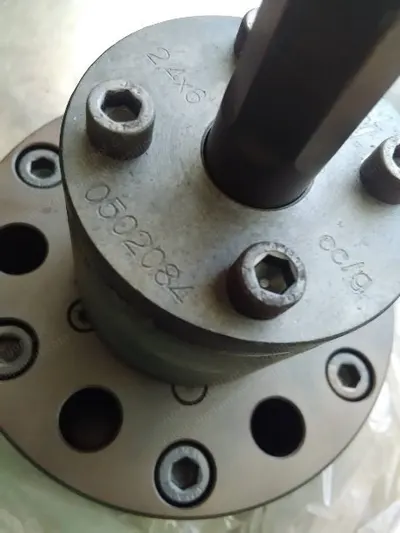

    7. 6 polymer pumps 2.4 x 6 cc.
    8. 7 motor reducers of polymer pumps.
    9. 6 oil pumps silage 0.06 x 12 cc.
    10. 7 geared motors of pumps of oil silage.
    11. 2 oil tanks silage of 100 L.

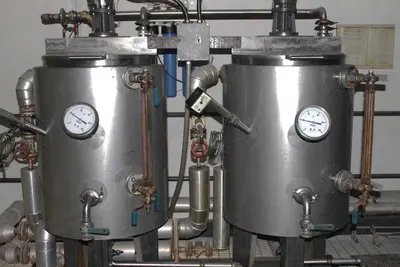

    12. 2 deposits with shaker for oil silage with capacity of 200 L each time.
    13. 1 dryer (drying capacity of 200 kg per hour), motor 15 kW and incorporated resistances with electric board beside.
    14. 3 fan motors connected with the drying system: 1 fan air feed motor 2.2 kW capacity 2300 m³/hour; 1 fan extraction air drying motor 18.5 kW capacity 2620 m³/hour; 1 fan extraction air regeneration drying motor 0.55 kW capacity 1150 m³/hour.
    15. 1 mounter also connected with the motor drying 0.18 kW.

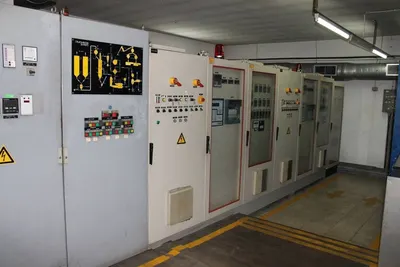

    16. Complete electrical boards (control of automatic process).
    17. 1 extruder EOC 90, year 1989, motor 55 kW, resistances 32 kW, average working temperature 285 °C.
    18. Line C with capacity of dosage 130 kg per hour, 284 dtex 3140 kg/day, 140 dtex 1548 kg/day, 105 dtex 1161 kg/day, 85 dtex 940 kg/day, 60 dtex 663 kg/day.
    19. 1 stock screw for extruder EOC 90.
    20. 1 extruder EM60 FO, year 1997, motor 45 kW, resistance 26 kW, medium working temperature 285 °C. Line D with dosage capacity 65 kg per hour, 284 dtex 1570 kg/day, 140 dtex 774 kg/day, 105 dtex 580 kg/day, 85 dtex 470 kg/day, 60 dtex 332 kg/day.
    21. 1 stock screw for extruder EM60.
    22. 2 motors for polymer PET transport by helicoidally spring internal deposits.

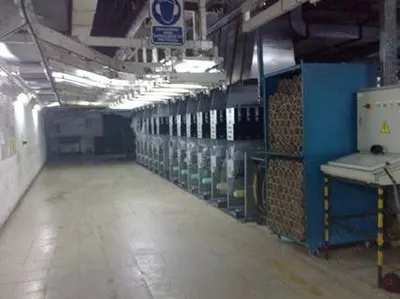

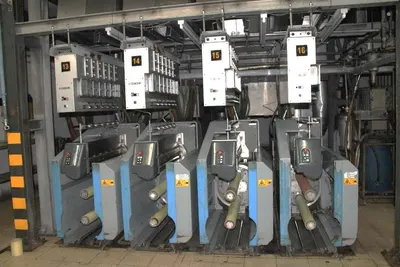

    23. 7 Cognesin winders, medium working speed of 3200 meters per minute.
    24. 1 pulse vein to transport PET to the internal circuit with automatized system.

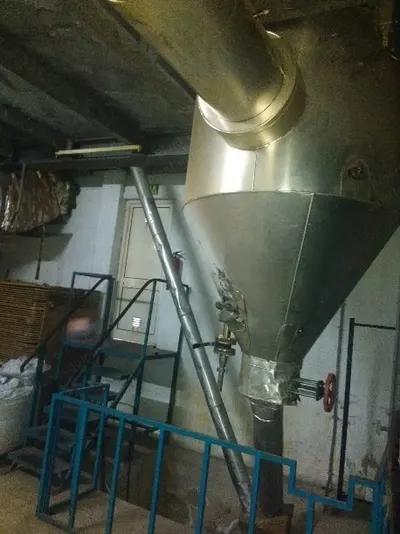

    25. 1 silo with capacity of 25000 kg of PET.
    26. 1 equipment with compressor incorporated to transport polymer (can be received in bags of 1000 kg or in bulk) to the silos supply.
    27. 2 filtration blocs of PET incorporated with both filters each line.
    28. 2 dosing devices line C: 1 = Engin Plast DG 15 dosing from 0.300 g to 10 kg; 1 = Ketron 0.500 g to 10 kg.
    29. Obs. can produce mate yarns; anti fire; antibacterial; anti UV; others.
    30. 2 dosing devices line D: 1 = Engin Plast DG 15 dosing from 0.300 g to 10 kg; 1 = Ketron 0.500 g to 10 kg.
    31. Obs. can produce mate yarns; anti fire; antibacterial; anti UV; others.
    32. 1 drying glasshouse of dyes, year 1997, with capacity of drying +/- 50 kg each time.
    33. 1 drying glasshouse of dyes, year 1994, with capacity of drying +/- 30 kg each time.
    34. Die heads of 10 filaments.
    35. Die heads of 24 filaments.
    36. Die heads of 36 filaments.
    37. Die heads of 48 filaments.
    38. Die heads of 68 filaments.
    39. Die heads of 72 filaments.
    40. Die heads of 96 filaments.
    41. Die heads of 36 OCO.
    42. Die heads multilobal.
    43. Die heads octolobal.
    44. Die heads triangular.
    45. Die heads trilobal.
    46. Die heads cross section.

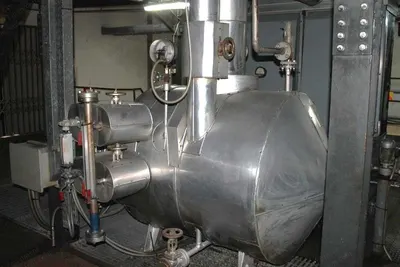

    47. 1 boiler line C Orlandi, maximum working values 2.5 bar/350 °C; medium working values 0.7 bar/283 °C, power 66 kW; diathermic liquid capacity 850 L.
    48. 1 boiler line D Orlandi, maximum working values 2.5 bar/320 °C; medium working values 0.7 bar/283 °C, power 36 kW; diathermic liquid capacity 620 L.
    49. 1 oven to burn PET from die heads, pumps, static mixers and others.
    50. 1 washing equipment by glass microspheres to wash materials: blocs of die heads and others.
    51. 1 ultrasound to wash die heads and others at +/- 80 °C.
    52. 1 microscope to inspect die heads.
    53. 1 press for assembly rings on the spinning frames.
    54. Electric boards connected to the control of polymer pumps, oil pumps of silage and extrusion.
    55. 4 deposits of PET internal supplies: 1 = 400 kg PET; 1 = 560 kg PET; 1 = 260 kg; 1 = 50 kg.
    56. 1 oven, year 1989, die heads heating, polymer pumps and others.
    57. 1 oven, year 1994, die heads heating, polymer pumps and others.
