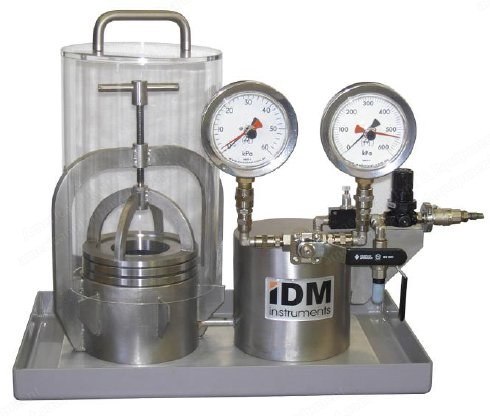

IDM, H0003, Hydrostatic Head Tester, 0-600kPa, 80psi Air Supply (New)

IDM, H0003, Hydrostatic Head Tester, 0-600kPa, 80psi Air Supply

Description

  1. Applications
    1. All fabrics which are water repellent or coated to impart resistance to water penetration
  2. Features
    1. High analogue pressure gauge 0-600 kPa
    2. Low analogue pressure gauge 0-60 kPa
    3. Water explosion container cover
    4. Overflow tray
    5. Bench top operation
  3. Standards
    1. AATCC 127
    2. AS 2001.2.17
    3. BS 3424 part 26
    4. BS EN 20811
    5. ISO 811:1981
    6. BS EN 20811:1992
  4. Options
    1. Stainless steel test head 100 cm² (BS 3424)
    2. Stainless steel test head Ø75 mm (AS 2001.2.17)
  5. Connections
    1. Air supply: 80 psi
  6. Dimensions
    1. Height: 200 mm
    2. Width: 400 mm
    3. Depth: 200 mm
    4. Weight: 15 kg
