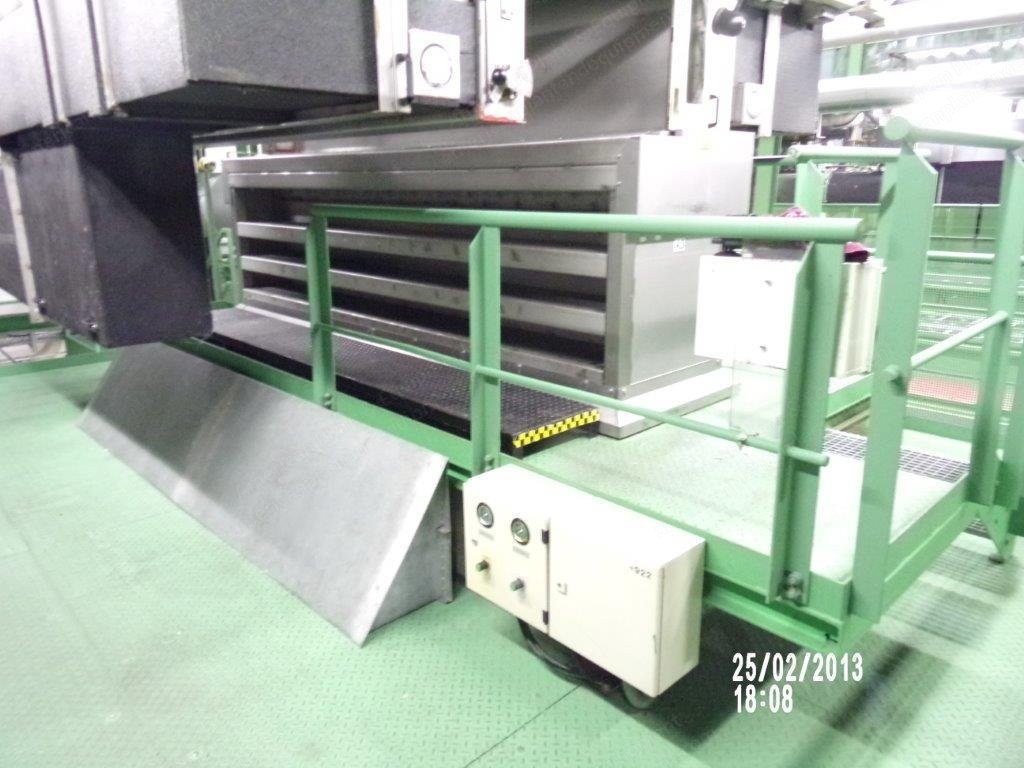

SMMS Spunbond Line, 3200mm, 10-100gsm, 350 m/min

SMMS Spunbond Line, 3200mm, 10-100gsm, 350 m/min

Description

  1. Overview
    1. Rf 3.1 technology ult, installed and started up in 1997 (upgraded in 2012 from rf 3.0 to rf 3.1)
    2. Smms configuration, monocomponent only
    3. Product range 10 gsm to 100 gsm
  2. Specifications
    1. 3200 mm width

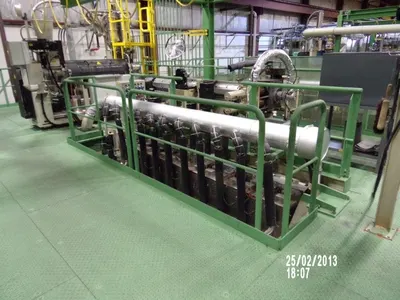

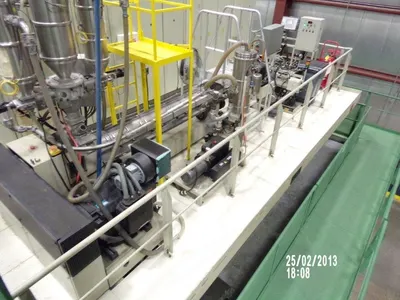

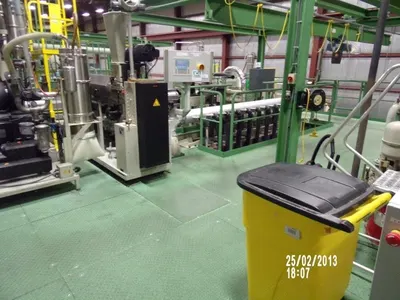

    2. Spunbond extruder, max 180 kg/m/hr; m-pp and zn-pp; mfr range 25 to 40
    3. Meltblown extruder, max 50 kg/m/hr; mfr range 400 to 1600
    4. Belt machine speed 350 m/min

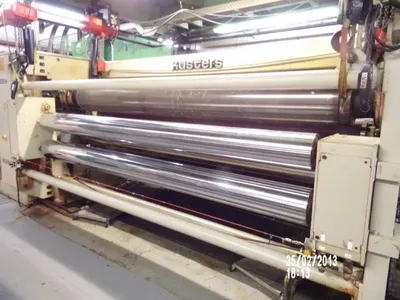

    5. 2 stack, hot-s andritz-kuesters calendar
    6. 4 available rolls for customized engraved bond pattern; one is engraved with industry std. pattern
    7. U 2888 three are smooth ready to engrave
    8. 2 hot roll-s 170 andritz

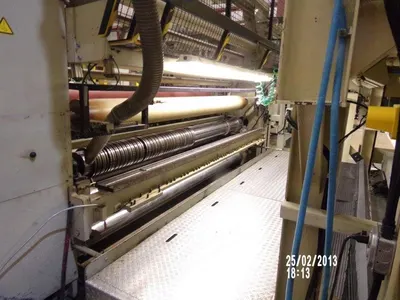

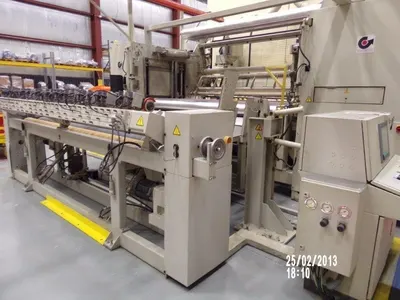

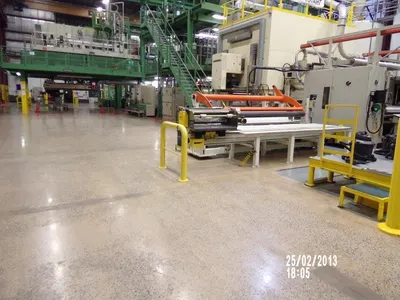

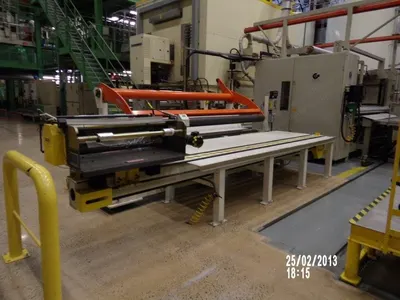

    9. Inline slitter – rewinder; edelmann; min slit width 90 mm; max outer diameter 1200 mm
    10. Power supply 4,000 amp switchgear (nominal running load ~ 3,500 amps) 2- 2,500 kva transformers
  3. Condition
    1. Installed and started up 1997, upgraded in 2012 from rf 3.0 to rf 3.1
  4. Included
    1. 4 available rolls for customized engraved bond pattern; one is engraved with industry std. pattern
    2. U 2888 three are smooth ready to engrave
    3. 2 hot roll-s 170 andritz
    4. Inline slitter – rewinder; edelmann; min slit width 90 mm; max outer diameter 1200 mm
    5. Power supply 4,000 amp switchgear (nominal running load ~ 3,500 amps) 2- 2,500 kva transformers
    1. More information is available upon request
