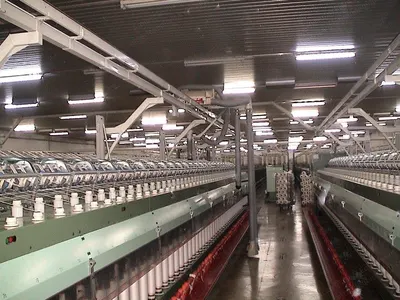

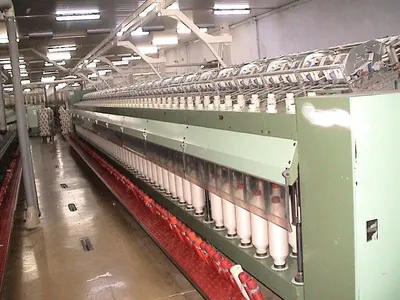

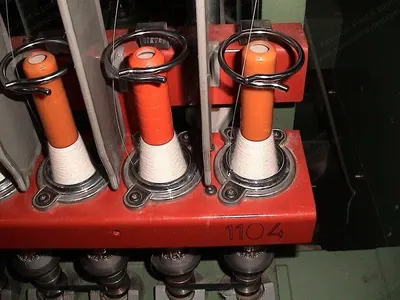

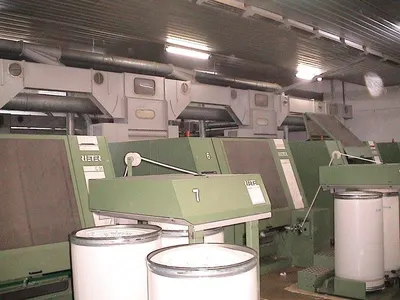

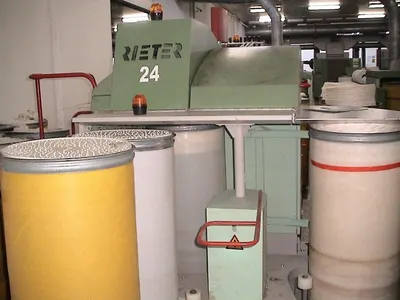

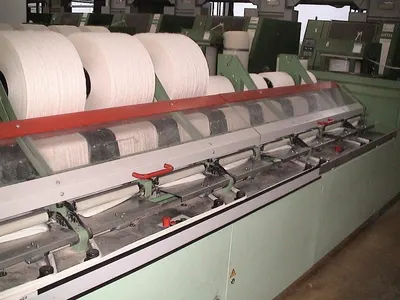

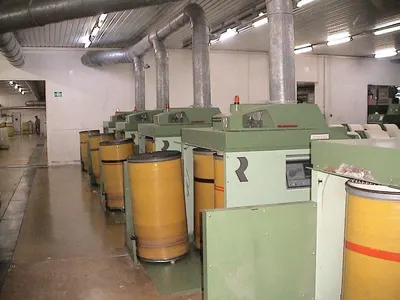

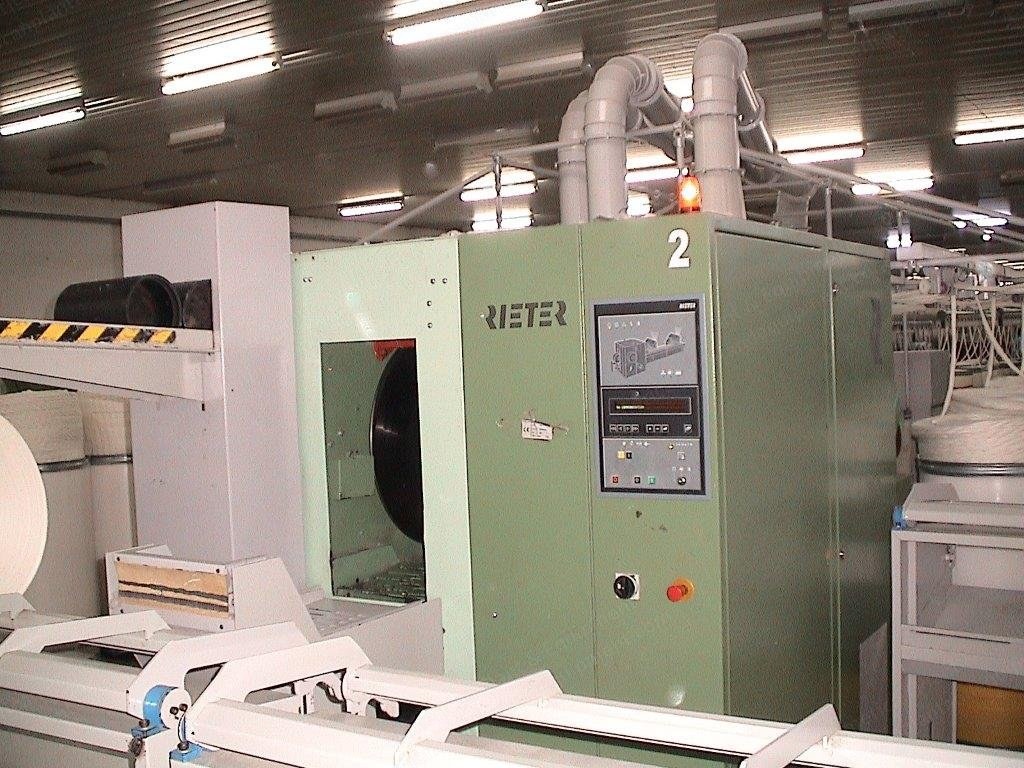

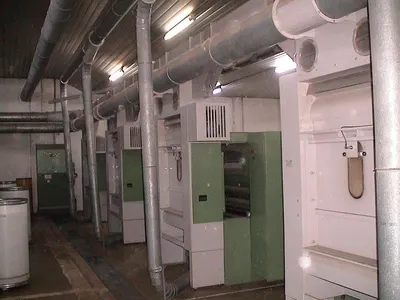

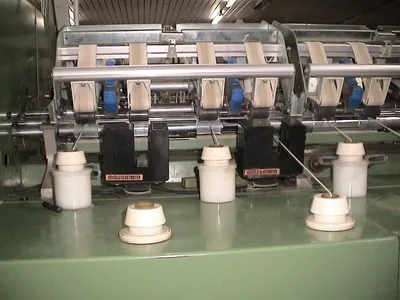

Description Overview 11,000 ring spindles Currently spinning cotton in 30 – 50 Ne counts Blowroom not included Blowroom Equipment 1 x Rieter B60 Uniflex, year 2001, fine cleaner, 500 kg per hour 1 x Rieter B70 Uniimix, year 2011, multimixer Cotton max 800 kg per hour Man made fibers, max 800 kg per hour Waste blends with a percentage of more than 25% Noil or waste max 500 kg Blending roller 560 minutes Take-off roller 660 minutes Carding Machines 8 x Rieter C51 carding machines, year 2001 Suitable for cotton and blends Maximum production: 80 kg per hour Feed weight 40 to 1000 g/m Automatic material feeding with A70 Aerofeed-U chutes Automatic regulation, sliver count CV and sliver spectogram Automatic waste removal system Automatic can changer 3 x licker-ins 3 x doffer side stationary flats Cans with castors 600 x 1200 mm 8 x Rieter A70 Aerofeed-U, year 2001 Draw Frames – First Passage 2 x Rieter SB-D 30 draw frames, 2001 Automatic can changer Creel for 8 folds Infeed cans 600 mm x 1200 mm Outlet cans with castors 600 mm x 1200 mm Working speed 250-1000 m/min Draw Frames – Second Passage 2 x Rieter RSB-D30 draw frames, 2001 Automatic can changer Creel for 8 folds Infeed cans 600 mm x 1200 mm Outlet cans with castors 500 mm x 1200 mm Rieter quality monitor Working speed 250-1000 m/min Combing Line 1 x Rieter Unilap E32, 2001 Creel for 24 - 28 folds Infeed cans 600 mm x 1200 mm Automatic lap doffing Lap trolleys Programmable speed control variospeed Production speed maximum 120 m/min Lap diameter 600 mm Lap width 300 mm 5 x Rieter combers E 62, 2001 Production up to 400 nips/min Lap feeding system from the trolleys Automatic can changer with 2 reserve cans Central noil suction system Feeding lap up to 600 mm diameter Lap spools dia 200 mm, length 300 mm Roving Frames 3 x Rieter flyers F11, 2001 120 spindles Drafting system with 3 over 3 cylinders Pendulum arm PK 5000, fibre lengths up to 40 mm Bottom cylinders dia 32 mm / 32 mm / 32 mm Top cylinders dia 35 mm / 25 mm / 35 mm Bottom apron 44 x 265 x 0.9 Top apron 37 x 39 x 1.0 Gauge 260 mm Flyer speed maximum 1400 rpm Full bobbin diameter maximum 152 mm (6 inches) Ring Frames 10 x Rieter G33 ring spinning frames, 2001 1104 spindles Ring dia 42 mm Titan orbit type rings 70 mm gauge Tube length 210 mm Robodoff and roboload available Full inverter drive Full automatic spinning Maximum 20,000 rpm spindle speed Cone Winders 3 x Murata 7VSS automatic cone winders, 1998 Number of drums 60 Automatic cone winder (bobbin tray) Individual knotter type mach-splicer Single sided and deck type To wind from ring cops onto 6" traverse plastic or paper cones Maximum 1500 m/min Equipped with electronic ribbon breaker Package sizer and drum slow start device Motor driven disc tensor and empty bobbin Continuous bobbin feeding systems Electronic yarn clearer: type Loepfe TK 830 Bal-cone MMC.III/yarn length counter Package break with cradle lifter Autodoffing Full package conveyor
