Rieter, K45, 2014, Complete Ring Spinning Plant, 16320 Spindles

Rieter, K45, 2014, Complete Ring Spinning Plant, 16320 Spindles

Description

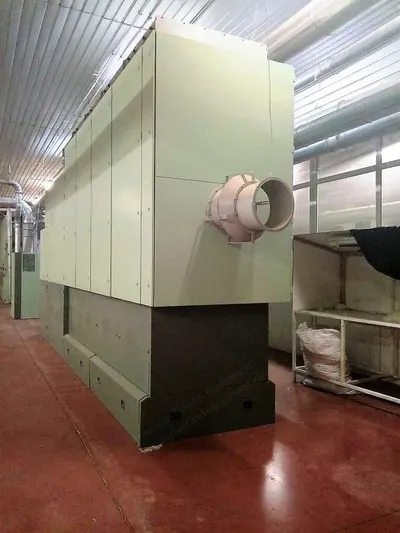

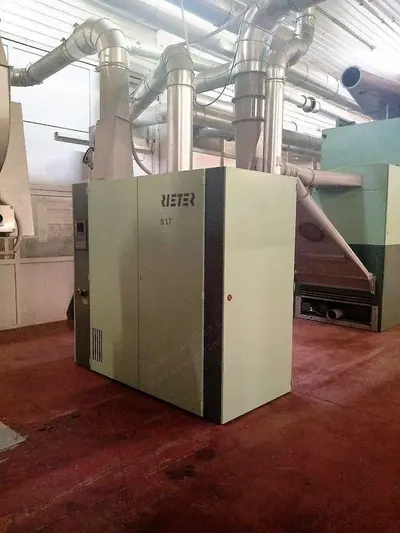

  1. Blowroom
    1. 1 Rieter waste feeder, model B25, production: 60 kg/hour, year: 2014

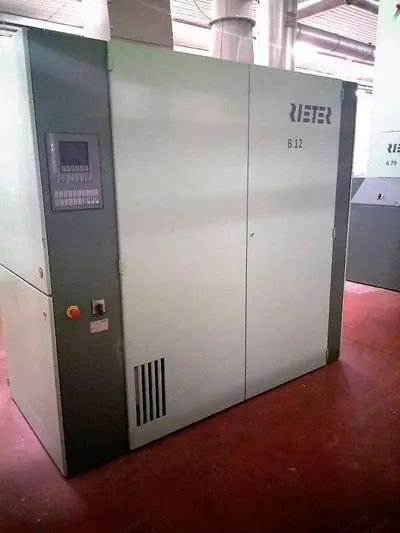

    2. 1 Rieter uniclean, model B12, production cotton fibers: 1200 kg/hour, power: 12.25/18.76 kW, year: 2014
    3. 1 Rieter unimix, model B72, fiber cotton and synthetic length max.: 65 mm, over 40% wastes cont. waste or waste, max. 600 kg, year: 2014

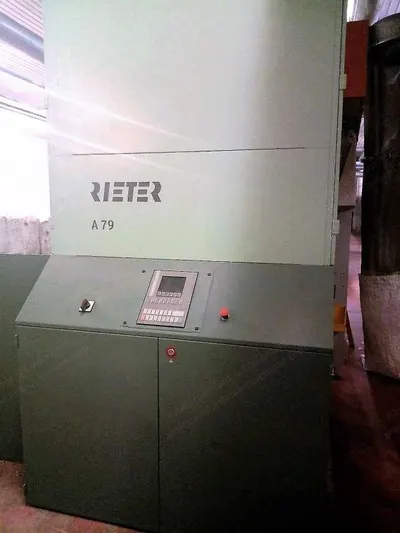

    4. 1 Rieter unistore, model A79, fiber cotton and synthetic length max.: 65 mm, production cotton fibers: 1200 kg/hour, synthetic fibers: 1000 kg/h, 8 chambers, rotating rol
    5. 1 Rieter condenser, model A21, production cotton fibers max.: 1200 kg/hour, year: 2014
  2. Carding

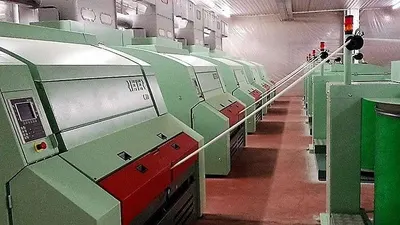

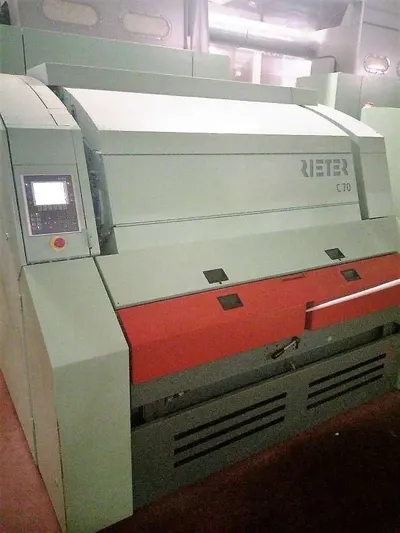

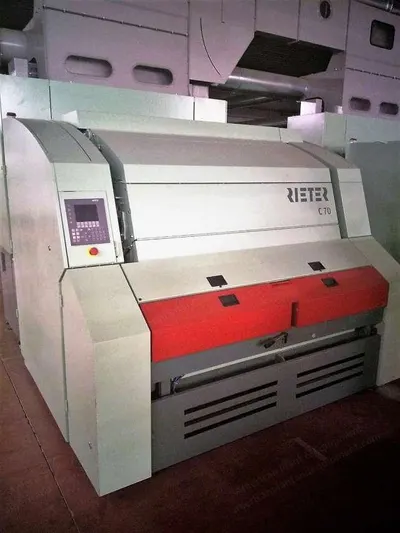

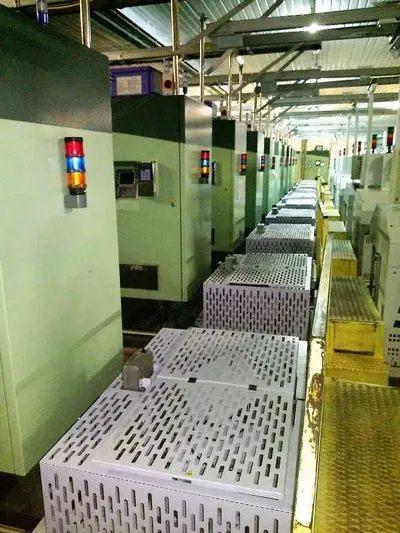

    1. 9 Rieter C70 cards, year: (8) 2014, (1) 2015
    2. Automatic fibers feeder
    3. Can work up to 65 mm fiber length
    4. Electronic autolever for control count-sliver
    5. Can work between count sliver Ne 0.15 – 0.05
    6. Production max.: 120 kg/hour
    7. Total shooting area: 40-200 times
    8. Automatic cans-change
    9. Coiler for Rimtex-can: diam. 1130 mm x 1000 mm
  3. Draw Frames

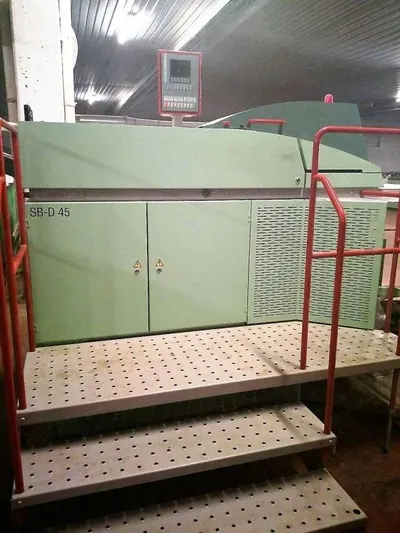

    1. 3 Rieter, model SB D45, year: 2014
    2. The 3-in-1 draw frame system equipped with pressure arm has integrated suction system with pneumatic draw frame system
    3. Creel cans feeder assembling 4+4 cans
    4. Output speed: 250-1100 mt./min.
    5. Electronic strip counter is available
    6. Exit coiler single head, Rimtex can diam. 1000 mm x 1130 mm
    7. Total shots: 4.41 – 11.69

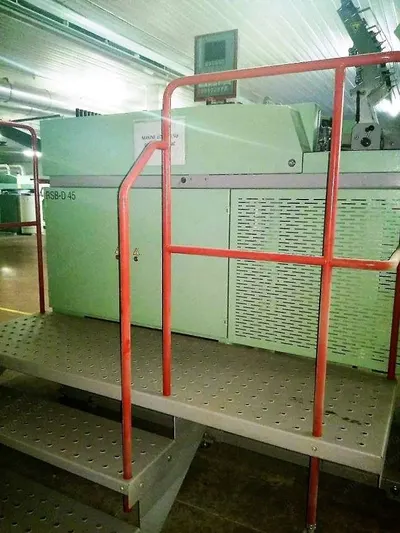

    8. 4 Rieter RSB, model D45, year: 2014
    9. The 3-in-1 draw frame system equipped with pressure arm has integrated suction system with pneumatic draw frame system
    10. Creel cans feeder assembling 4+4 cans
    11. Output speed: 250-1100 mt./min.
    12. Electronic strip counter is available
    13. Exit coiler single head, Rimtex can diam. 500 mm x 1150 mm
    14. Total shots: 4.41 – 11.69
    15. The machine has quality control system at the outlet
    16. The produced strip is controlled by a continuous regulating system
  4. Combing

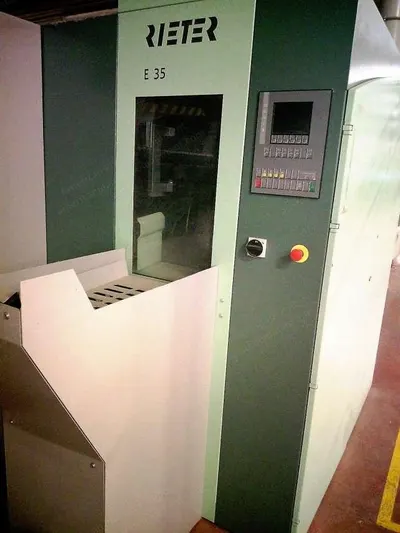

    1. 1 Rieter E35 Omegalap, year: 2014
    2. Winding speed: max. 180 mt./min.
    3. With 80ktx batt weight
    4. Production: max. 520 kg/hour
    5. 24 strips are feed to the machine
    6. The machine does not have electronic weight control

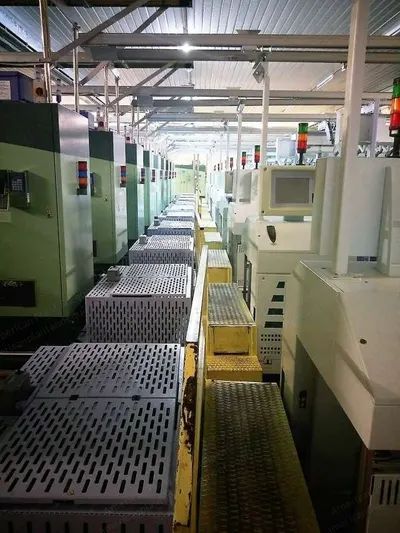

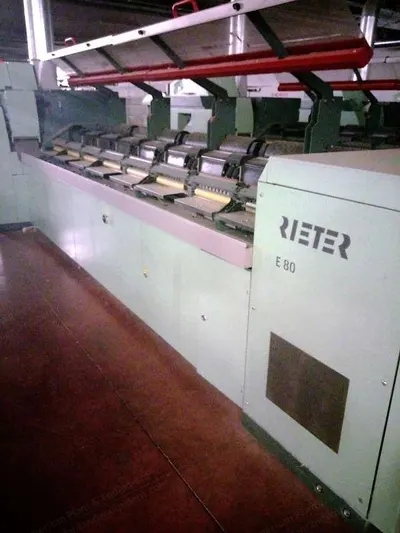

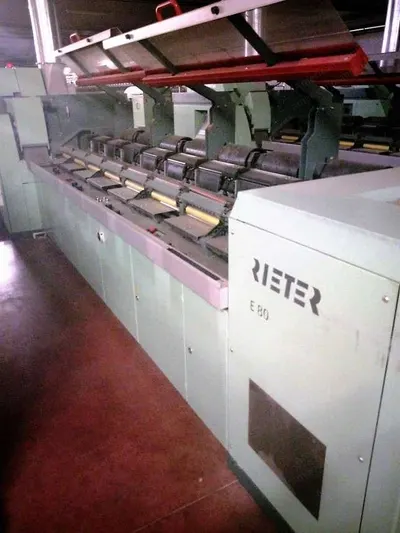

    7. 7 Rieter combers, model E 80, year: 2014
    8. Creel feeder assembling slivers from 8 cans positions
    9. Exit 8 positions scan zones
    10. Round comb shaft 400-500 rpm
    11. Depending on the amount of waste, the maximum production of the machine in 65-85 kg/hour, 8-25% waste can be poured according to the ratio of short fiber in cotton
    12. Feed forward and reverse feed are available
    13. 4.3-5.9 mm long fibers can be fed to each scan stroke
    14. There is a system that can continuously measure the strip number on output
  5. Roving

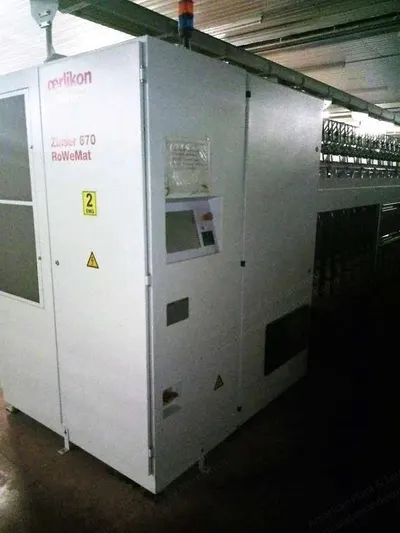

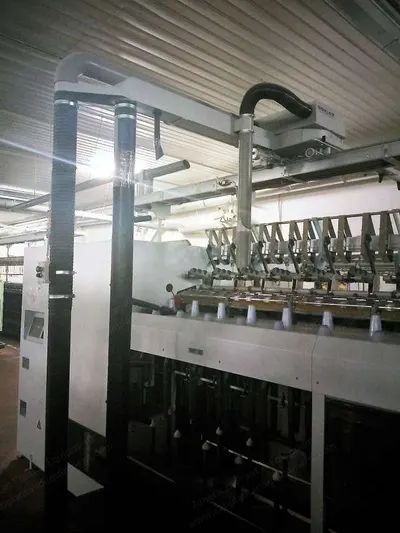

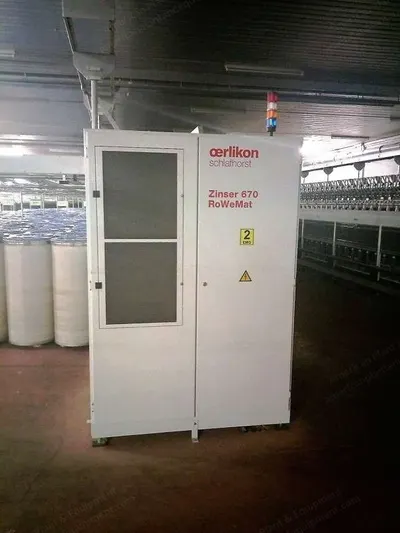

    1. 3 Zinser roving frames, model 670 Rovemat, year: 2014
    2. There are 3 over 3 shooting system
    3. Number spindles: 192
    4. Spindle speed: 1500 rpm
    5. Automatic tooling and automatic doffing is available
    6. Not available automatic transport system from roving frames to ring spinning frames
  6. Spinning

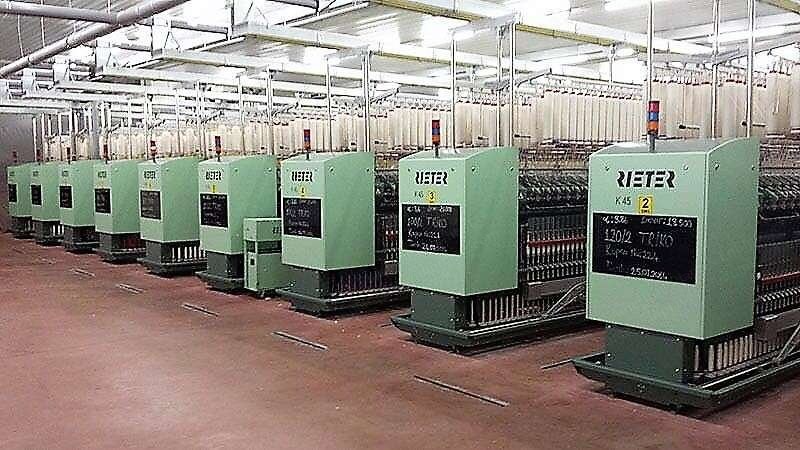

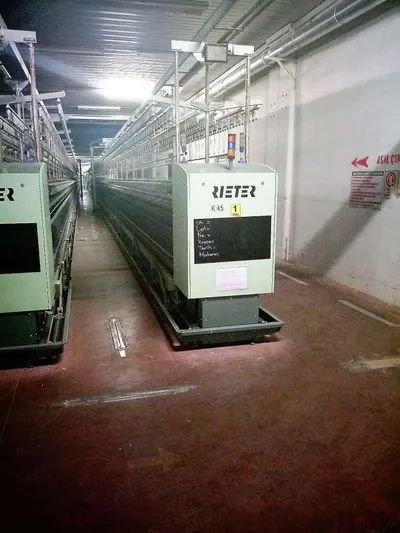

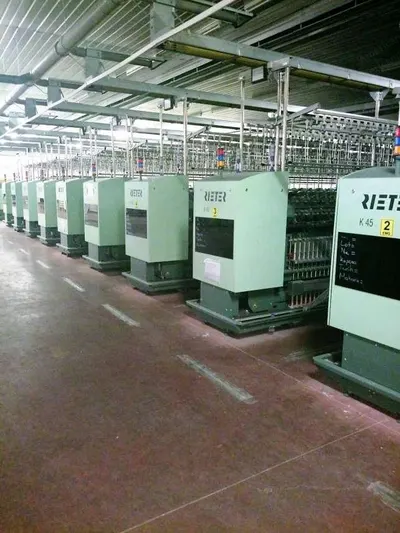

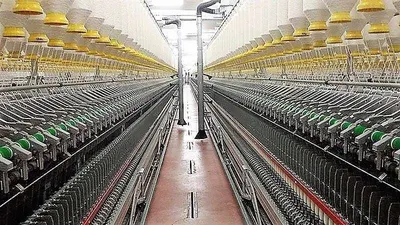

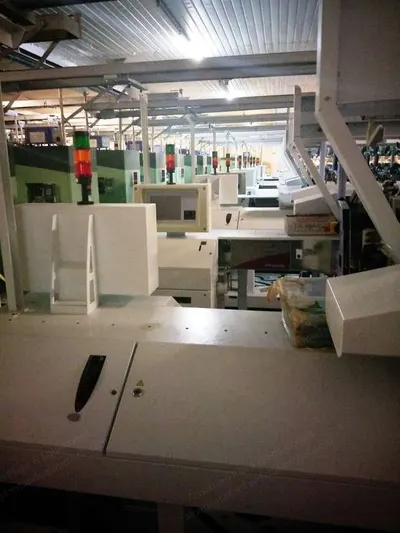

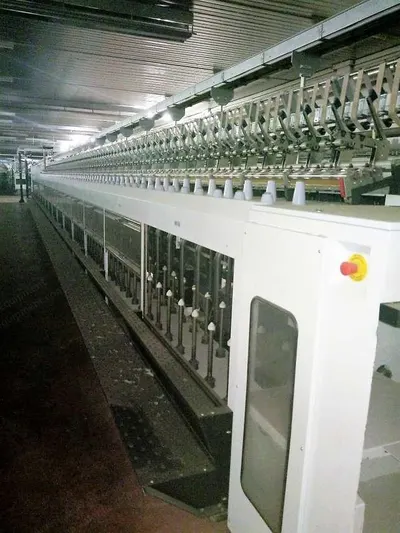

    1. 10 Rieter K45 compact, year: 2014
    2. Feeding creel for bobbins diam. 155 mm
    3. 1632 spindles
    4. Spindle speed: max. 25,000 rpm
    5. The Rieter belongs to the automatic doffing installed
    6. 38 mm ring diameter, if desired the ring can be fitted with a bracelet of up to 45 mm in diameter
    7. 70 mm gauge
    8. Shooting system 3 over 4 species
    9. With Pinter Fani spindle monitor system (2015), Pinter mortgage device follows the working and breaking of all spindles on ring machines
    10. Production in 24 hours of 1632 spindles at 18,500 rpm with 3.5 alpha twist, the Ne 30/1 knitwear produces 1150 kg
    11. Production in 24 hours of 1632 spindles at 18,500 rpm with 4.2 alpha twist, the Ne 80/1 weaving produces 200 kg
  7. Accessories

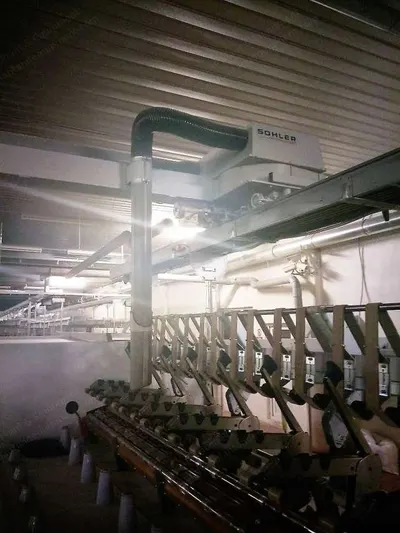

    1. 10 Sohler cleaner included with spinning, year: 2014
    2. 3 Sohler cleaner included with roving, year: 2014
    3. 1 Sieger yarn conditioning plant 1200 kgs, year: 2014
    4. Coils are transported to the fixing tank by platform with cans takes 1320 kg of yarn at a time
    5. 1 automatic palletizer, 2500 kg/hour, year: 2014
    6. 1 pallet stretching machine, year: 2014
  8. Range
    1. Titles yarns from Ne 16/1 to a Ne 65/1, final is Ne 80/1
    2. Production in 24 hours of 1632 spindles at 18,500 rpm with 3.5 alpha twist, the Ne 30/1 knitwear produces 1150 kg x 10 ring spinning frames = kg 11,500
    3. Production in 24 hours of 1632 spindles at 18,500 rpm with 4.2 alpha twist, the Ne 80/1 weaving produces 200 kg x 10 ring spinning frames = kg 2,000
