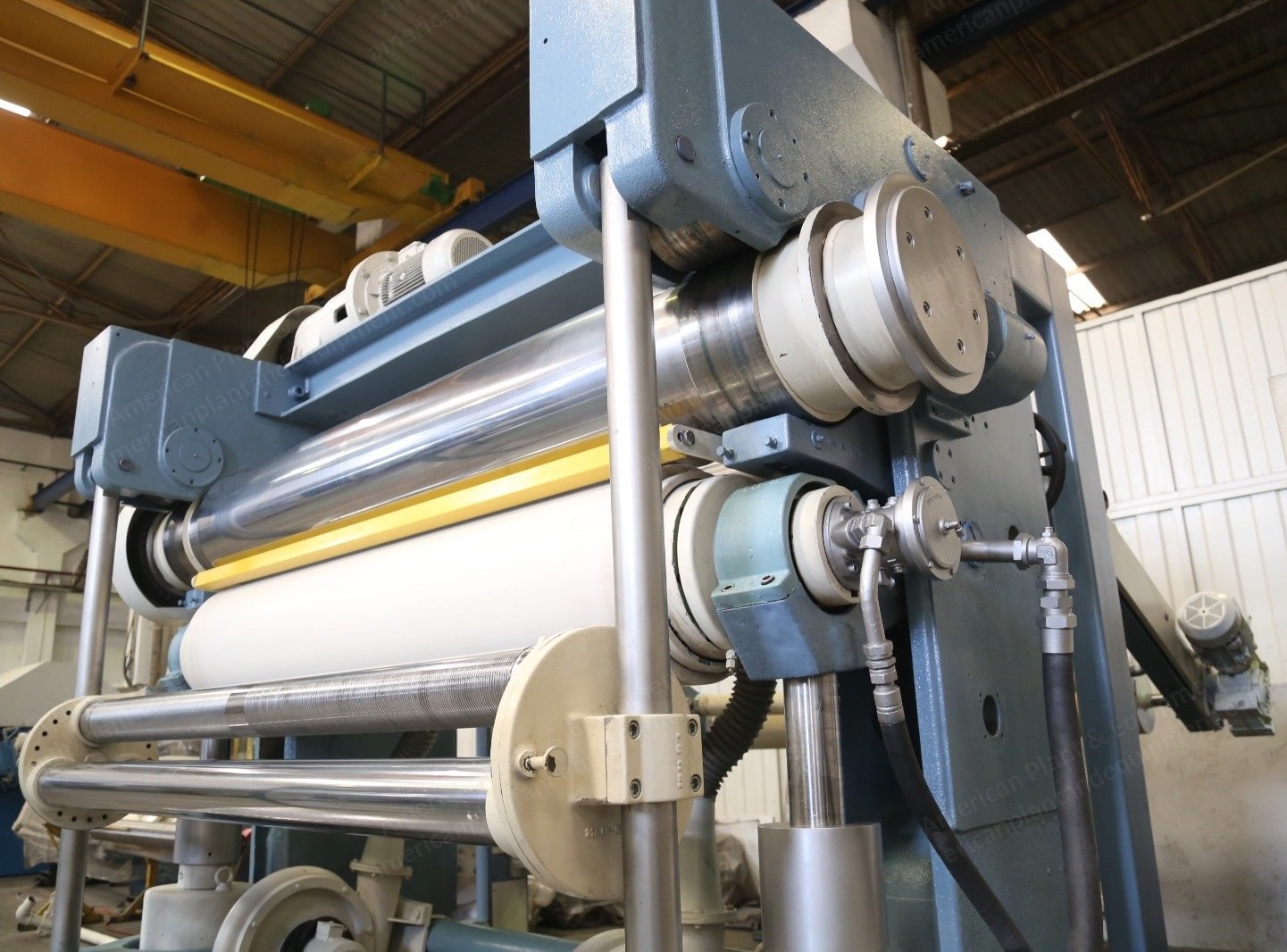

Kusters Calender, 1800mm, 2-Roll, Thermal Oil Heating

Kusters Calender, 1800mm, 2-Roll, Thermal Oil Heating

Description

  1. Overview
    1. Deluxe hydraulic kr x sp
    2. For the treatment of woven fabrics
    3. Effects: rolling, glazing, luster, matte and softness effect
    4. Fabric weight: 50 to 500 gr/m2
  2. Specifications
    1. Number of main rollers: 2
    2. Fabric width: 1800 mm
    3. Main roller width: 1900 mm
    4. Top roll: cotton roll or polyamide roll
    5. Steel roll (chromium coated): ≈ Ø 400 mm (chrome)
    6. Bottom roll: ≈ Ø 440 mm (hydraulic)
    7. Max. linear pressure: 250 kg/cm
    8. Heating system: steel roll includes internal heating system with thermal oil 200 °C
    9. Installed power required: ca 52.4 kW
    10. Main drive motor: ca 4 kW
    11. Hydraulic unit motor: ca 4 kW
    12. Cooling unit motor: ca 2.2 kW
    13. Heating unit: ca 40 kW
    14. Winder unit motor: ca 2.2 kW
  3. Condition
    1. More information is available upon request
