Wartsila, 18V34SG, 2006, 6.2 MW, 50Hz, Gas Generator

Wartsila, 18V34SG, 2006, 6.2 MW, 50Hz, Gas Generator

Description

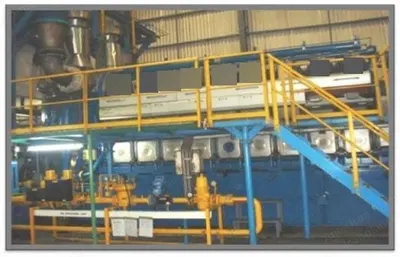

  1. Gas Engine
    1. Manufacturer: Wartsila (Finland)
    2. Type: 18V34SG
    3. Capacity: 6210 kW
    4. Speed per second: 12.5 r/s
    5. Rpm: 750 rpm
    6. Date of manufacture: March 2006
  2. Alternator
    1. Manufacturer: ABB (Finland)
    2. Type: AMG0900LROB
    3. Year: 2006
    4. Phase: 3
    5. Output: 7491 kVA
    6. Duty: 51
    7. Connection: Y
    8. Frequency: 50 Hz
    9. Speed: 750 rpm (nr 900)
    10. Weight: 21600 kg
    11. Insulation: Class F
    12. Enclosure: IP-23
    13. Cooling: IC 0A1
    14. Voltage: 11000
    15. Current: 393
    16. Power factor: 0.8
    17. Ambient temperature: 50 deg. C
    18. Excitation: 88 V DC, 8.7 A DC
  3. Gas System

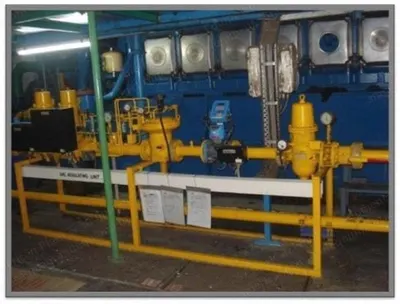

    1. Gas regulating unit
    2. Gas filtration unit
    3. Gas filter (inside the plant)
    4. Gas filter (inside the plant)
    5. Gas filter no. 1 (outside the plant – A side)
    6. Gas filter no. 1 (outside the plant – B side)
  4. Engine Control System
    1. Engine control system

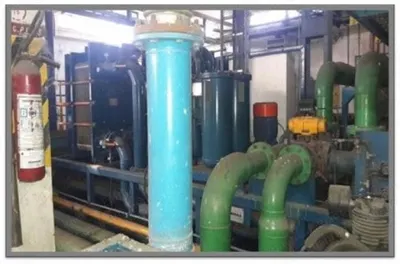

  5. Cooling System
    1. Cooling system
  6. Air System
    1. Air system
  7. Heat Recovery System
    1. Waste heat recovery boiler (WHRB)
    2. Capacity: 5 ton/hrs
    3. Make: Transparent Energy Systems
    4. Heating surface area: 1173 sq mtrs
    5. Design pressure: 10.54 kg/cm2
    6. Power plant stack and duct and structure
    7. Ventilation system and duct
    8. Smoke detector system
    9. Gas leakage detector system
    10. 6 MW main LV panel
    11. Earthing trolley upper
    12. Earthing trolley lower
