Schlafhorst, Autocoro 360, 2005, Open End Spinning Plant, 4320 Rotors, 12 Machines

Schlafhorst, Autocoro 360, 2005, Open End Spinning Plant, 4320 Rotors, 12 Machines

Description

  1. Overview
    1. Complete spinning preparation and rotor spinning line, stopped but trial run possible.
  2. Filter Plants
    1. Filter plant LTG 1 for aspiration and filtering of opening and carding wastes (for preparation department), LTG, 2005, capacity 195,000 m³/hour.
    2. Filter plant LTG 2 for aspiration and filtering (for spinning department), LTG, 2005, capacity 305,000 m³/hour.
  3. Opening and Blending Equipment
    1. Automatic bale opener, Trutzschler, 2004, capacity 600 kg/hour.

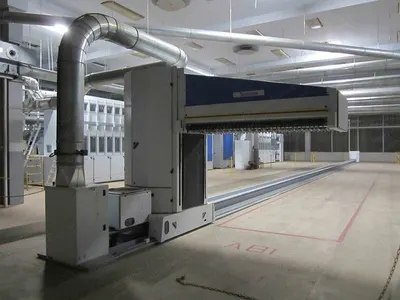

    2. Blendomat BO-A2300, width 2300 mm, length 23045 mm, with microprocessor BLENDCOMMANDER.

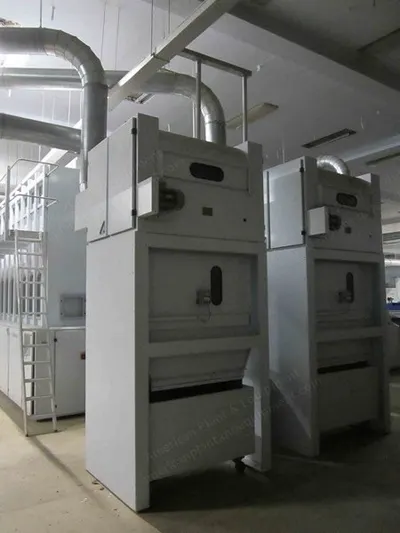

    3. Multifunctional impurity trap SP-MF, Trutzschler, 2004, completed with fan, heavy parts separator, metal detector, spark sensor, fast bolt-valve and trolley for wastes.

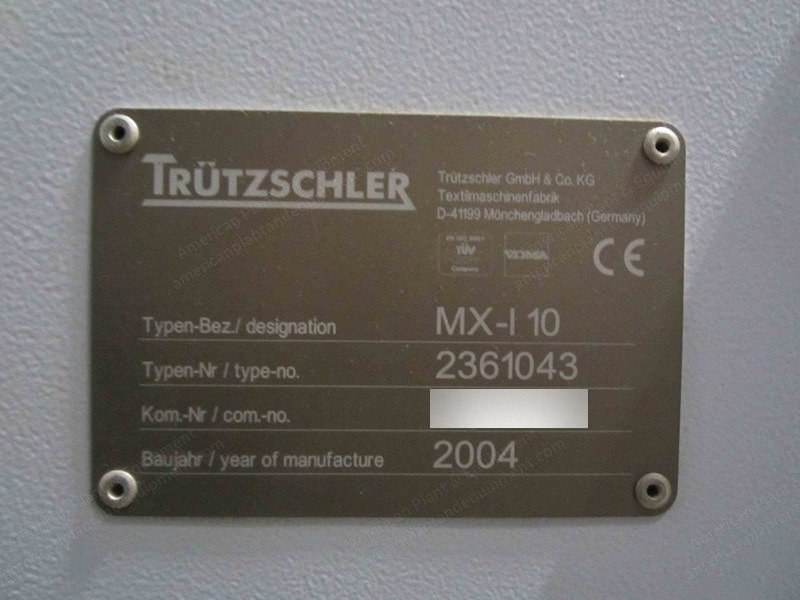

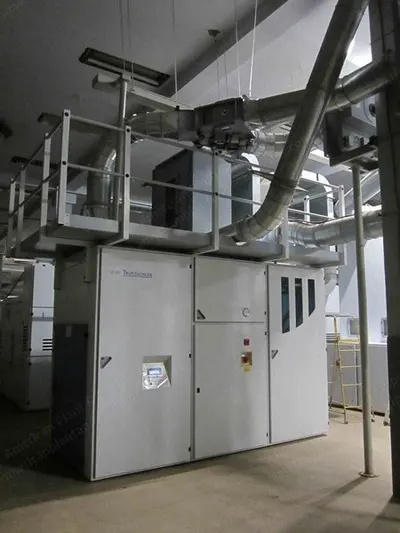

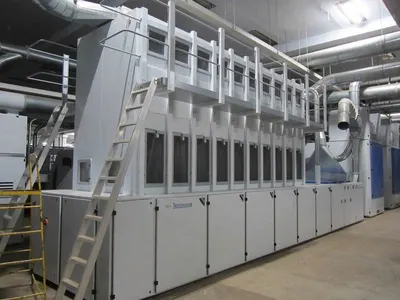

    4. Multi-sectional mixer МХ-110, Trutzschler, 2004, quantity 2, with 10 mixing chambers for controlled mixing, direct connection CLEANOMAT cleaner and/or with TUFTOMAT opener, microprocessor.

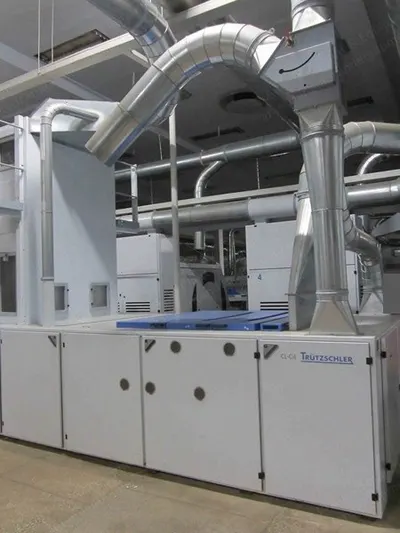

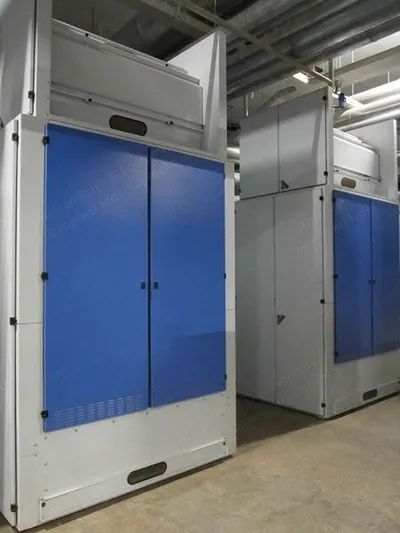

    5. CLEANOMAT CL-C4 cleaner, Trutzschler, 2004, quantity 2, capacity 800 kg/hour, high-production cleaner with 1 central roll and 3 additional rolls, 2 cleaning devices, setting of waste quantity and cleaning degree, microprocessor.
  4. Carding Machines

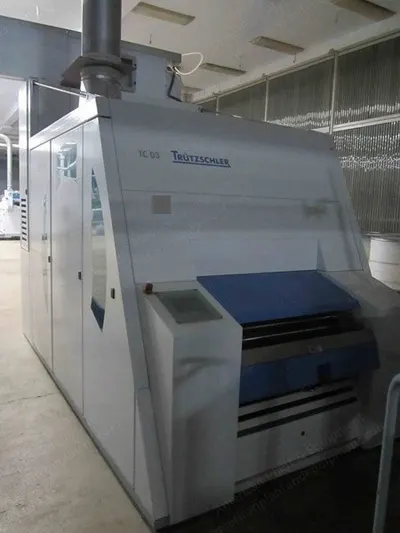

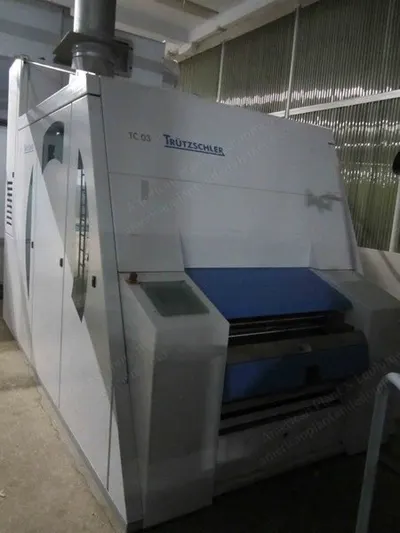

    1. Coton carding machine TC-03, Trutzschler, 2004, quantity 15, capacity 80 kg/hour.
    2. DIREKTFEED integrated feeding, Sensofeed, preliminary carding system, WEBFEED, MULTIWEBCLEAN, WEBSPEED.
    3. Central aspiration system with control device.
    4. PFS caps precision adjustment system.
    5. PMS knifes precision adjustment system.
    6. Touchscreen computer control.
    7. Automatic cans change, cans diameter 1000 mm, height 1200 mm.
  5. Draw Frames

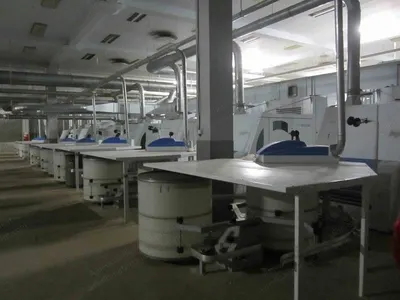

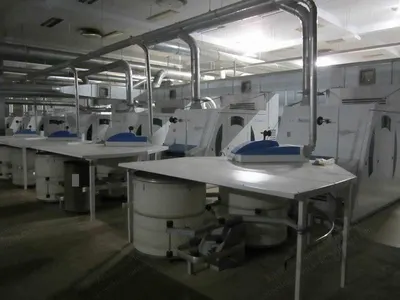

    1. Draw frames TD-03 2 passages, Trutzschler, 2005, quantity 14.
  6. Rotor Spinning Machines

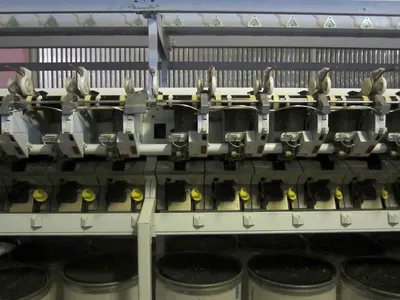

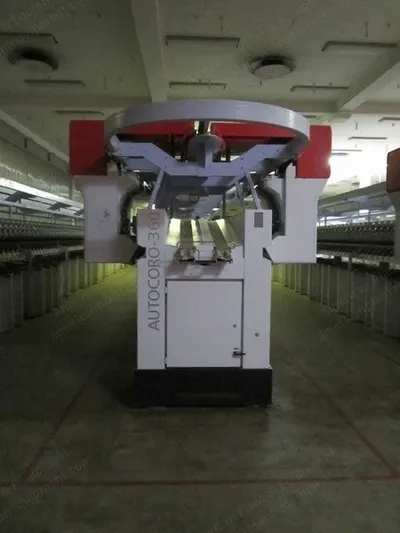

    1. Rotor spinning machine "Autocoro 360", type SRZ for cylindrical bobbins, Schlafhorst, 2005, quantity 12, capacity 182.50 kg/hour (Ne 12), 90.00 kg/hour, 73.50 kg/hour, 52.5 kg/hour, 49 kg/hour, 40.5 kg/hour.
    2. Corobox12 spinning chambers and 2 Coromat, 360 rotors.
    3. Corolab 8 quality control system completed with optical sensor on each spinning head, yarn regularity control, waxing device.
    4. Rotor spinning machine "Autocoro 360", type SRZ for cylindrical bobbins, Schlafhorst, 2005, quantity 2, with Corobox12 spinning chambers and 2 Coromat, 360 rotors, for yarn counts Ne 20, Ne 24, Ne 30, Ne 32, Ne 35.
    5. Corolab 8 quality control system completed with optical sensor on each spinning head, yarn regularity control, waxing device.
  7. Accessories and Consumables
    1. Spinning bobbin (polypropylene), Sonoco plastics Germany GmbH, 2005, quantity 133,574.
    2. Spinning bobbin 170 x 60 x 54 (80 g, carton), Herbster GmbH & Co. KG, quantity 67,713.

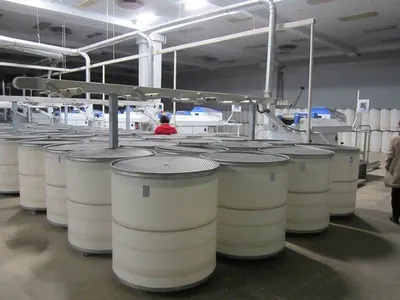

    3. Sliver cans 450 x 1070 x 2 mm, Vogt GmbH & Co. Kg, 2005, quantity 7,000, for Trutzschler.
    4. Sliver cans 1000 x 1100 x 3 mm, Vogt GmbH & Co. Kg, 2005, quantity 150, for Schlafhorst (Autocoro 360).
  8. Condition
    1. Plant is stopped but trial run is possible.
