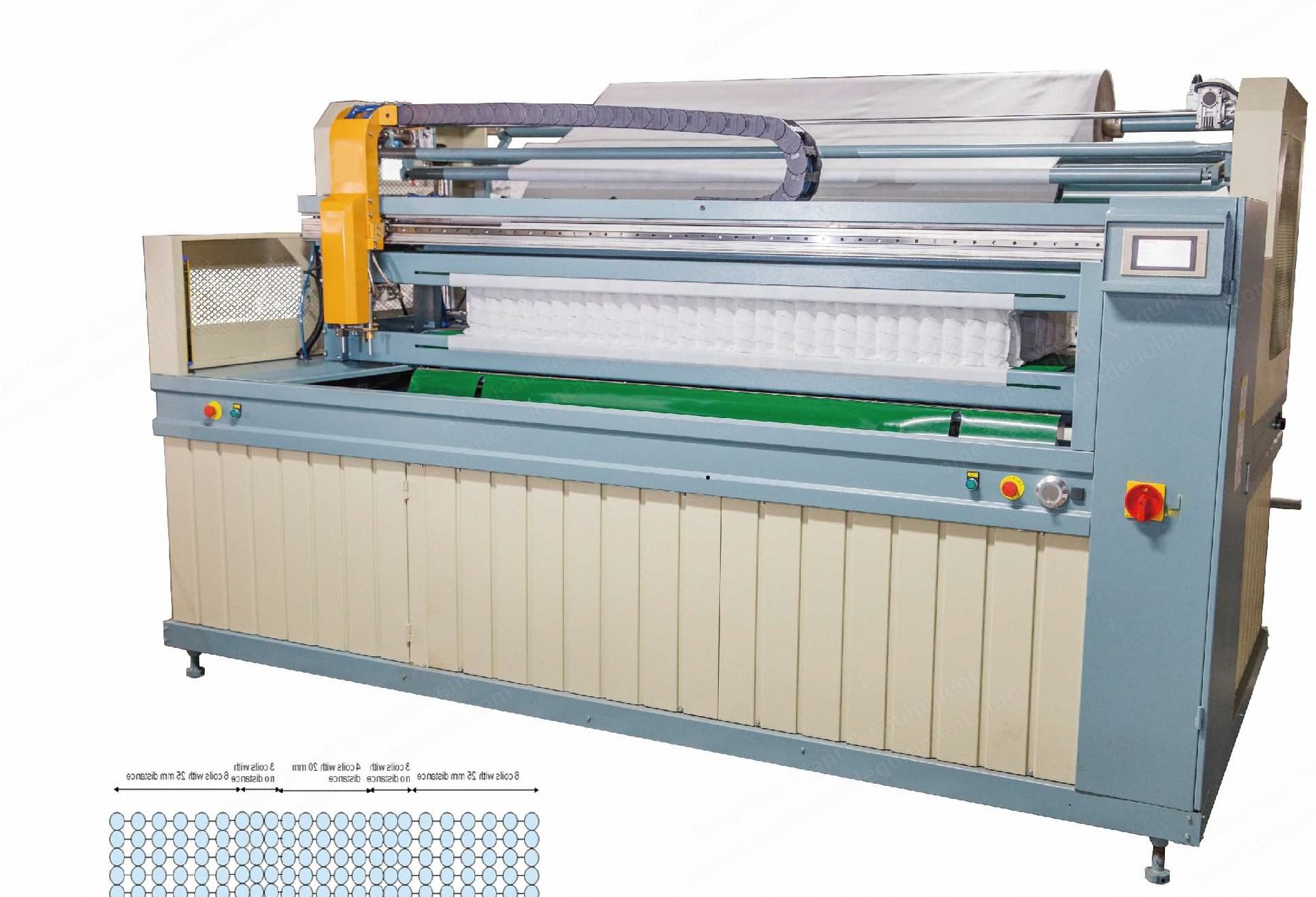

NovaStar, SB214, Manual Pocket Spring Assembly Machine, 2200mm Max Width, 5 to 6 Strings/min (New)

NovaStar, SB214, Manual Pocket Spring Assembly Machine, 2200mm Max Width, 5 to 6 Strings/min

Description

  1. Overview
    1. Capacity: 5 to 6 strings per minute
    2. Gluing method: continuous gluing
    3. Possibility of assembling zoned tape
    4. Possibility of assembling/zoning mattress
    5. Machine can glue top and bottom fabric
  2. Specifications
    1. Capacity of glue tank: 7 kgs
    2. Air consumption: 0.1 cubic meters per minute
    3. Air pressure: 0.6 to 0.7 Mpa
    4. Power consumption: 6.5 kW
    5. Voltage: 3 AC 480 volts
    6. Frequency: 50/60 Hz
    7. Input current: 10 amps
    8. Weight: approx. 2600 kgs
  3. Fabric Details
    1. Fabric density: 65 to 80 grams per square meter
    2. Fabric width: 450 to 2200 mm
    3. Inner diameter of fabric roll: 60 mm minimum
    4. Outer diameter of fabric roll: max. 600 mm
  4. Additional Information
    1. More information is available upon request.
