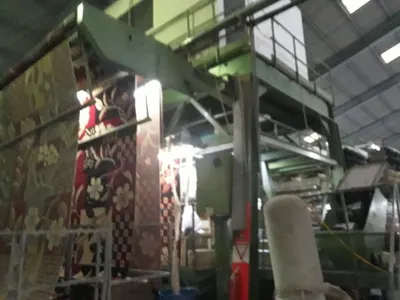

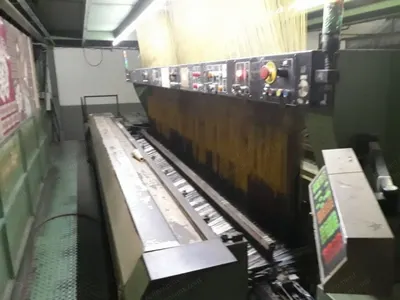

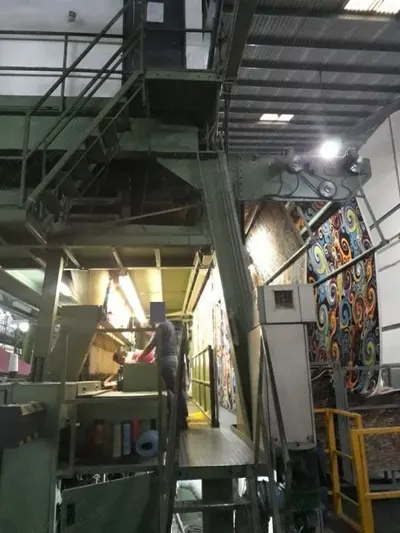

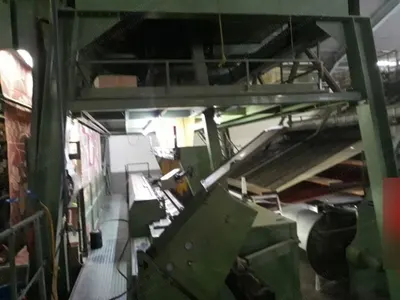

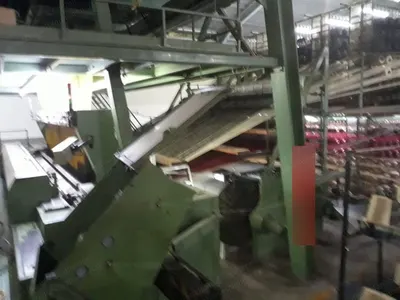

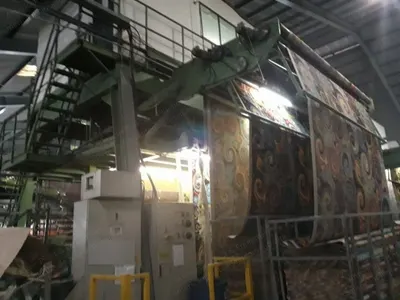

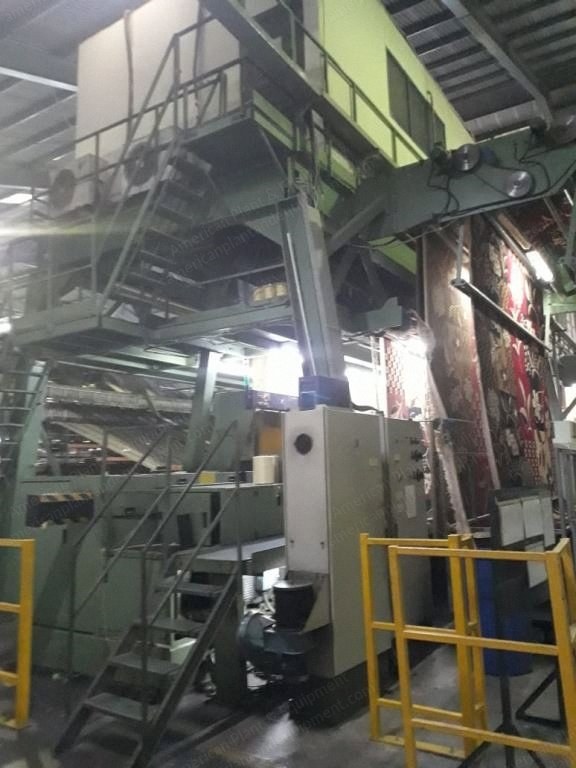

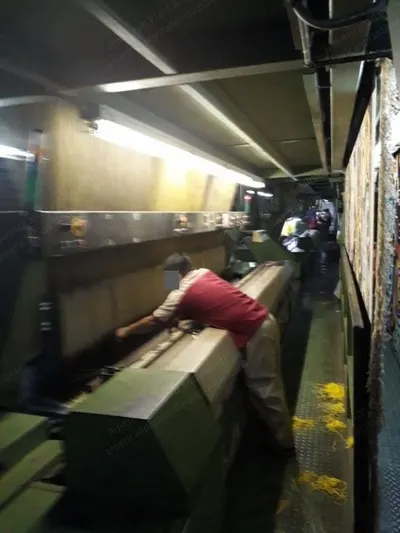

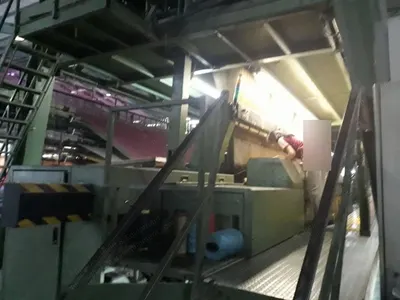

Van De Wiele, CRM 72, 1995, 430cm Working Width, Velvet Looms

Van De Wiele, CRM 72, 1995, 430cm Working Width, Velvet Looms

Description

  1. Overview
    1. Manufacturer: Michel Van de Wiele
    2. Loom type: CRM-72-430 (machine 1) and CRM 72-430 (machine 2)
    3. Loom serial number and year: G-4104-003, year 1995 (machine 1); G4426-002, year 1996 (machine 2)
    4. Jacquard type: PTR
    5. Power type: 3 phase AC + ground
    6. Supply voltage: 440 AC, 60 Hz, 30 kW DC motor
    7. Monitor type: CRT
    8. Software version: Data controller – 12.0f.p, I/O controller 12.0
    9. Status: Both machines are still running and available
    10. Dismantling: Seller prefers buyer to provide dismantling services
  2. Specifications
    1. Working width: 400 mm
    2. Reed: 320 (machine 1), 300 (machine 2)
    3. Number of frames: working 5, capacity 6 (machine 1); working 8, capacity 8 (machine 2)
    4. Number of ground frames: 4 (machine 1), 6 (machine 2)
    5. Number of working harness: working 5, capacity 6 (machine 1); working 8, capacity 8 (machine 2)
    6. Number of hooks: 6400 (machine 1), 9600 (machine 2)
    7. Total solenoids and in use: 6400/6400 (machine 1), 9600/9600 (machine 2)

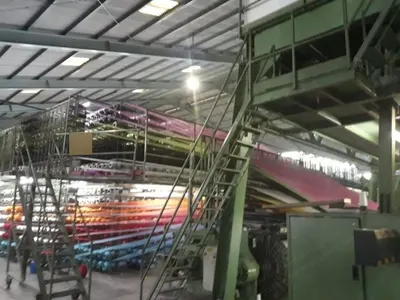

    8. Number of prewinders: two, quartz type
    9. Ground warp stop motion: yes
    10. Pile warp stop motion: yes, 5 (machine 1); yes, 8 (machine 2)
    11. Pick finding device: yes, motor with gear box
    12. Lancet: 18-20-22-24 (machine 1), 24-26-28-30 (machine 2)
    13. Pick regulator: modified, Lenze motor
  3. Jacquard Details

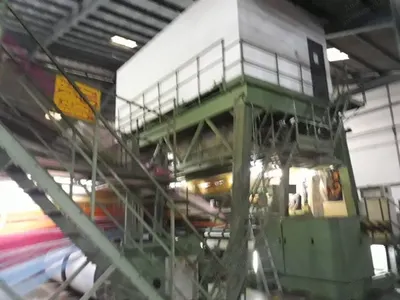

    1. Jacquard number: 2 jacquards 686 and 687 (machine 1), 3 jacquards (machine 2)

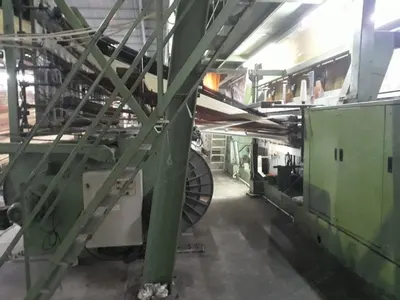

  4. Beam and Stand
    1. Beam stand type: low

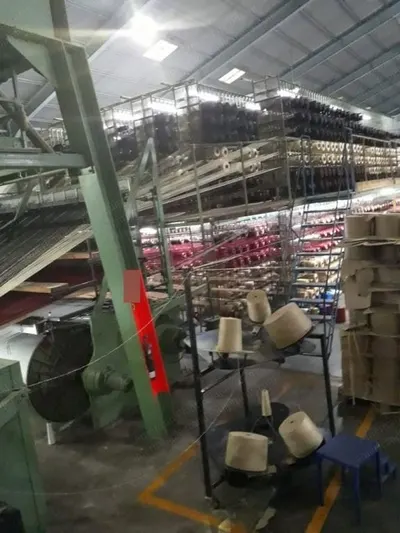

    2. Number of beams: 4
    3. Jute stand: standard CRM type
  5. Condition
    1. Both machines are still running and available
    2. Seller prefers buyer to provide dismantling services
