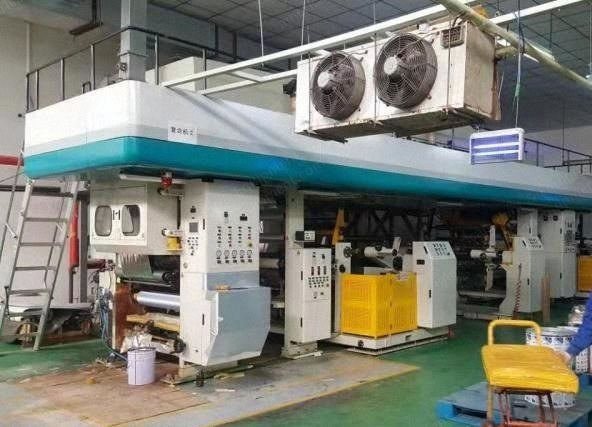

NovaStar, LC154, Fixed-Point Glue Dry Composite Machine, 650-1050mm Composite Film Width, 220m/min Max Speed (New)

NovaStar, LC154, Fixed-Point Glue Dry Composite Machine, 650-1050mm Composite Film Width, 220m/min Max Speed

Description

  1. Overview
    1. Film direction: from left to right
    2. Composite film width: 650-1050 mm
    3. Guide roller body length: 1100 mm
    4. Maximum mechanical speed: 220 m/min
    5. Maximum laminating speed: 200 m/min (laminating aluminum foil 150 m/min, with fixed point coating 120 m/min)
  2. Unwinding and Rewinding
    1. First unwinding diameter: max. 600 mm
    2. Second unwinding diameter: max. 600 mm
    3. Rewinding diameter: max. 800 mm
    4. Unwinding paper core: 76 x 92 mm (3 inches) and 150 x 168 mm (6 inches)
    5. Rewinding paper core: 76 x 92 mm (3 inches) and 150 x 168 mm (6 inches)
    6. Retracting and unwinding struts: pneumatic cone top
  3. Laminating and Coating
    1. Compound pressure: up to 2000 kg
    2. Wire roller diameter: 200 mm
    3. Wire roller line number: 80-200 lines per inch
    4. Drying machine glue amount: 2-5 g/m²
