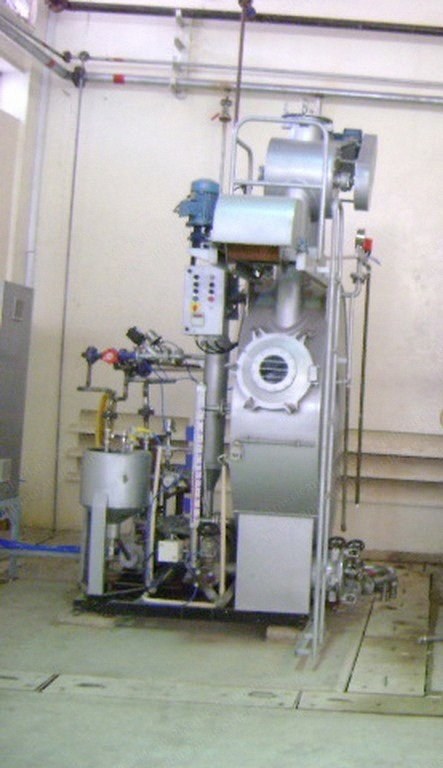

NovaStar, Soft Flow Dyeing Machine, 25 kg Capacity, 135 C, 5 HP (New)

Description

Overview
1. Capacity: 25 kg
2. Material construction (HTHP vessel): 316 L, 5 mm
3. Pump: SS 316, motor 5 hp
4. Vessel diameter: 1500 mm
5. Total length: 2500 mm
6. Total width: 3000 mm
Operating Specifications
1. Maximum working high temperature: 135° C
2. Maximum working pressure: if required, 3 kg/cm²
3. Liquor ratio: 1:5 to 1:6 (depends on quality of fabric)
Tube and Nozzle Details
1. Tube: 25 x 1
2. Tube size: diameter 168 mm
3. Nozzle size (threaded): n/a
4. Nozzle size (overflow): diameter 190 x 168 mm
Winch and Pump Specifications
1. Inside winch: 1.5 hp x 1
2. Fully auto col. tank injection pump: 0.5 hp, 3000 rpm
3. Unloading winch: 0.5 hp, 200 rpm gear
Col. Tank and Auto Functions
1. Col. tank: 40 liters x 2 nos
2. Fill (auto): diameter 1.5” x 1
3. Drain (auto): diameter 1.5” x 1
4. Overflow (auto): diameter 1.5” x 1
5. Heat (auto): diameter 1”
6. Cool (auto): diameter 1”
Additional Information
1. More information is available upon request.
