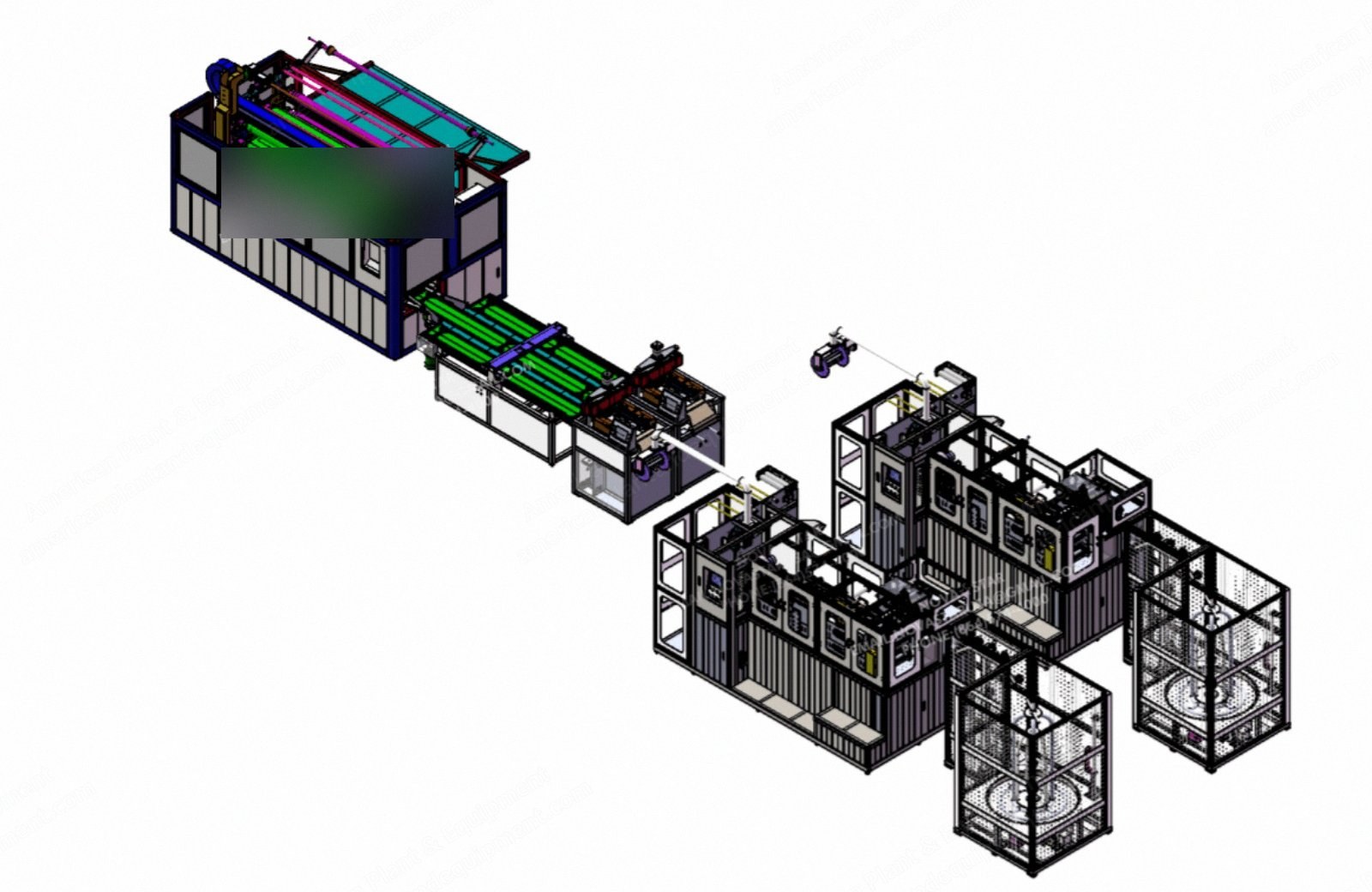

NovaStar, SB226, Automatic Pocket Spring Machine, Wire Diameter 1.6 to 2.4mm, Spring Height 80 to 200mm (New)

NovaStar, SB226, Automatic Pocket Spring Machine, Wire Diameter 1.6 to 2.4mm, Spring Height 80 to 200mm

Description

  1. Overview
    1. Available in the following models: SB226, 100E1, 100S2, 100E2, and 110E.
    2. Speed (min/net): 3.5 for models SB226, 100E1, 100S2, and 100E2; 3 for model 110E.
    3. Zone function: standard for models SB226, 100E1, and 110E; standard and special for models 100S2 and 100E2.
  2. Specifications
    1. Nonwoven supply: 60 to 100 g/m².
    2. Wire diameter: 1.6 to 2.4 mm for models SB226 and 100S2; 1.6 to 2.2 mm for models 100E1, 100E2, and 110E.
    3. Pocket spring height: 80 to 200 mm (customizable).
    4. Spring core diameter: 50 to 72 mm (customizable).
    5. Air consumption: 1.6 m³/min at 0.8 MPa.
    6. Total power: 75.
  3. Additional Information
    1. More information is available upon request.
