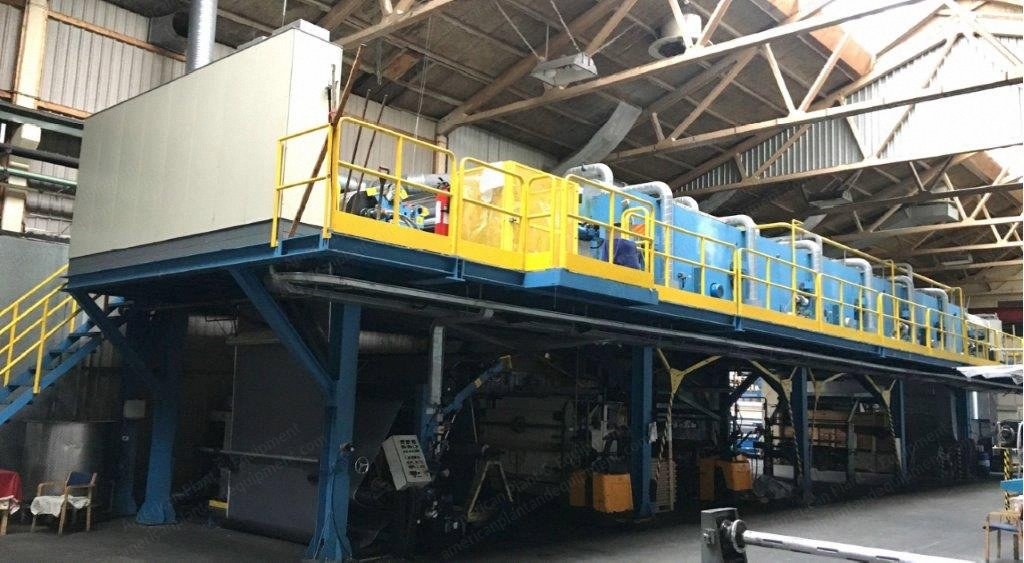

Complete Coating Plant, For Blind Material Production

Complete Coating Plant, For Blind Material Production

Description

  1. Overview
    1. Factory area of 4,000 m² production capacity
    2. 3 coating lines with widths up to 240 cm / 280 cm
    3. Capacity of approximately 6 million m² of coating per year (blackout for roller blinds)
    4. Stenter frame
    5. Drying, curing and cutting
    6. Padding unit
    7. Applications: softener, water repellence, FR and more
    8. Cutting machine (especially for wallpaper)
    9. Calander up to 60 ton
    10. Laboratory
  2. Alu Coated Products (Sunscreen)
    1. Increases the reflection of the solar power
    2. Blackout and blockout textiles for roller blinds
    3. Colour coated and coated with acrylic
    4. Transparent/translucent textiles for roller blinds
    5. Coated with acrylic
    6. All colours
    7. Home textile applications, table cloths etc.
    8. Acrylic coated and anti-dirt treated, without PVC
    9. Water resistant, FR treated
    10. Digital printing
    11. Blackout textiles for roller blinds
    12. Textiles for advertising banners for in and outdoor use
    13. Indoor textile with flame retardant treatment
  3. Wallpaper Production
    1. Self-adhesive wallpaper
    2. Preglued wallpaper
    3. Activated by water
    4. Prepainted
    5. Glassfibre, paper etc.
    6. Prepared for digital printing
  4. Santa Lucia / Krantz Coating Line
    1. High entrance gantry, E+L edge guiders, Bianco weft straightener, operator platform
    2. Santa Lucia coater, type doctor knife, 2200 mm working width, year 2014
    3. Krantz stenter, 3 chambers heated by gas
    4. Pin/clip chain 2200 mm, renovated in 2016
    5. Exit with a frame batcher
  5. Isotex Coating Range No. 1
    1. Model KR/RA, 2400 mm working width
    2. High entrance gantry, E+L edge guiders, doctor blade + foam knife, year 2000
    3. Isotex 3 chamber stenter, heated by thermic fluid
    4. Exit with calender 6 tonnes, cooling cylinder, a frame batcher

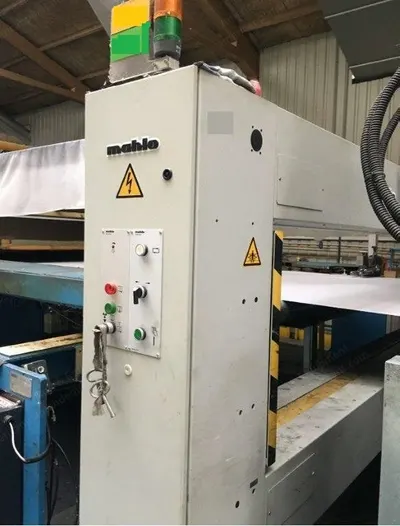

    5. Includes a Hansa foam generator, Mahlo weight measuring device
  6. Isotex Coating Range No. 2
    1. Model CA, 2800 mm working width, year 2006
    2. High entrance, E+L edge guiders
    3. Doctor blade + foam knife, calender 11 tonnes at exit
    4. Isotex 3 chamber stenter, heated by gas
    5. Includes a Hansa foam generator, Mahlo weight measuring device
    6. Heat recovery and filtration system, located on an elevated steel gantry
  7. Ramisch Calender
    1. Model RKK360, year 1994
    2. 3 rollers, 2400 mm width, friction drive, 60 tonnes max. pressure
    3. Entrance gantry with seam and metal detectors, operator platform
    4. 3 rollers: steel / cotton / steel schreiner engraved
    5. Exit with a frame batcher
  8. Krantz Stenter
    1. Year 1995, 4 chambers, heated by gas
    2. 2200 mm pin/clip chain
    3. Entry with scray, evac wet on wet system, Bianco weft straightener
  9. Vald Henriksen Jiggers
    1. 4 units total
    2. 2 x 2000 mm working width, 1000 mm batch diameter
    3. 1 x 2800 mm working width, 1000 mm batch diameter
    4. 1 x 3400 mm working width, 1200 mm batch diameter
