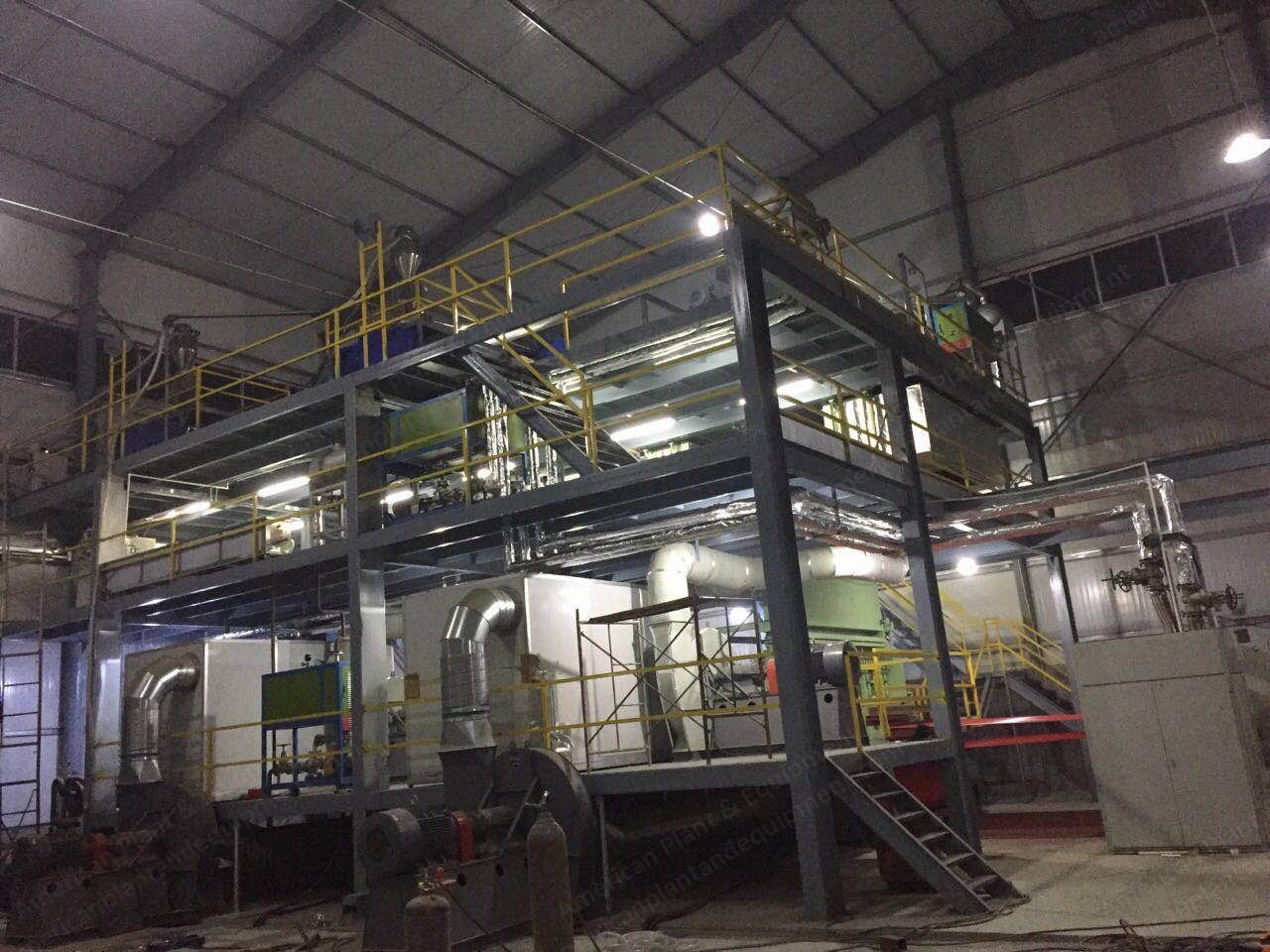

NovaStar, NN395, Meltblown Nonwoven Fabric Equipment, Fabric Width 1600mm, 60m/min, 380V (New)

Description

Overview
1. Meltblown section designed for high melting index materials
2. Meltblown section melting index: 1200 to 1800 ± 100 g/10 min
3. Meltblown ash: less than 250 ppm
4. Meltblown section moisture: less than 0.2%
5. Meltblown fiber diameter: 1 to 6 um
Specifications
1. Width of finished fabric: 1600 mm (greater than 20 g/m²)
2. Finished cloth specifications: 20 to 70 g/m²
3. Meltblown screw specifications: φ90 × 30 (separate screw)
4. Meltblown die heads: 1
5. Production line mechanical speed: 80 m/min; maximum process speed: 60 m/min
6. Working power: AC 380 V ± 5%, 50 Hz
Output
1. Standard cloth output: 600 tons (common meltblown cloth above 25 g/m², 8000 hours per year; due to the limitation of the processing capacity of the electret equipment, usually the production of electret products is relatively low)
Additional Information
1. More information is available upon request

HS code	8449.00

Capacity	600 tons/year
Finished Cloth Specifications	20 - 70g/m2
Screw Specifications	90 x 30

Voltage	380 V

Working width	1,600 mm
