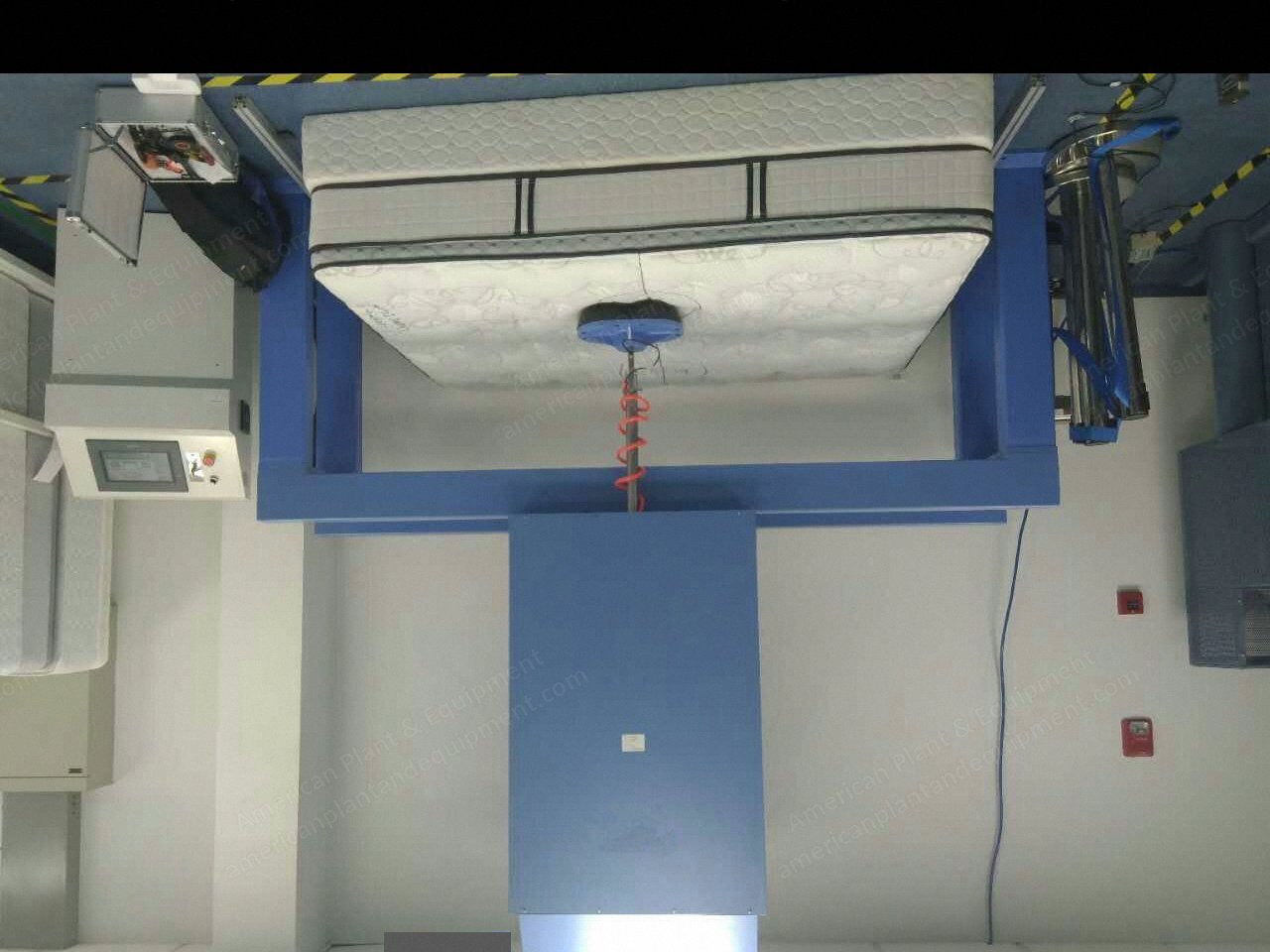

NovaStar, MC170, Cornell Type Mattress Testing Machine, Touch Screen, 2200x2200mm Table, 220V (New)

Description

Overview
1. Touch screen controls
2. Function: to test mattresses using impact and durability tests, also to test the rebound loss rate of the mattress under different high speed impact cycles
3. Can test the thickness and changes of the mattress under testing
Specifications
1. Size of testing table: 2200 mm x 2200 mm (L x W)
2. Max. size of mattress: 2200 mm x 2200 mm (L x W)
3. Impact speed: 100 to 160 times per minute (adjustable)
4. Continuous loading impact and torsion test: 1 to 300 mm per minute
5. Sensor accuracy: 5000 N, accuracy up to 0.5%
6. Testing load: ellips 215 x 355 mm R108 impact pad, weight 11.5 kg
7. Testing times: 0 to 999,999 times (adjustable)
8. Machine weight: 980 kgs
9. Power: 220 volts, 16 amps, 1200 watts
10. Dimensions: 2460 mm x 2100 mm x 2460 mm
Standard Accessories
1. Impact hammer that meets ASTM F1566-9.3
2. Software CD, USB cable
3. Operation manual, maintenance manual
4. Tool box (hexagon wrench, monkey wrench, cross screwdriver, straight screwdriver)
5. Measurement certificate

Capacity	Max. mattress size 2200x2200mm
Control system	Touch Screen
Impact Speed	100 to 160 times per minute
Testing Load	Ellips 215 x 355mm R108 impact pad, weight 11.5 kg

Dimensions	2460mm x 2100mm x 2460mm
Weight	980 kg

Voltage	220 V
