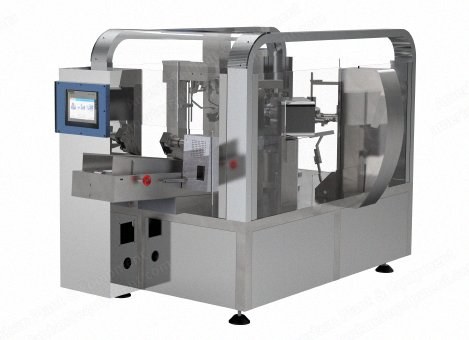

NovaStar, GK122, Bean Packing Machine, 25 to 60 Bags per Minute, 10-Head Weighing Scale, Z-Type Conveyor (New)

NovaStar, GK122, Bean Packing Machine, 25 to 60 Bags per Minute, 10-Head Weighing Scale, Z-Type Conveyor

Description

  1. Overview
    1. With ten-head weighing scale, platform, and z-type conveyor
    2. For candies, biscuits, peanuts, cookies, pistachios, brown sugar, pickles, etc.
    3. Bag size: 80 to 220 mm wide, 100 to 300 mm long
    4. Filling volume: 10 to 1500 grams
    5. Capacity: 25 to 60 bags per minute
    6. Power: 5 kW
  2. Working Process
    1. Bag feeder
    2. Date printer and open zipper
    3. Opening
    4. Filling
    5. Filling (2)
    6. Close zipper
    7. Sealing
    8. Sealing (2)

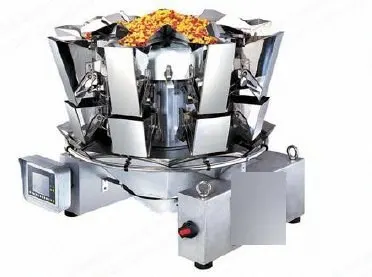

  3. Ten-Head Weighing Scale
    1. Weight range: 10 to 1000 grams
    2. Max weight: 3000 grams
    3. Average error per bag: 0.2 to 0.7 grams
    4. Accuracy range: 0.1 to 1.5 grams
    5. Max speed: 60 bags per minute
    6. Feeder bucket capacity: 1300 ml
    7. Dimensions: 1150 x 950 x 1129 mm
    8. Dimensions with packaging: 1400 x 1130 x 1120 mm
    9. Voltage: 200 volts, 50/60 Hz
  4. Z-Type Conveyor
    1. Power: 0.75 kW
    2. Conveying ability: 3 to 6 cubic meters per hour
    3. Voltage: 220 volts
    4. Gross weight: 560 kgs
  5. Condition
    1. More information is available upon request
