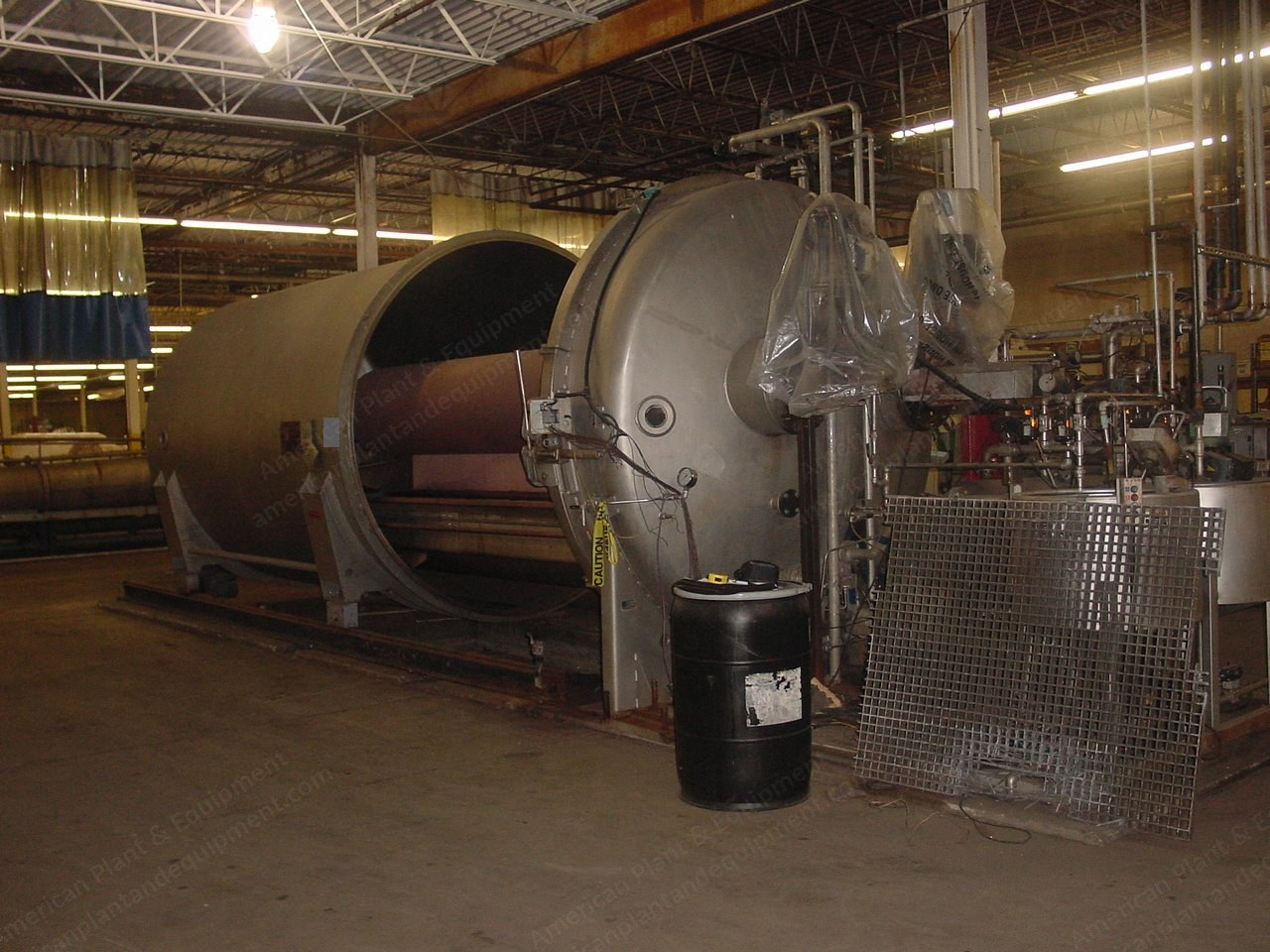

Zimmer, Jig-Matic JM-58-HT-E, 2001–2002, 3400mm Width, 1475mm Roll Diameter, 15–150 m/min, Electric Dyeing Jig

Zimmer, Jig-Matic JM-58-HT-E, 2001–2002, 3400mm Width, 1475mm Roll Diameter, 15–150 m/min, Electric Dyeing Jig Sold

Description

  1. Overview

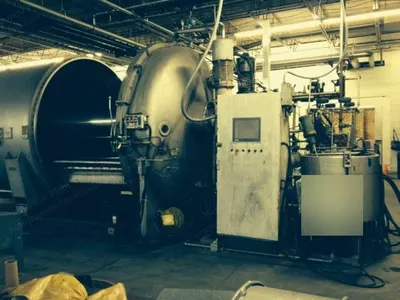

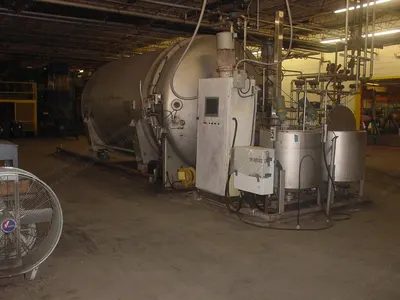

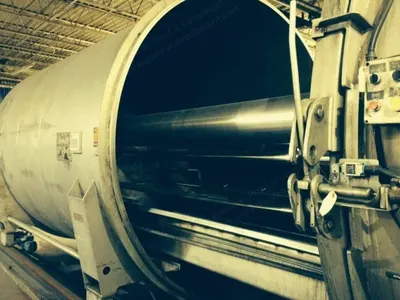

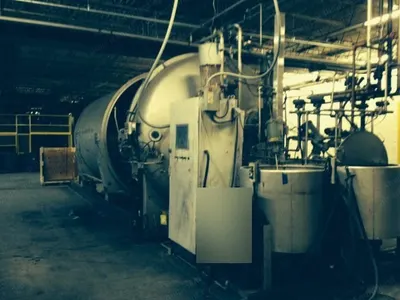

    1. Two Zimmer Jig-Matic pressure dye jig vessels by
    2. Machine A: year 2001, 134 in wide x 60 in diameter batch
    3. Machine B: year 2002, width 134 in x 60 in diameter batch
    4. Standard electric dyeing jig
    5. Model JM-58-HT-E
    6. For dyeing fabrics in open width
    7. Maximum roll diameter: 1475 mm (58)
    8. Roller width: 3400 mm (134)
    9. Beckhoff PLC/PC control system CX1010 with touchscreen
    10. Enclosure fabricated of type 316 stainless steel
  2. Technical Specifications
    1. Constant fabric speed: minimum 15 m/min (16 yards/min), maximum 150 m/min (165 yards/min)
    2. Beam diameter: 324 mm (12.75)
    3. Maximum fabric roll diameter: 1475 mm (58)
    4. Beam face: 3400 mm (134)
    5. Fabric width maximum: 3200 mm (126)
    6. Service voltage: 3 phase, 480 V, 60 Hz
  3. Machine Dyeing Capacity
    1. Heavy corduroy: 408 g/m², 1150 m
    2. Upholstery: 390 g/m², 1385 m
    3. Medium heavy corduroy: 290 g/m², 2300 m
    4. Linen: 272 g/m², 2770 m
    5. Twill: 290 g/m², 2770 m
    6. Cretonne, satin: 238 g/m², 3460 m
    7. Gabardine, rainwear: 170 g/m², 4155 m
    8. Poplin: 136 g/m², 5860 m
    9. Shirting: 120 g/m², 6920 m
    10. Viscose, lining: 85 g/m², 6920 m
  4. Condition
    1. Quantity: 2
