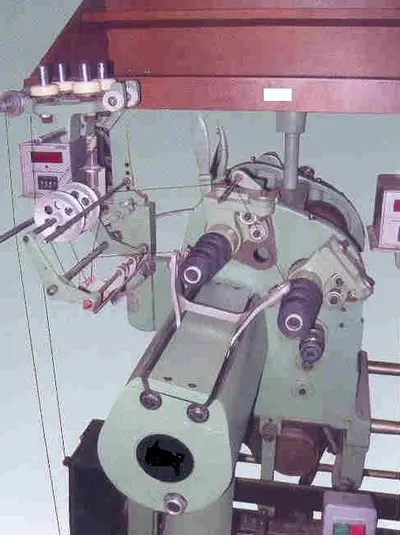

Description Overview For king spool plastic tube Straight cardboard core tube, 25 mm cylindrical Each spindle will wind simultaneously Length measurement by counter meter knock-off Break detector on each end of thread Guide pressure adjustment Lay adjustment Specifications 2 cones of 6” traverse up to 4 inch diameter 2 cones of 4” traverse up to 4 inch diameter 2 cones of 4” traverse up to 5 inch diameter 2 cones of 6” traverse up to 5 inch diameter Spindle speed: maximum 2100 rpm Power: 6 spindles - 2 hp / 12 spindles - 4 hp Mechanical Features Drive: by individual electric motor on each spindle Bearings: caged needle bearings and ball bearings are fitted Cams: the new design of high speed cams are fitted as standard Thread guides: ceramic Optional Oil emulsion / free waxer Dimensions and Weight 6 spindles: 3.3 m x 1 m (floorspace), net weight 500 kg 12 spindles: 6.3 m x 1 m (floorspace), net weight 1000 kg
