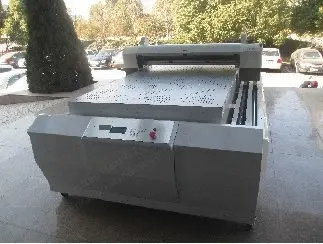

NovaStar, DP116, 1118x2000mm Print Size, CMYK+4 White, UV LED Curing (New)

NovaStar, DP116, 1118x2000mm Print Size, CMYK+4 White, UV LED Curing

Description

  1. Overview
    1. Print size: 1118 mm x 2000 mm / 1118 mm x 2500 mm
    2. Print mode: CMYK + 4 white
    3. Print resolution: 2880 dpi x 1440 dpi
    4. Ink: UV curing ink
    5. Includes the latest LED cold light technology, no radiation
    6. Lights up instantly without preheating, low printing material surface temperature and no deformation
    7. Power consumption 80 watts, traditional mercury lamp 3 kW
    8. LED lamps have 25000 to 30000 hours long life
    9. Latest generation of Epson nozzle, ink point size distribution intelligently, have higher print precision than traditional UV machine
    10. A print head has eight column orifices, double 4 color high-speed printing
    11. UV flatbed quality servo, screw guide rail system
    12. Compared with the traditional mercury lamp, UV flat-panel printers do not contain mercury, also won't produce ozone, safer, more environmental
  2. Specifications
    1. Model: UV LED DP116
    2. Size: 1.98 m x 2.00 m x 1.12 m
    3. Print size: 1118 mm x 2000 mm
    4. Print head: 180 nozzles/color x double 4 color, uses smart transform drops technology
    5. Print head technology: drops controllable Epson micro piezoelectric technology, corrosion resisting
    6. Color made: CMYK + WWWW
    7. Resolution: 1440 dpi x 1440 dpi
    8. Print height: 10 cm (adjustable, OEM order)
    9. Port: USB 2.0/1.1 port and 100Base-T Ethernet interface
    10. Ink: environmental protection UV light curing ink
    11. Print spread: 9.0 mins/A0 size
    12. Environment: temperature 5–32 °C, humidity 20–80%
    13. Power: working mode 600 W, ready mode no more than 50 W
    14. Voltage: AC 100–120 V / AC 220–240 V self-adaptation, 50/60 Hz ± 1 Hz
    15. Curing way: LED lamp curing, 25000–30000 hours super long use time
  3. Condition
    1. Includes the latest LED cold light technology, no radiation
    2. Lights up instantly without preheating, low printing material surface temperature and no deformation
    3. Power consumption 80 watts, traditional mercury lamp 3 kW
    4. LED lamps have 25000 to 30000 hours long life
    5. Latest generation of Epson nozzle, ink point size distribution intelligently, have higher print precision than traditional UV machine
    6. A print head has eight column orifices, double 4 color high-speed printing
    7. UV flatbed quality servo, screw guide rail system
    8. Compared with the traditional mercury lamp, UV flat-panel printers do not contain mercury, also won't produce ozone, safer, more environmental
  4. Included
    1. Print size: 1118 mm x 2000 mm / 1118 mm x 2500 mm
    2. Print mode: CMYK + 4 white
    3. Print resolution: 2880 dpi x 1440 dpi
    4. Ink: UV curing ink
    5. Includes the latest LED cold light technology, no radiation
    6. Lights up instantly without preheating, low printing material surface temperature and no deformation
    7. Power consumption 80 watts, traditional mercury lamp 3 kW
    8. LED lamps have 25000 to 30000 hours long life
    9. Latest generation of Epson nozzle, ink point size distribution intelligently, have higher print precision than traditional UV machine
    10. A print head has eight column orifices, double 4 color high-speed printing
    11. UV flatbed quality servo, screw guide rail system
    12. Compared with the traditional mercury lamp, UV flat-panel printers do not contain mercury, also won't produce ozone, safer, more environmental
    1. Not specified
