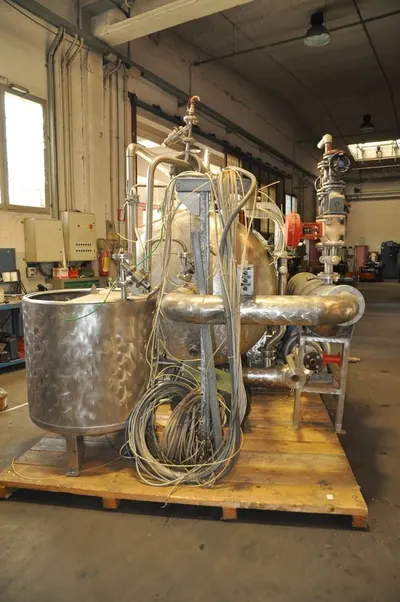

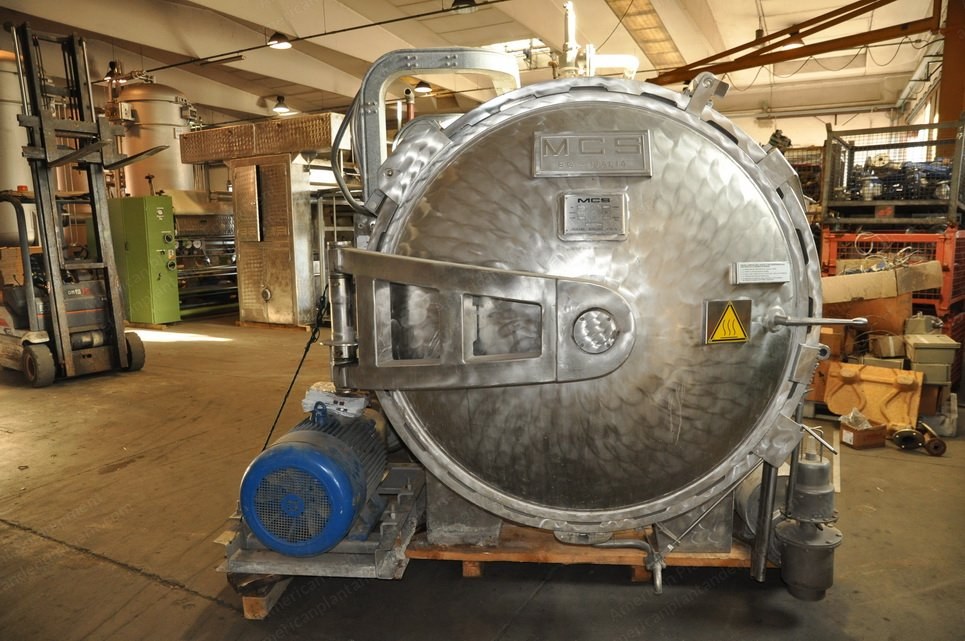

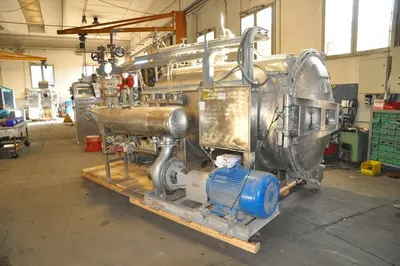

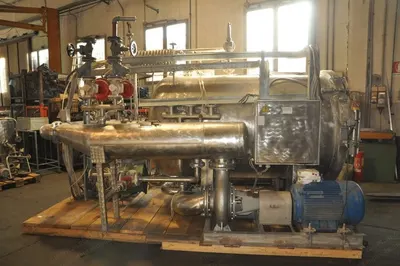

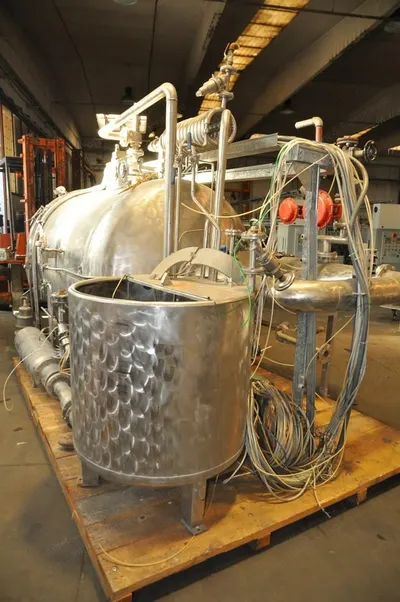

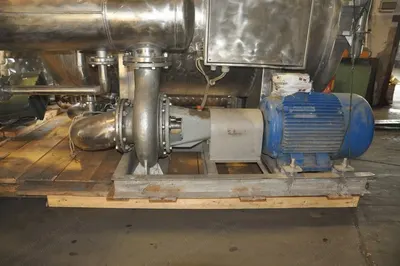

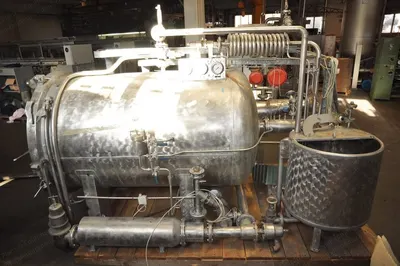

Description Overview MCS - AT-13 beam dyer high temperature open width dyeing machine Maximum beam diameter with fabrics: 1280 x 1800 mm Year of construction: 1998 Machine Equipment Fully automatic by microprocessor Termoelettronica CT 401 AT Pre-assembled connections Circulation pump with variable speed Alkali dosing with 300 liter vat HT drain discharge Automatic system (by microprocessor) Δp differential pressure control in the autoclave Technical Characteristics Max working pressure: 4 bar Max working temperature: 151 °C Volume: 3655 liters Beam diameter: 800 mm Max beam with fabrics diameter: 1480 mm Useful width: 1800 mm Diameter machine: 1400 mm Length machine opened: 5490 mm Length machine closed: 4385 mm Width machine: 2400 mm Height machine: 2270 mm Main circulation pump type: MB 150/32 Main circulation pump motor: 45 kW Main injection pump type: HTS 160/30 Main injection pump motor: 3 kW Steam consumption for cycle (steam at 6 ATE Δt 3 °C/min): 814 kg Water consumption for cycle (water at 3 kg/cmq - Δt 3 °C/min): 6.2 m3 Drain machine: DN 125 Drain vat: DN 50 Recycle pneumatic valve: DN 40 Water inlet pneumatic valve: DN 65 Steam pneumatic valve: DN 40 Cooling pneumatic valve: DN 40
