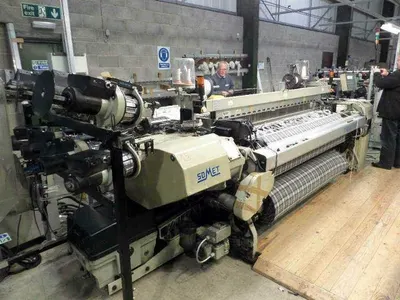

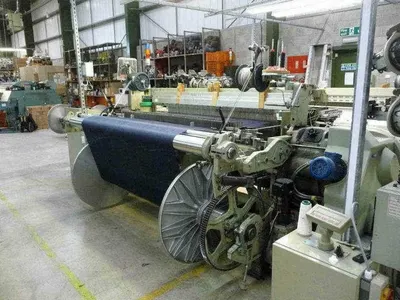

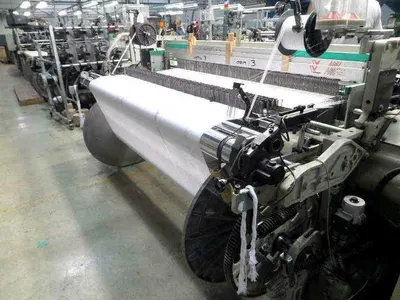

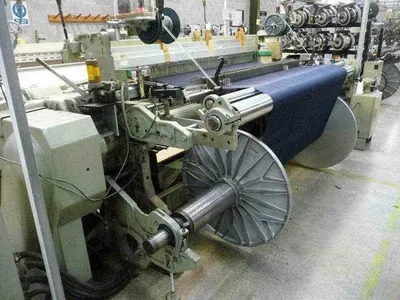

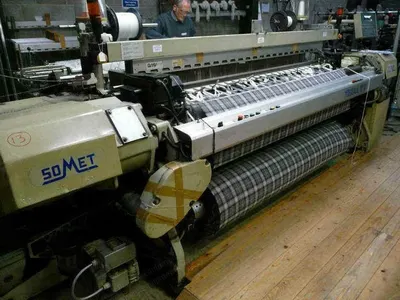

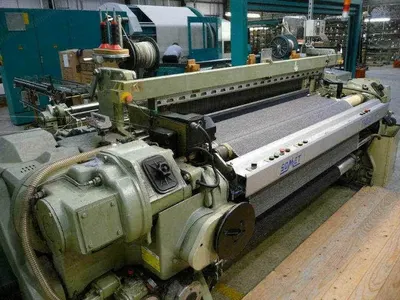

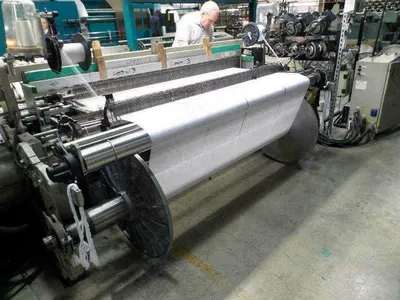

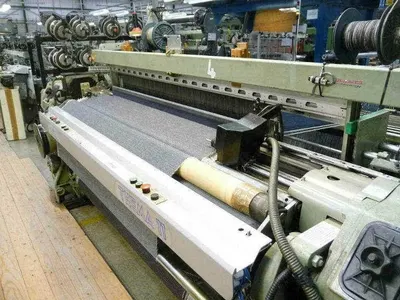

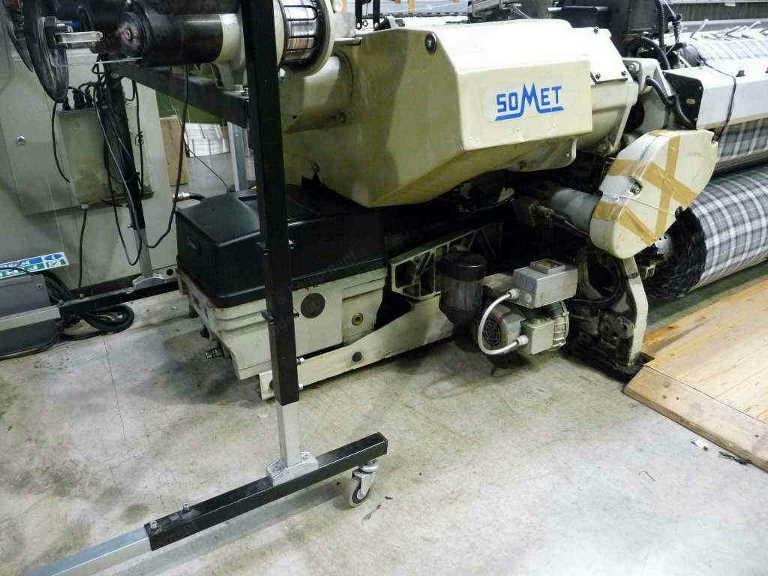

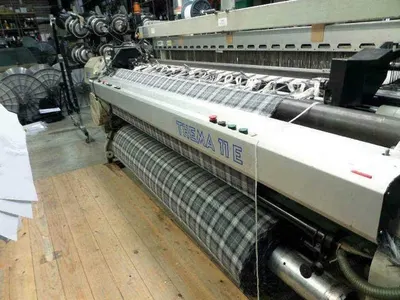

Somet, Thema II, 1989, Rapier Dobby Loom, 1900mm and 2100mm Width, 8 Colors, Staubli 2660 Dobby

Somet, Thema II, 1989, Rapier Dobby Loom, 1900mm and 2100mm Width, 8 Colors, Staubli 2660 Dobby

Description

  1. Overview
    1. Two looms are 1900 mm
    2. One loom is 2100 mm
    3. Loom speed: 450 – 550 ppm
    4. Type of weft insertion: rapier
    5. Number of weft colours: 8

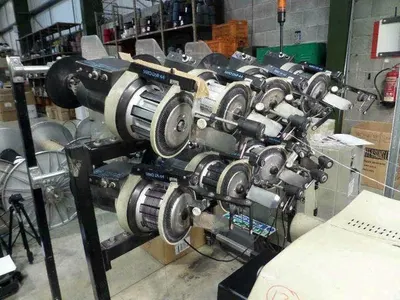

    6. Accumulators: 8

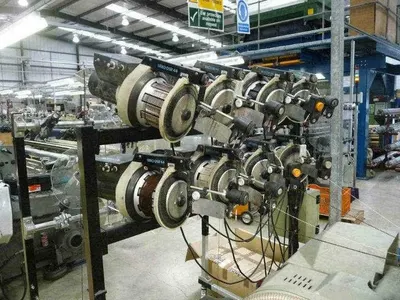

    7. Make and type of accumulators: Siro DRS 44
    8. Cone stand supplied: 1
    9. Waste selvedge bin: 1
  2. Dobby Specifications

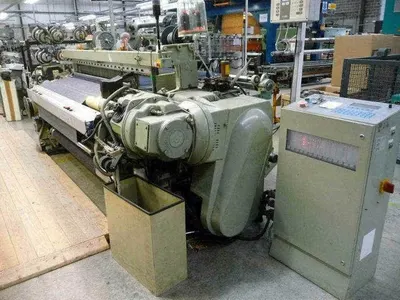

    1. Dobby make and model: Dobby Staubli 2660
    2. Maximum possible shafts: 20
    3. Installed levers: 18 – 20
    4. Installed undermotion: 20
    5. Number of frames supplied: 16 (minimum)
  3. Loom Features
    1. Loom take-up: electrical
    2. Loom let-off: electrical
    3. Number of dropper bars: 4 / 6
    4. Number of warp beams: 1
    5. Number of cloth rollers: 1
    6. Flange diameter: 800 mm
    7. Heald wires per frame: as on loom
    8. Droppers supplied: as on loom
  4. Condition and Included
    1. Spares: none
    2. Power: 7.5 kW / 50 Hz
