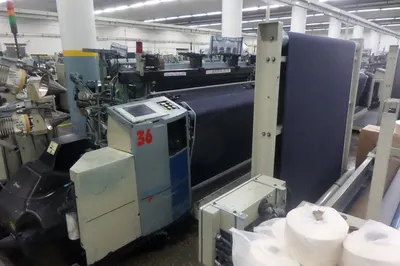

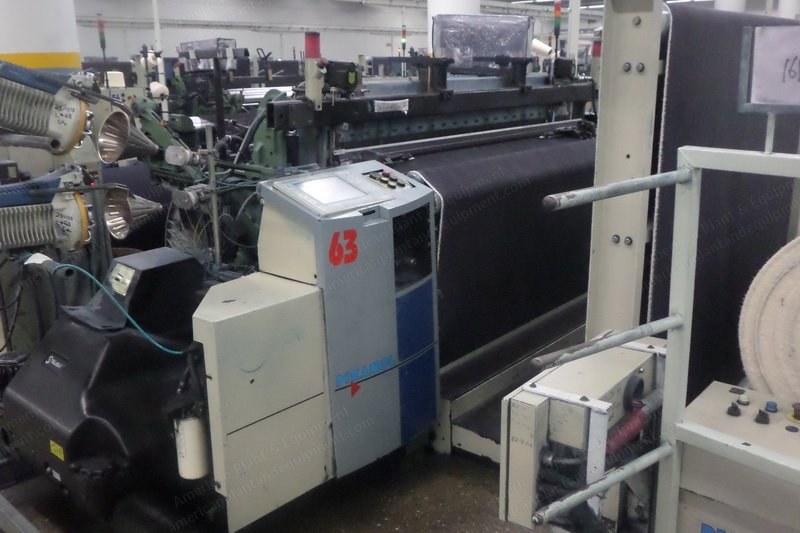

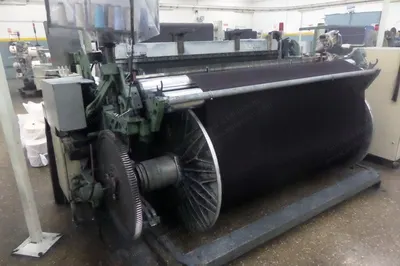

Description Overview Picanol OMP 2-P model, 190 cm, year 2003, reinforced for denim Basic machine Frame with rhs width reduction Monitoring: microprocessor Display: without touch screen and interactive color display Weft Insertion And Color Selection Reed motion: balance slay, driven by conjugated cams, reed holder for profile reed Weft insertion: pneumatic weft insertion by main and relay nozzle Color selection: 2 colors pattern monitored by microprocessor Shedding And Harness Harness drive: with suspension element for 6 harness-drc 30 Shedding motion: positive outside cam motion Staubli type 1661 Warp Stop Motion Electrical Grob type KFW 5600, pitch 25 mm, with 6 serrated electrodes detection each contact row Cloth Take Up And Batching Cloth take up: take up roll coarse metalized, pressure roll felt strip covered, foreseen for adaption of a batching motion with second press roll Take up motion: electronic take up etu Selvedges And Waste Cutter Selvedges: rotary leno split motion With electronically driven independent selvedge device lht and rht (elsy) With horizontal bobbin rack for 12 bobbin rack Electrical waste cutter rhs Temples And Lubrication Temples: standard temple set with adjustable brackets Lubrication: with continuous forced oil circulation system Machine Drive And Speed Machine drive: by sumo voltage 380-460, electronically controlled slow forward and backward motion Max production speed 1000 rpm Power Supply Voltage and frequency: to be specified
