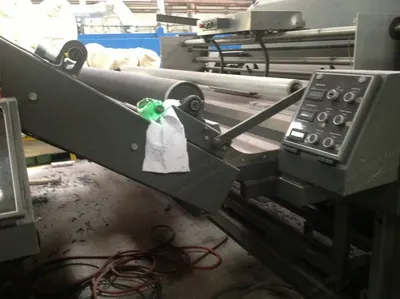

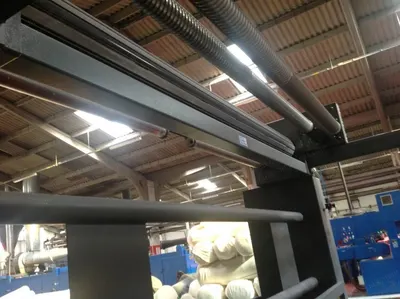

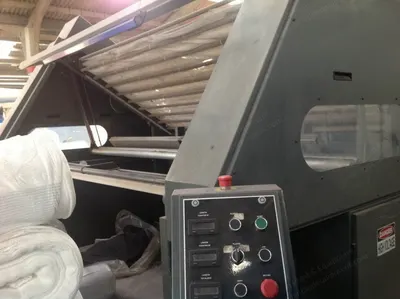

Tubetex, C-2500, 2004, Open Width Compactor, 2600mm Working Width, Icomatex Pin Tenter Entry

Tubetex, C-2500, 2004, Open Width Compactor, 2600mm Working Width, Icomatex Pin Tenter Entry

Description

  1. Overview
    1. Complete pin tenter chain entry and open width compactor line
    2. Manufactured by Icomatex and Tube-Tex, year 2004
  2. Icomatex Pin Tenter Chain Entry
    1. Usable width: 600-2600 mm
    2. Flat stenter frame with vertical circulation of the chain with pins, 6 m length
    3. Entry equipment includes selvedge openers
    4. E+L automatic centerer
    5. E+L entry with overfeeding
    6. Individual chain drive control
    7. Steamer
    8. E+L metal detector

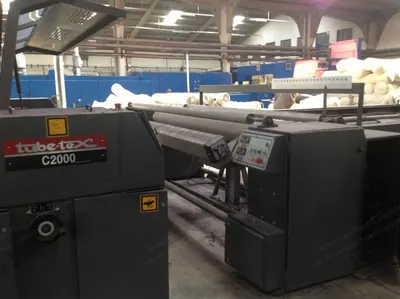

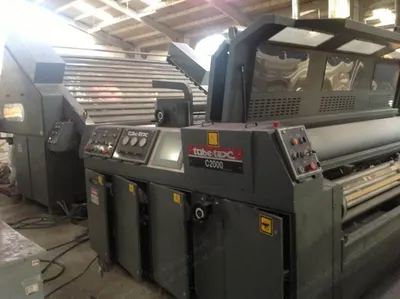

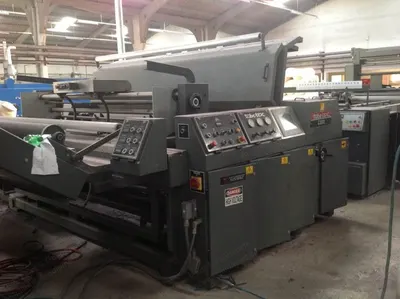

  3. Tube-Tex C-2500 Open Width Compactor
    1. Working width: 100 in
    2. Individual 10 hp AC inverter drives for the feed roll and retard roll
    3. Hot oil heater with internal piping; steam energy is used
    4. Electrical transformer and controls equipped to operate with Icomatex inlet stenter
    5. Herringbone uncurling system with plates prior to compactor feed roll
    6. Pneumatic shoe and retard roll pressure system
    7. Painted guard assembly with T-bar shoe assembly
    8. Bi-lateral slat spreader
    9. Batcher device for rolls: 100 in batcher with auto doff
    10. Folder for plaiter: 100 in rollaway feature, conveyor with droptable and padder arms
