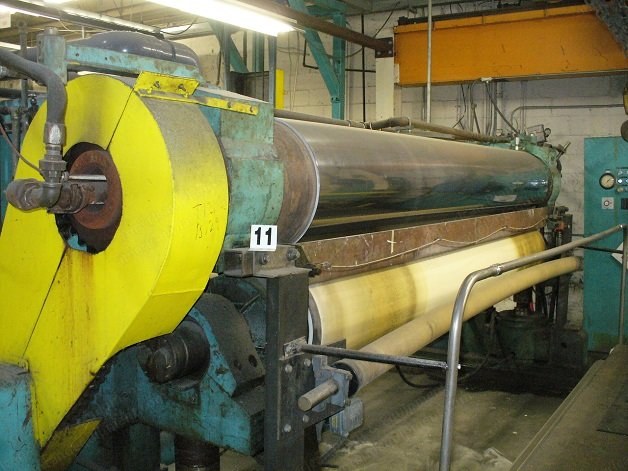

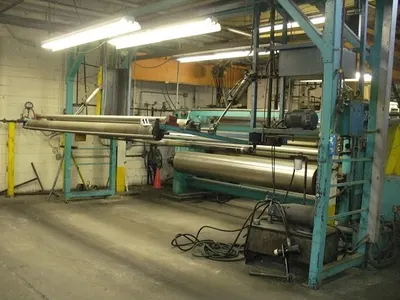

Verduin, 2-Roll Calendering Range, 130 inches (3300mm), 130-Tons, 20 HP

Verduin, 2-Roll Calendering Range, 130 inches (3300mm), 130-Tons, 20 HP

Description

  1. Overview
    1. Calendering range, consisting of the following components.
  2. Feed Section

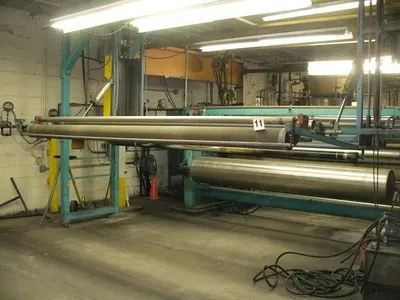

    1. Fed by idling a-frame (no drive).
  3. Operator Platform
    1. Operator platform included.
  4. Calender

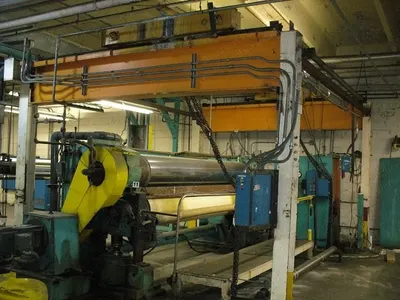

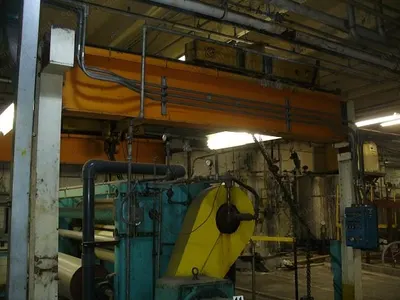

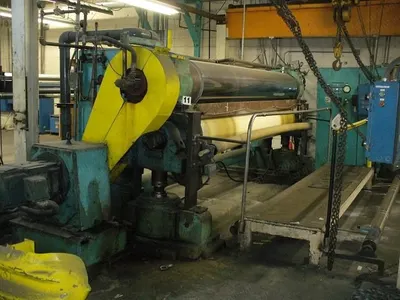

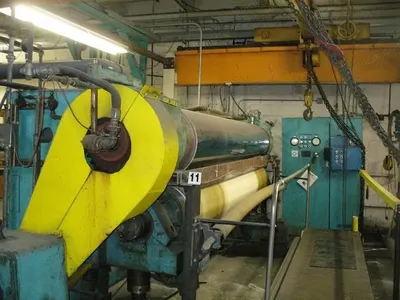

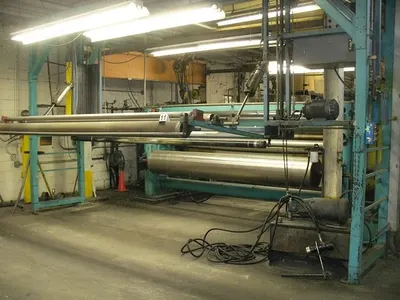

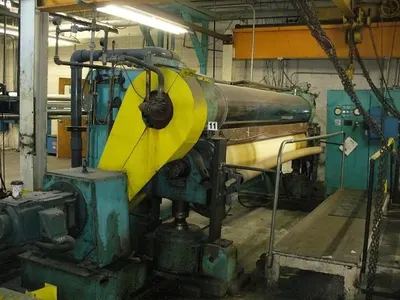

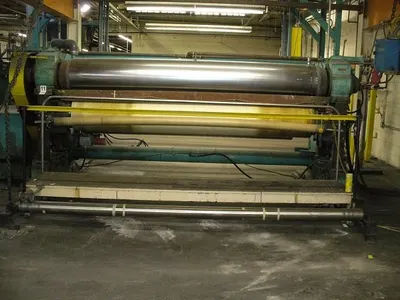

    1. John Verduin 2-roll calender.
    2. 132-inch face width.
    3. 130-tons hydraulic pressure.
    4. C-face arrangement for quick roll change.

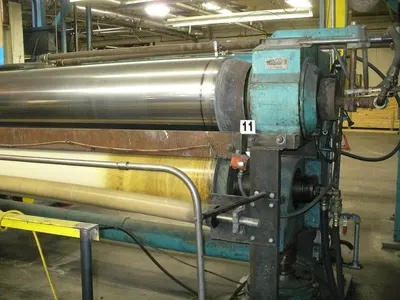

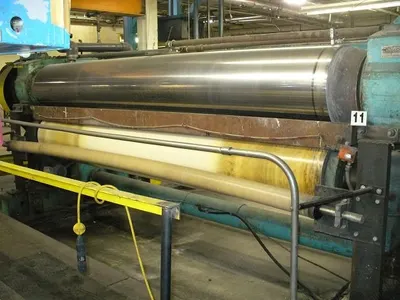

    5. Top roll is 132 inches by 20 inches diameter, chromed-steel with gas burner.
    6. Bottom roll is 132 inches by 18 inches diameter, swimming roll with nylon sleeve hydraulically expanding.

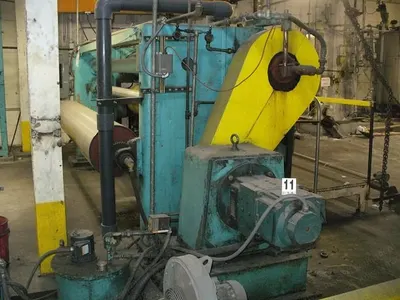

    7. Includes 20-hp 240 volt dc drive.

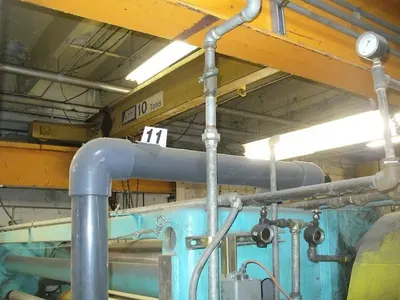

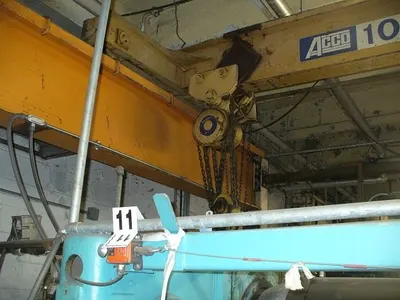

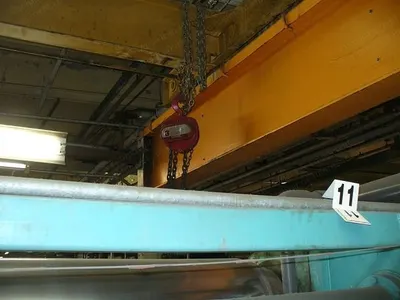

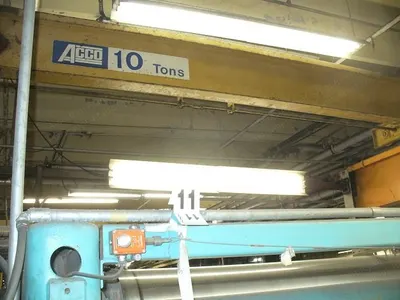

    8. Includes 10-ton crane for removing rolls from machine.
    9. Includes combustion blower.
    10. Includes oil cooler.
  5. Winder
    1. A-frame winder with center drive and lay-on roll.
