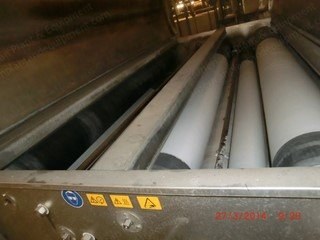

Benninger, Dimensa, 2005, 3200mm Working Width, 3400mm Roller Width, 16 Caustic Feeding Pumps

Benninger, Dimensa, 2005, 3200mm Working Width, 3400mm Roller Width, 16 Caustic Feeding Pumps Sold

Description

  1. Overview
    1. Mercerizing machine
    2. Make: Beninger
    3. Type: Dimensa
    4. Year: 2005
    5. Roller width: 3400 mm
    6. Working width: 3200 mm

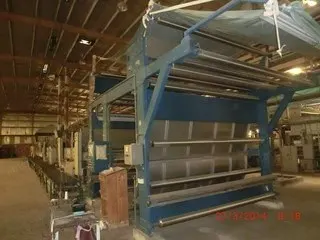

  2. Entry Section
    1. High entry with cloth guider, two sets type E+L 20.20 with J-scray overfeeding entry
    2. First one wet fabric for caustic tank 10 mt entry and after padder first
  3. Stabilizer Unit
    1. No. 1 stabilizer unit: bottom roll 14, top side hollow roller pad squeezer
  4. Tenter Frame
    1. No. 2 entry tenter frame clip chain, make Bruckner, length of chain 7 mt
    2. Complete caustic circulating system dosed by pump mono block by SS
  5. Impregnator and Drive Rolls
    1. No. 3 after tenter chain pad exhaust start by impregnator
    2. No. 4: 13 bottom drive roll and 12 hollow tube top side

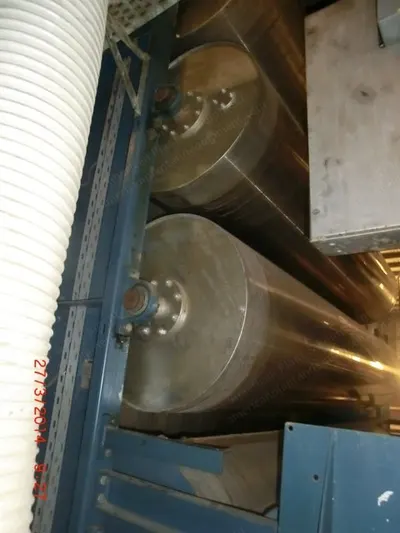

  6. Wash Boxes and Dryer

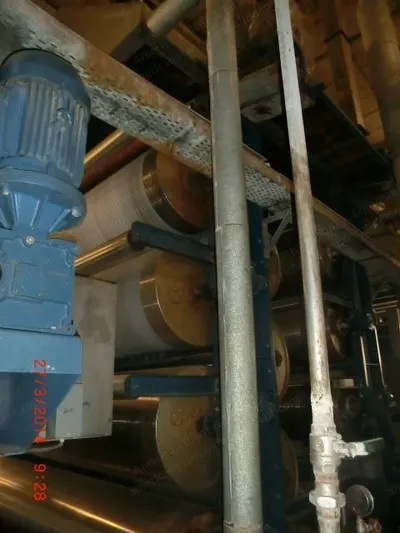

    1. No. 5 hot wash: four wash box and pad squeezer cylinder dryer, two stacks each stand 8 cylinder
  7. Rotary Filter
    1. No. 6 rotary filter with wash box

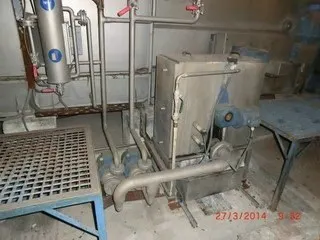

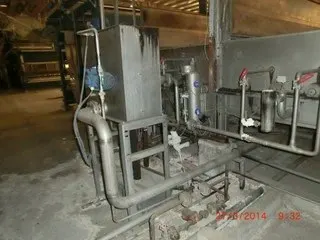

  8. Caustic Feeding Pump
    1. No. 7 caustic feeding pump SS, quantity number of 16 total on the machine

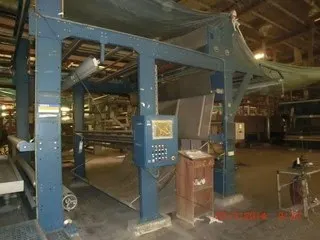

  9. Exit Section
    1. No. 8 after cylinder dryer J-scray cloth guider exit side and batcher
  10. Control System
    1. No. 9 all energy sources by mercerizing machine: steam, water, and air
    2. Total control by air numeric valve and flow counting
    3. Miter design and erected by Beninger engineers
