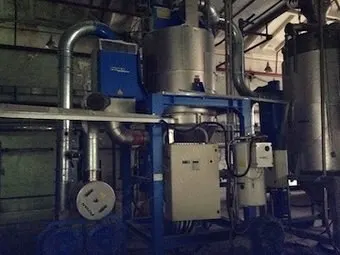

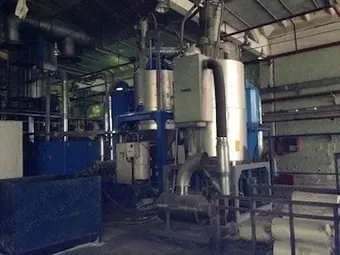

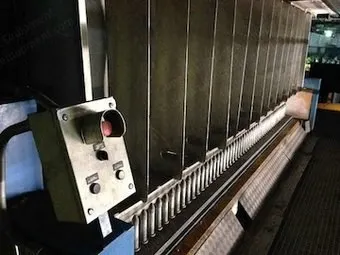

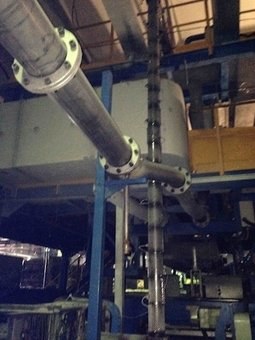

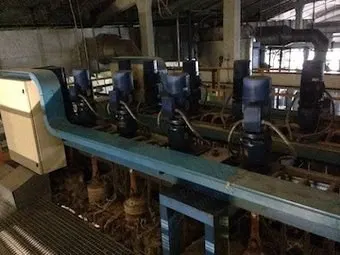

Description Overview Complete Meccaniche Moderne spunbond line 2003 year 4500 mm width Fabric weight range: 110 g/m² – 500 g/m² Actual speed: 4 m/min – 40 m/min Raw material – PET Capacity – 1000 kg/h Spinning Section 2 spin beams 8 dosing pumps per beam 8 quench cabinets per beam 28 spinnerettes per beam 1 apron transport Average filament: 3 – 6 dn Fiber cooling: 285,000 kcal/h power, 330 kW equivalent Needle Punch Machines 2 needle punch machines – 4.6 m width 2000 punches/min 30 mm max length travel 1st preneedling machine, 1 board downstroke, 5000 needles/m board width 2nd needling machine, 2 board upstroke, 5000 needles/m board width Thermo Oil Calendar Thermo oil calendar – 4.6 m width Needled rings for passive drive 1895 mm roll diameter 100 – 300 g/m² surface unit weight 30 m/min production rate 1700 kg/h production 220°C drying temperature 600 kW power consumption Take Up Winder Take up winder 60 – 500 g/m² 1600 mm roll diameter max 1400 kg max roll weight 40 m/min max speed Crystallizer 2000 liters working capacity 1.5 h storage time 2 m³/h for kg/h 140 – 150°C working temperature Dryer 7500 liters working capacity 5-6 h storage time 3.2 m³/h for kg/h specific air flow 160 – 180°C working temperature < -50°C air dew point Extruder Productive capacity of extruder: 250 kg/h min – 1200 kg/h max Compressed Air Consumption For service: 120 hm³/h flow rate, 5-6 bars pressure, 10 – 30°C working temperature, 20 mg/h for m³ max oil content For jets: 3.6 absolute pressure, 35°C max working temperature, oil free quality, -20°C dew point For jets (alternate): 4900 hm³/h average supply in typical working conditions Water Consumption 30 m³/h average in typical working conditions 4 – 5 bar pressure -25°C max working temperature -33° max total hardness Power 3 phase/50 freq/400 V + 10% 110 V additional
