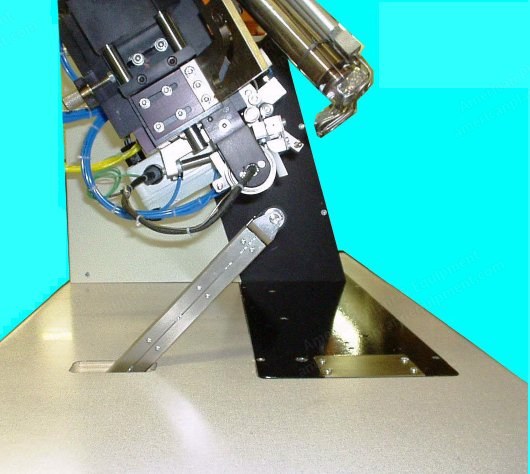

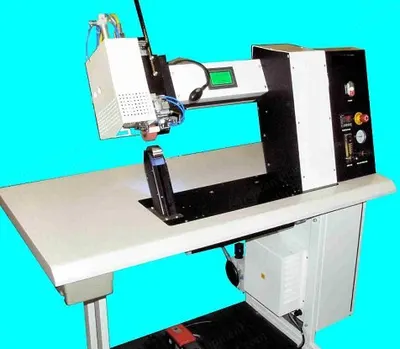

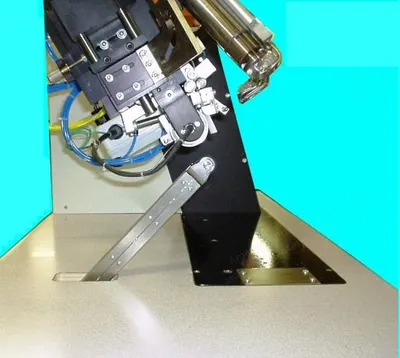

NovaStar, MK901, Seam Sealing Machine, Heat Sealing, 11m/min Max Speed, Touch Screen HMI

NovaStar, MK901, Seam Sealing Machine, Heat Sealing, 11m/min Max Speed, Touch Screen HMI

Description

  1. Overview
    1. Designed to provide ease of operation, consistency and quality with a range of attachments to provide extra versatility.
    2. The differential drive allows the machine to compensate for soft, stretch or difficult fabrics.
    3. Energy efficient.
    4. Incorporates an automatic energy saving system that turns off the heater then, after the heater has cooled, turns the machine and the air supply to the heater off, thus saving power and compressed air.
  2. Specifications
    1. Maximum speed is around 11 m/min but the operators would never keep up at that sort of speed.
    2. Feed speed depends on the type of fabric being taped and how difficult a seam it is to tape, so typically speeds are set between 2 m and 4 m/min.
    3. In some instances they may run at 6 m/min but never much above that.
    4. Electrical supply: 230 ± 10% volt ac single phase 15 amp at 50 hertz.
    5. Pneumatic supply: 7 bar at 100 litres per minute.
  3. Control System
    1. The control system has been upgraded yet retains the temperature and air supply feedback systems, i.e. if the temperature is not within range the machine will not operate or if there is a failure in the air supply the heater will shut down and a warning will be placed on the HMI display.
    2. The new HMI is a touch screen and this has made adjustments to settings easier, quicker and simpler.
  4. Standard Equipment
    1. Automatic scissors to cut the tape at the end of a seam by means of an auxiliary foot pedal.
    2. This foot pedal can also be used to inch forward the tape feeding mechanism.
    3. Dual speed knee press: this allows the operator to decrease the speed when sealing cross-over seams on 3-layer materials and does not interrupt the manufacturing process as it reduces or eliminates the need to hot stamp these areas separately.
    4. Slack feed tape device: enables free tape feed, to reduce puckering and creasing.
  5. Optional Extras
    1. Heated top roller used for delicate fabrics.
    2. Retro reflective conversion kit: this special kit can be attached to the machine for welding 50 mm retro reflective tape onto PVC and transfer coated fabrics, eliminating stitching.
    3. Horizontal heater assembly for welding PVC and transfer coated polyurethanes.
    4. Custom-made guides: special guides can be attached to the machine for use with welding hemming, overlap, and tube welding seams.
    5. Slim quill: this attachment enables the operator to seal tight curves on shoes and mittens etc.
  6. Applications
    1. Outerwear, rucksacks, tents, balloons, car seat covers, components, protective wear, clean room garments, medical industry, filter bags.
  7. Dimensions and Weight
    1. Dimensions: 1350 mm x 740 mm x 1580 mm.
    2. Gross weight: 251 kg.
