NovaStar, SD118, Ultrafine Roller Mill, 9-22 t/h Capacity, 132 kW Main Motor (New)

NovaStar, SD118, Ultrafine Roller Mill, 9-22 t/h Capacity, 132 kW Main Motor

Description

  1. Overview
    1. Raw material size: 0–220 mm
    2. Final powder fineness: 80–325 mesh
    3. Model: SD118
    4. Roller number: 5 pcs
    5. Roller size (L x H): 440 mm x 270 mm
    6. Fineness of product: 1.6–0.045 mm (fineness 0.038 mm)
    7. Maximum feed size: 35 mm
    8. Main shaft speed: 82 r/min
    9. Capacity: 9–22 t/h
    10. Total weight: 26 t
    11. Overall dimension: 12550 mm x 570 mm x 8355 mm

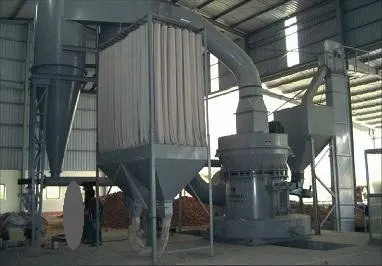

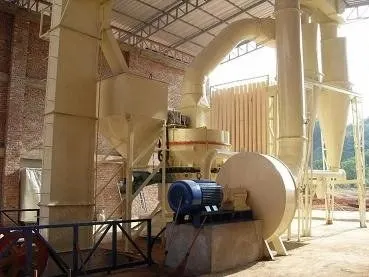

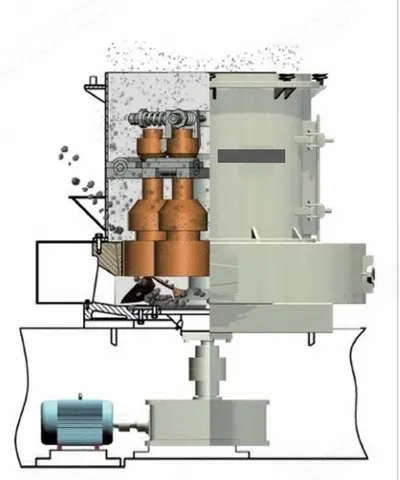

  2. Main Components And Inner Structure
    1. Jaw crusher model PE250×750, power 22 kW, quantity 1 set
    2. Bucket elevator and hopper model D300×10M, power 4 kW, quantity 1 set
    3. Vibrating feeder model GZ3F, power 0.2 kW, quantity 1 set

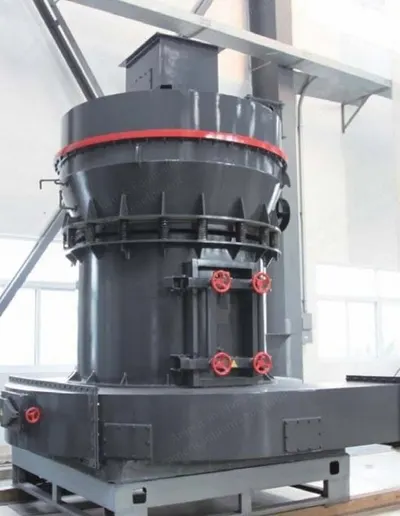

    4. SD118 mill main unit, power 132 kW, quantity 1 set
    5. Blower, power 132 kW
    6. Classifier, power 18.5 kW
    7. Cyclone collector, power 0 kW
    8. Bag filter, power 0 kW
    9. Reducer, power 0 kW
    10. Pipes, power 0 kW
    11. Control cabinet, total power 308.7 kW
  3. Advantages
    1. Optimized design of roller and ring
    2. Adoption of high pressure spring
    3. Flex joint between classifier and main unit; reduction of noise and vibration
    4. Classifier blade of high density
    5. Convenient blade adjustment design
    6. High efficiency blower design
  4. Spare Parts Included

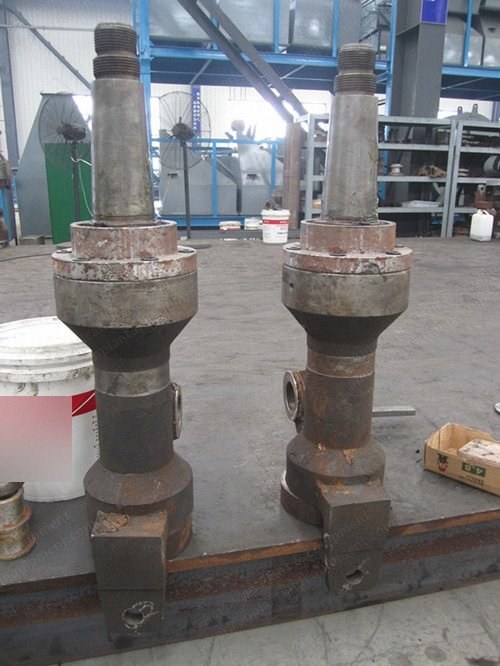

    1. Roller: 6 pcs (6 pcs/set)

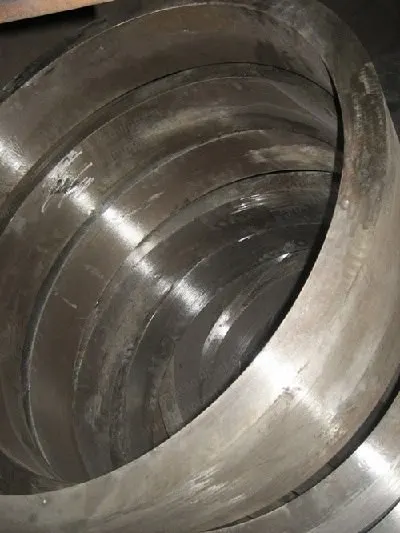

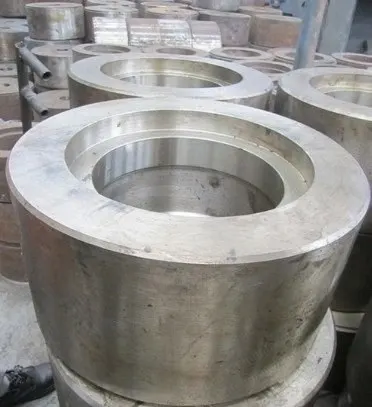

    2. Ring: 1 pc (1 pc/set)
    3. Shovel: 6 pcs (6 pcs/set)
    4. Shovel base: 6 pcs (6 pcs/set)
    5. Rubber sleeve: 12 pcs (12 pcs/set)
  5. Motor Parameters
    1. Main motor model Y315M1-4, power 132 kW, speed 1480 r/min
    2. Speed adjustable motor of classifier model YCT250-4A, power 18.5 kW, speed 132–1320 r/min
    3. Motor of elevator model Y112M-4, power 4 kW, speed 1430 r/min
    4. Motor of blower model Y315M-4, power 132 kW, speed 1480 r/min
    5. Motor of jaw crusher model Y200L2-6, power 22 kW
    6. Magnetic vibration feeder model GZ3F, power 0.2 kW
