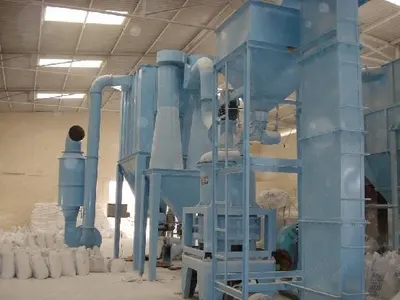

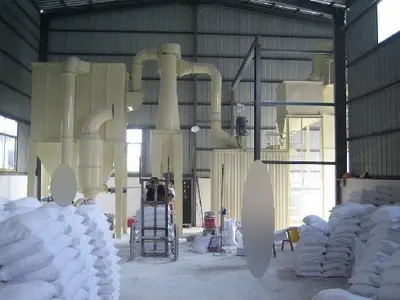

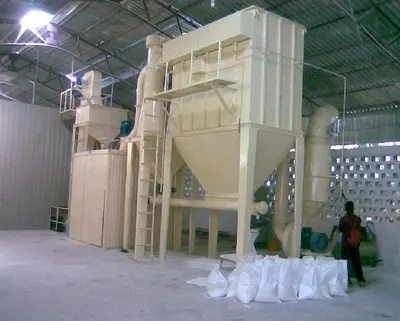

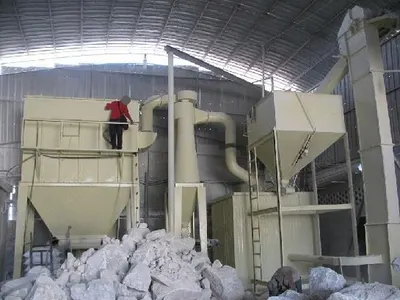

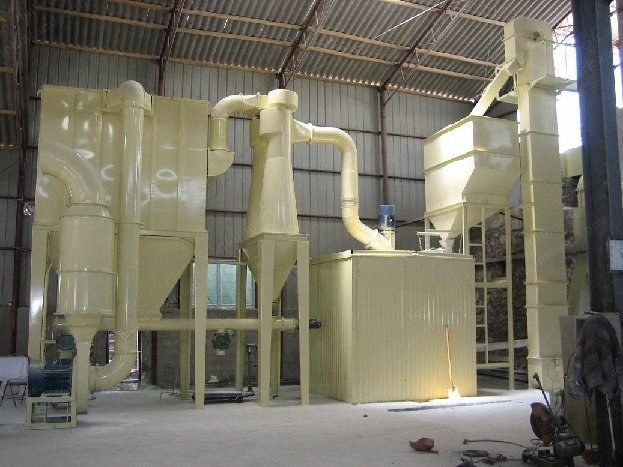

NovaStar, SD119, Ultrafine Mill, 325-2500 Mesh, 0.4-7.5 t/h Capacity (New)

NovaStar, SD119, Ultrafine Mill, 325-2500 Mesh, 0.4-7.5 t/h Capacity

Description

  1. Overview
    1. Raw material feed size: 0-220 mm
    2. Final powder fineness: 325-2500 mesh
  2. Advantages
    1. Independent mill reducer – steel housing contains high efficiency gearing designed for extended service life
    2. Noise reduction – mill is completely contained within a sound enclosure and vented process gas discharges through a silencer
    3. Product collector – pulse bag filter and cyclone collector is specially designed for ultrafine material handling
    4. System control – variable speed control for turbine classifier and fan volume provides maximum flexibility
    5. Convenient blade adjustment design

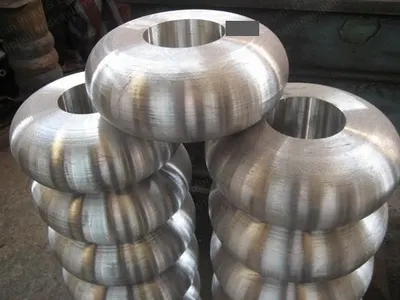

    6. Ring and roller – high quality grinding media made of 60Si2Mn
  3. Technical Specifications
    1. Model: SD119
    2. Roller number: 24 pcs
    3. Ring diameter: Ф900 mm
    4. Fineness of product: 325-2500 mesh
    5. Maximum feed size: 20 mm
    6. Main shaft speed: 200-220 r/min
    7. Capacity: 0.4-7.5 t/h
  4. Motor Parameters
    1. Main motor – model YB2-280M-8, power 45x2 kW
    2. Classifier motor – model Y180L-4, power 22 kW
    3. Motor of elevator – model YB2-112M-4, power 4 kW
    4. Motor of blower – model Y250M-2, power 55 kW
    5. Motor of hammer crusher – model YB2-180M-4, power 18.5 kW
    6. Magnetic vibration feeder – model GZ1F, power 0.06 kW
    7. Discharge valve – model ZJD200, power 0.75x2 kW
    8. Pulse filter – model DMC184-II, power 15 kW
  5. Main Equipment
    1. Hammer crusher – model PC600*400, power 18.5 kW, quantity 1 set
    2. Bucket elevator and hopper (optional) – model D200x8M, power 4 kW, quantity 1 set
    3. Vibrating feeder (optional) – model GZ1F, power 0.06 kW, quantity 1 set
    4. SD119 mill – main unit, blower, classifier, cyclone collector, bag filter, reducer, control cabinet, pipes – model special for SD119, power 167 kW, quantity 1 set
