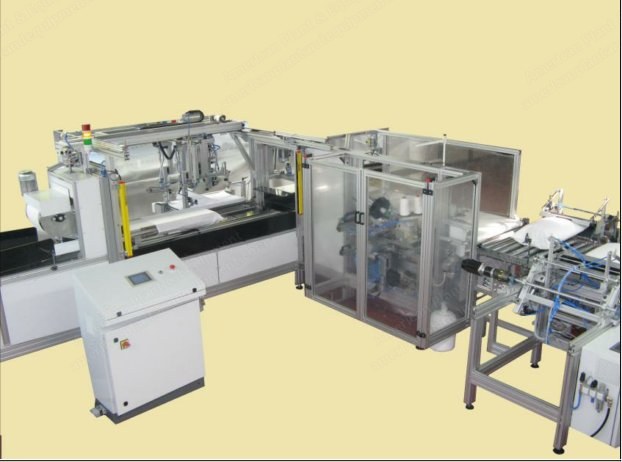

Brighi, Complete Pillow Sewing, Filling and Packing Line, Fully Automated, 8 to 10 Pillows/Min

Brighi, Complete Pillow Sewing, Filling and Packing Line, Fully Automated, 8 to 10 Pillows/Min

Description

  1. Automatic Robotized Pillow Filling Line
    1. Produces pillows of any sizes.
    2. Uses several kinds of fiber.
    3. Can use different cover material (cotton, polyester, non woven).
    4. Performance: 8 to 10 pillows per minute.
  2. Line Composition
    1. Electronic stuffing machine.
    2. Twin belt conveyors.
    3. Automatic fiber supply detection.
    4. Providing the funneling of the material web to be transferred into the pillow case automatically.
    5. Robotic system for the collection of the pillow case from the lateral stack box.
    6. The system takes the place of the operator assuring a perfect alignment and positioning of the pillow case.
    7. Robotic system to control the pillow case tension during the transfer of the pillow to the sewing zone.
    8. Automatic overlock sewing system.
    9. 3 or 4 yarns.
    10. Closes the open side of the pillow.
    11. Automatic labelling device.
    12. Taking the label from the roll and inserting it into the seam very quickly.
    13. Robotic system engineered to shake the pillow for uniform look and fiber distribution.
  3. Dimensions
    1. Cushions dimensions: length from 420 to 500 mm (almost 20"), width from 420 to 500 mm (almost 20").
    2. Sleeping pillows dimensions: length from 600 to 900 mm (almost 36"), width from 420 to 500 mm (up to almost 20"), adjustable.
  4. Line Performances
    1. Semiautomatic operation: up to 6/7 pillows/minute (there are two options).
    2. Fully automatic operation: up to 5/6 pillows/minute (robotized).
  5. Automatic Bagging Line - Without Leaflet Insertion
    1. This is an automatic line complete with robotic machines specifically for filling pillows and cushions into plastic bags with press and welding system with bagged cushions automatic output.
  6. Bagging Line Composition
    1. Robotic filling machine - equipped with up line flowing system and special twin belt conveyor, to detect automatically the supply of cushions and pillows, providing the constriction of the material to be transferred into the plastic bags.
    2. Robotic group - equipped with special device for bag opening and feeding to the packing line automatic press and welding system complete of automatic device to check bag lineup and transfer to the welding.
    3. It is equipped with belt conveyor for the automatic output of the packs.
    4. Control box with digital keyword to enter the working parameter.
  7. Bagging Line Specifications
    1. Expected production: 6/7 standard pieces per minute.
    2. Minimum and maximum size of product: width min. 430 to max 600 mm, length min. 430 to max 1500 mm.
    3. Does not include robots for leaflets.
