NovaStar, FP211, Fiber Feeder System, 1000mm Opener Width, 400 kg/h Capacity, Siemens PLC (New)

Description

Overview

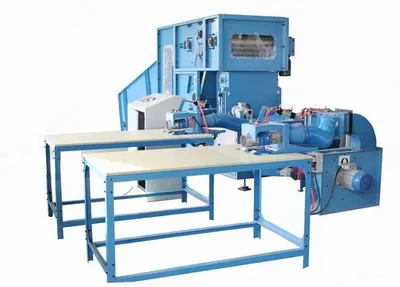

1. This production line is mainly used for pillow filling, cushion and chairpad filling.
2. It can be operated by two operators, adjusted by foot switches, and controlled by Siemens PLC.
Suitable Raw Materials
1. Conjugate hollow siliconized polyester fiber ≤ 100 mm
2. Hollow siliconized polyester fiber ≤ 100 mm
3. Microfiber 0.7 D to 3 D, length 32 mm to 64 mm
4. Fire proof fiber
Specifications
1. Opener width: 1000 mm
2. Opener capacity: 400 kg/h
3. Fiber opening rate: max. 100%
4. Control system: Siemens PLC
5. Operator needed: 2
6. Total power: 22.05 kW
7. Control system: 24 V
8. Width of bale breaker: 1200 mm
9. Filling capacity: 8 pcs/min up
10. Air pressure: 0.8 MPa
11. Production line dimensions: (L) 9824 mm × 2417 mm × 2400 mm
12. Total weight of production line: 3840 mm
Consist Of

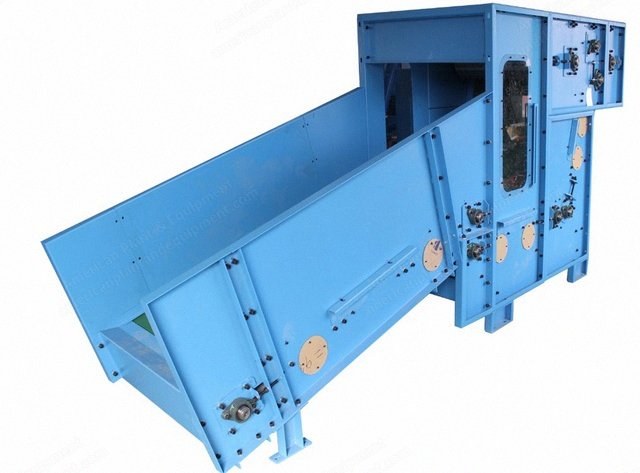

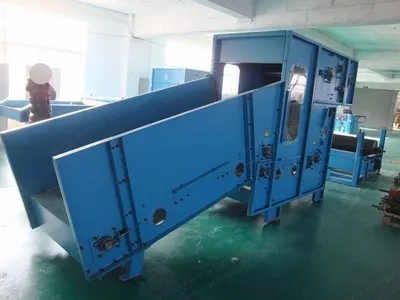

1. Bale Breaker
  1. Load one to two bales of raw material each time; no need operator
  2. Working width: 1200 mm
2. Fiber Opener
  1. Can open both microfiber and normal fiber
  2. 100% opening rate
  3. Working width: 1000 mm
3. Mini Pillow Blower
  1. Aluminum blades; no noise and vibration
