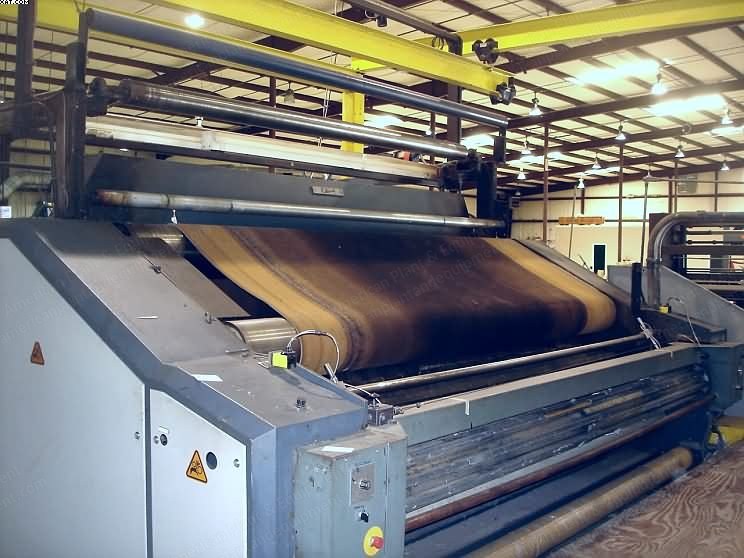

Klieverik, TC131, 1995, 126" Belt, 30" Drum Diameter, Nomex Blanket

Klieverik, TC131, 1995, 126" Belt, 30" Drum Diameter, Nomex Blanket

Description

  1. Overview
    1. Klieverik transfer printing calender
    2. Model TC131
    3. Year 1995
    4. 126" belt
    5. This machine employs a vapor phase process to transfer dyestuff from the paper to the cloth under the influence of heat and pressure
  2. Specifications
    1. 30" diameter x 138" face cylinder with 126" blanket (Nomex)

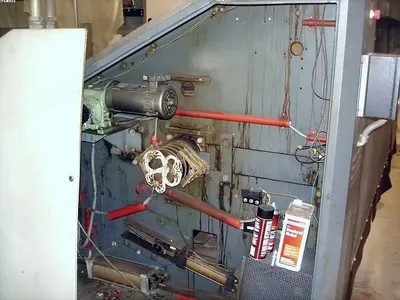

    2. Onboard enclosed heating system
    3. Calender drum is heated by electrical elements placed in an oil bath
    4. Diameter of transfer paper roll: 14"
    5. Machine speed: minimum 2 meters/minute, maximum 20 meters per minute
    6. Maximum drum temperature: 220°C (464°F)
    7. Diameter of heated drum: 760 mm (30.4")
    8. Blanket width: 3500 mm (140")
    9. Operating speed: 2-20 mtr/min
  3. Dimensions and Weight
    1. Overall dimensions of calender: 112.6" length x 182.4" width x 89" height
    2. Weight: 7,400 kg (16,314 lbs)
  4. Included Components

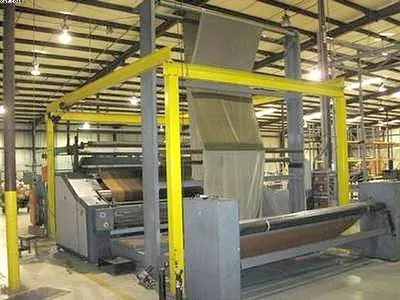

    1. Scray, high entry with E&L KF-2040 guider
    2. Operator platform
    3. E&L width monitor
    4. 4-roll accumulator 136" with 12 yd capacity

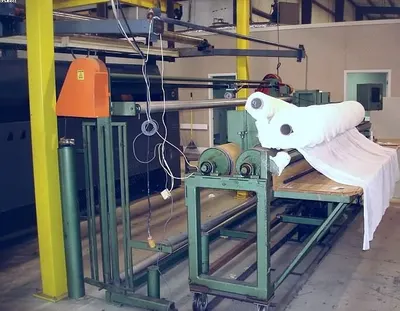

    5. 2-roll surface take-up with edge guiding and yardage counters
